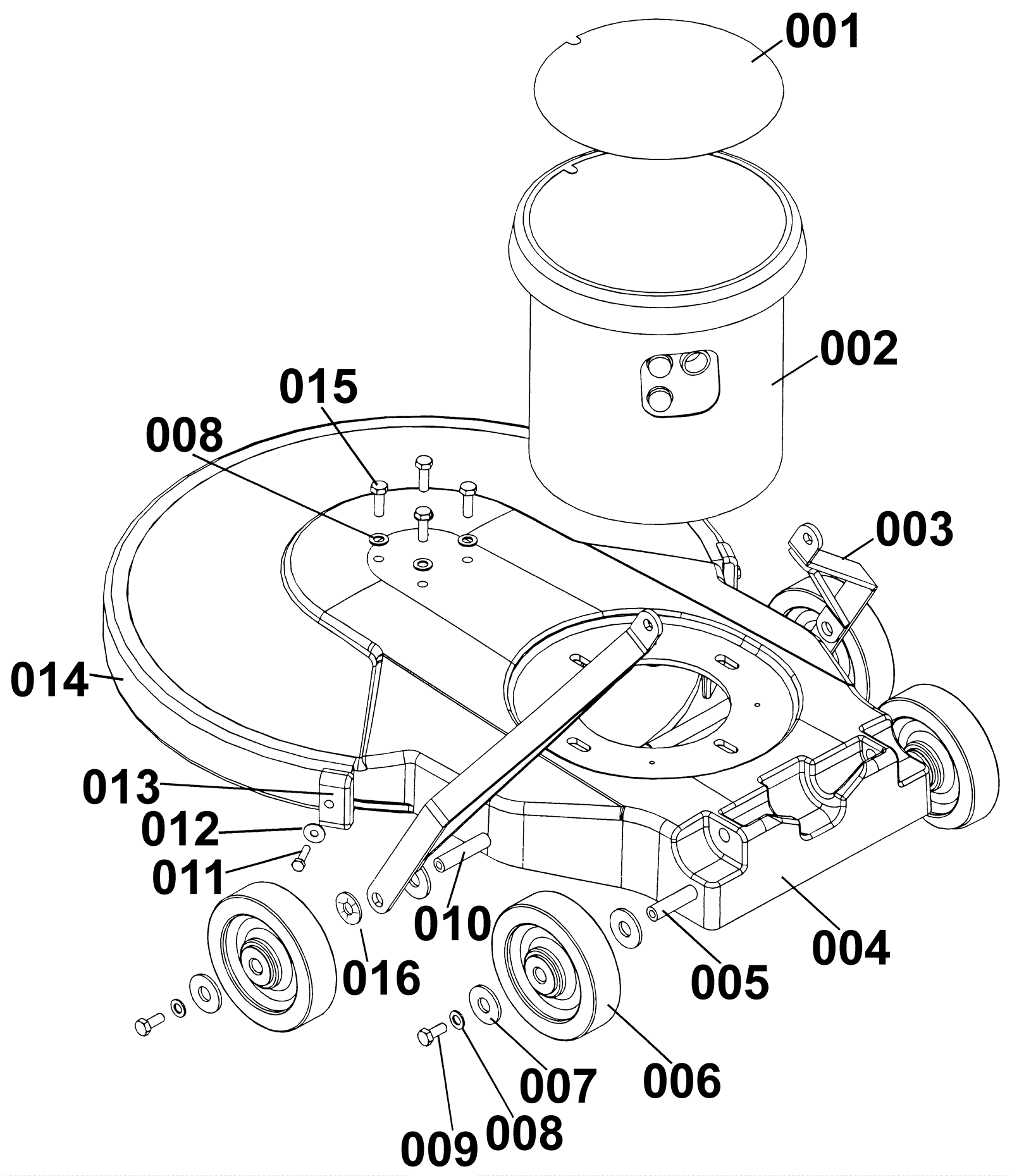

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-7062
|
Main label |
1 |
|
|
002 |
173-7433
|
115V 1.5HP 3000RPM motor |
1 |
|
|
003 |
173-4759
|
Handle link bracket |
2 |
|
|
004 |
173-4760
|
20 inch burnisher deck (blue) |
1 |
|
|
005 |
173-2829
|
Main axle (OBSOLETE) |
1 |
|
|
006 |
173-4664
|
Wheel (gray) |
4 |
|
|
007 |
999-0972
|
Washer M14 flat |
8 |
|
|
008 |
999-0716
|
Washer 3/8 x 1 1/4 fender |
8 |
|
|
009 |
999-0972
|
Washer M14 flat |
4 |
|
|
010 |
173-1426
|
gasket |
1 |
|
|
013 |
173-2836
|
Fixing ram protection |
2 |
|
|
014 |
173-4761
|
44.30 inch extrusion bumper |
1 |
|
|
015 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
4 |
|
|
016 |
173-2834
|
Nut 1/2 flat push |
2 |
|
|
