MERIT 1500 MB1500 Handle Assembly

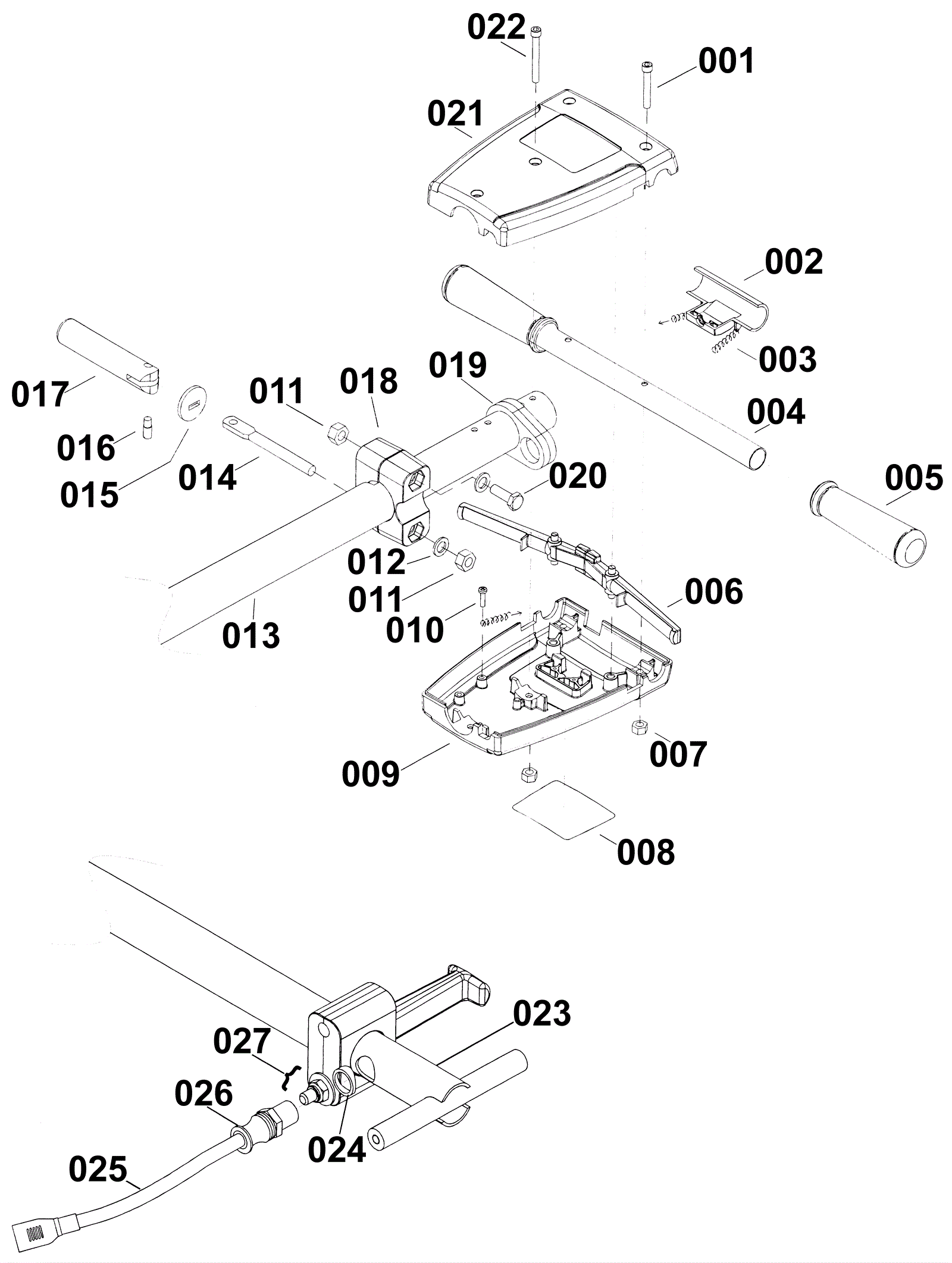

#PartDescriptionPriceReqNotesAvailability
001 999-1336 Screw M6-1 x 45mm socket head $0.99 2 ships same day
002 173-4689 Safety handle lock $20.35 1 usually ships 7-19 days
003 173-4699 Spring $17.82 2 usually ships 7-19 days
004 173-4700 Handle grip tube $37.07 1 usually ships 7-19 days
005 173-0371 Handle grip $12.56 2 usually ships 7-19 days
006 173-4690 Switch lever $19.58 2 usually ships 7-19 days
008 173-4692 Warning decal $11.11 1 usually ships 7-19 days
009 173-4687 Rear handle housing $66.00 1 usually ships 7-19 days
010 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.00 2 ships same day
011 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
012 173-2548 Washer M10 x 30mm plated $3.70 3 ships same day
013 173-7059 Handle tube assembly $327.80 1 usually ships 7-19 days
014 173-4694 Handle adjustment rod $4.95 1 ships same day
015 173-4701 Bearing washer (OBSOLETE) $2.12 1 usually ships 7-19 days
016 173-4693 Pivot pin $4.36 1 usually ships 7-19 days
017 173-4685 Handle adjustment bar $59.95 1 usually ships 7-19 days
018 173-4686 Handle mounting block $45.76 1 usually ships 7-19 days
019 173-4702 Handle bumper $5.20 2 usually ships 1-5 days
020 173-4698 Screw M10 x 75mm hex head pleated $13.86 1 usually ships 7-19 days
021 173-4688 Front handle housing (OBSOLETE) $57.20 1 usually ships 7-19 days
022 999-1337 Screw M6 x 50mm socket head $0.99 2 ships same day
023 173-7060 Burnisher handle $124.30 1 usually ships 1-5 days
024 173-2846 Spacer $4.36 1 usually ships 7-19 days
025 173-7058 Sheathing $51.70 1 usually ships 7-19 days
026 173-2845 Strain relief $20.35 1 usually ships 7-19 days
027a 999-1408 Screw M10-1.5 x 90mm hex head stainless steel $4.29 1 ships same day
027b 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
027c 173-2548 Washer M10 x 30mm plated $3.70 3 ships same day
