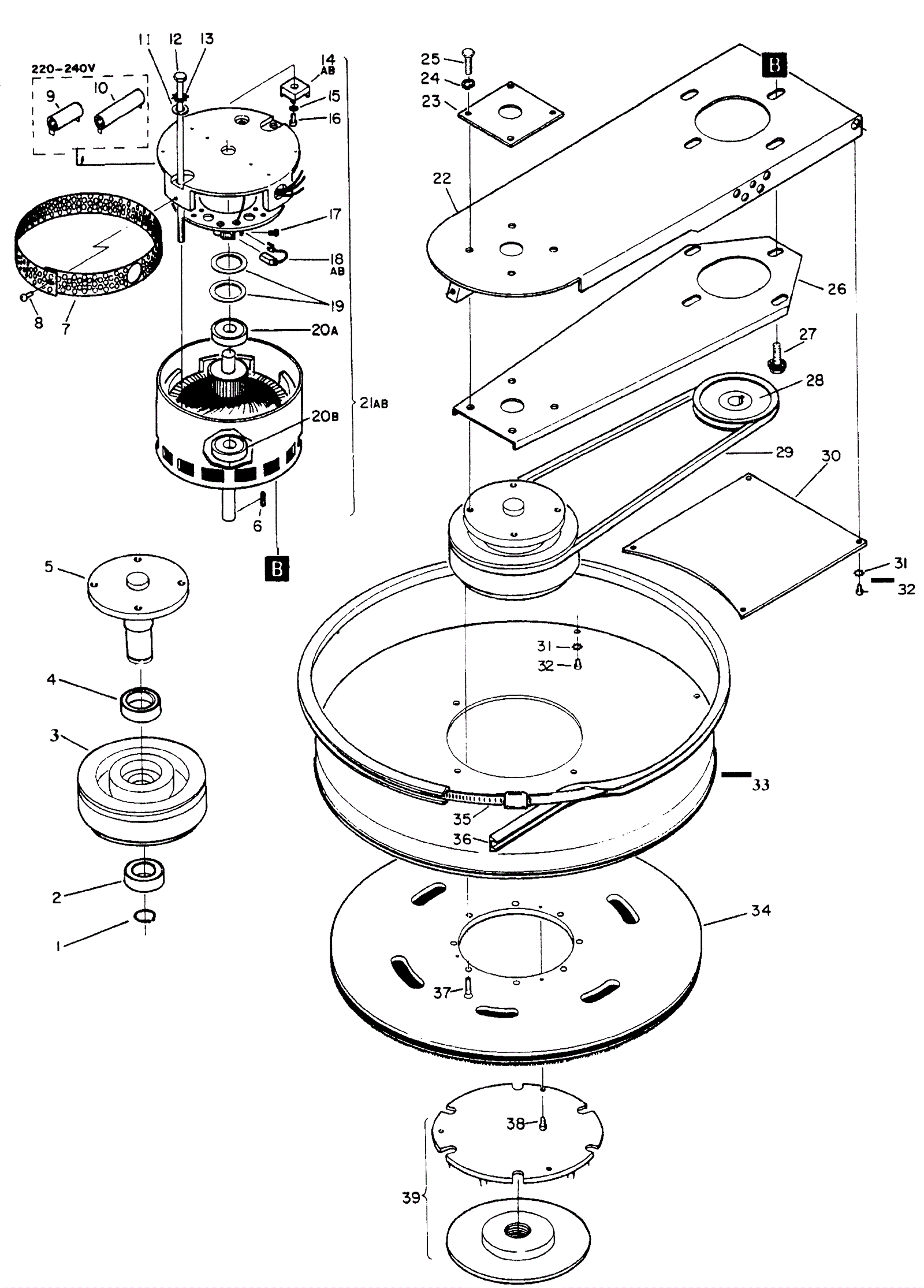

| # | Part | Description |
Req | Notes | Availability |
|---|
01 |
173-0221
|
25amp fuse |
|
|
|
02 |
173-0923
|
Spring (OBSOLETE) |
|
|
|
03 |
173-2834
|
Nut 1/2 flat push |
|
|
|
04 |
173-2836
|
Fixing ram protection |
|
|
|
05 |
173-2868
|
Fuse holder |
|
|
|
06 |
173-2869
|
Sealed ball bearing |
|
|
|
08 |
173-4664
|
Wheel (gray) |
|
|
|
09 |
173-4678
|
50amp bridge rectifier |
|
|
|
10 |
173-4685
|
Handle adjustment bar |
|
|
|
11 |
173-4693
|
Pivot pin |
|
|
|
12 |
173-4694
|
Handle adjustment rod |
|
|
|
13 |
173-4699
|
Spring |
|
|
|
14 |
173-4701
|
Bearing washer (OBSOLETE) |
|
|
|
15 |
173-4745
|
38 inch drive belt |
|
|
|
16 |
173-4748
|
External snap ring (OBSOLETE) |
|
|
|
17 |
173-4750
|
Bearing |
|
|
|
18 |
173-4751
|
Bearing cover (OBSOLETE) |
|
|
|
19 |
173-4752
|
20 inch flex pad driver |
|
|
|
20 |
173-4756
|
Bearing |
|
|
|
21 |
173-4759
|
Handle link bracket |
|
|
|
22 |
173-4761
|
44.30 inch extrusion bumper |
|
|
|
23 |
173-4766
|
Circuit breaker 25 amp (OBSOLETE) |
|
|
|
24 |
273-1089
|
Carbon brush (pkg of 4) (OBSOLETE) |
|
|
|
25a |
991-2202
|
Big mouth pad holder set (blue) |
|
|
|
25b |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
|
(NO-OEM) |
|
25c |
991-2205
|
Deep lock ring and pad grip ring |
|
(NO-OEM) |
|
25d |
991-2214
|
Center-Lok II pad holder - left hand thread (red) |
|
(NO-OEM) |
|
26 |
999-0972
|
Washer M14 flat |
|
|
|
