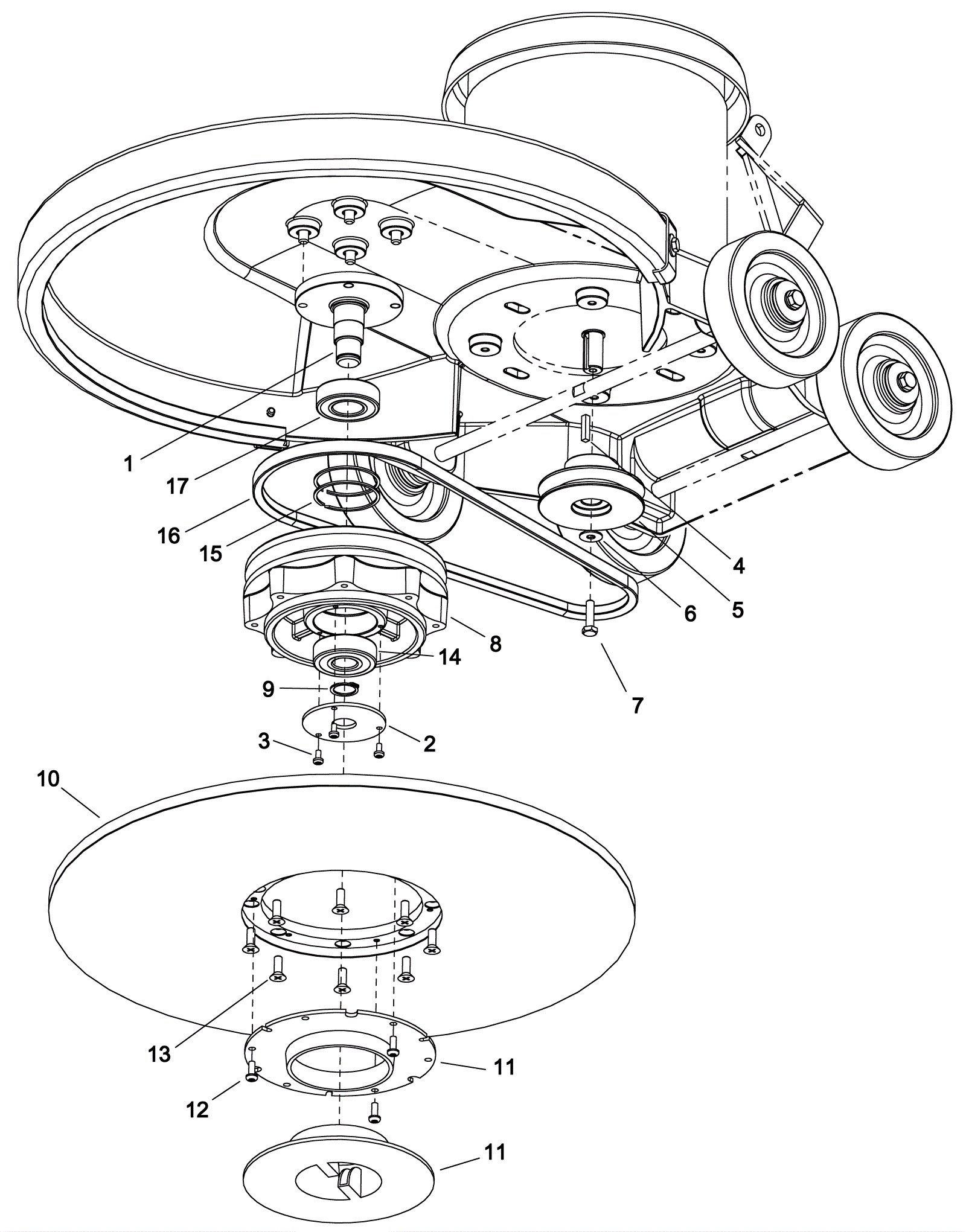

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4757
|
Pad driver axle |
1 |
|
|
2 |
173-4751
|
Bearing cover (OBSOLETE) |
1 |
|
|
3 |
173-4749
|
Screw M4-.7 x 8mm pan head phillips |
3 |
|
|
4 |
173-1856
|
Square keyway |
1 |
|
|
5 |
173-4742
|
Pulley |
1 |
|
|
6 |
173-4743
|
Washer M6 pleated |
1 |
|
|
7 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
1 |
|
|
8 |
173-4747
|
Burnisher pulley |
1 |
|
|
9 |
173-4748
|
External snap ring (OBSOLETE) |
1 |
|
|
10 |
173-4752
|
20 inch flex pad driver |
1 |
|
|
11a |
991-2202
|
Big mouth pad holder set (blue) |
1 |
|
|
11b |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
1 |
(NON-OEM) |
|
11c |
991-2205
|
Deep lock ring and pad grip ring |
1 |
(NON-OEM) |
|
11d |
991-2214
|
Center-Lok II pad holder - left hand thread (red) |
1 |
(NON-OEM) |
|
12 |
173-4754
|
Screw #10 x 3/8 pan head phillips standard type b (OBSOLETE) |
3 |
|
|
13 |
173-2753
|
Screw 1/4-20 x 3/4 flat head cap screw |
8 |
|
|
14 |
173-4750
|
Bearing |
1 |
|
|
15 |
173-4746
|
Internal snap ring |
2 |
|
|
16 |
173-4745
|
38 inch drive belt |
1 |
|
|
17 |
173-4756
|
Bearing |
1 |
|
|
