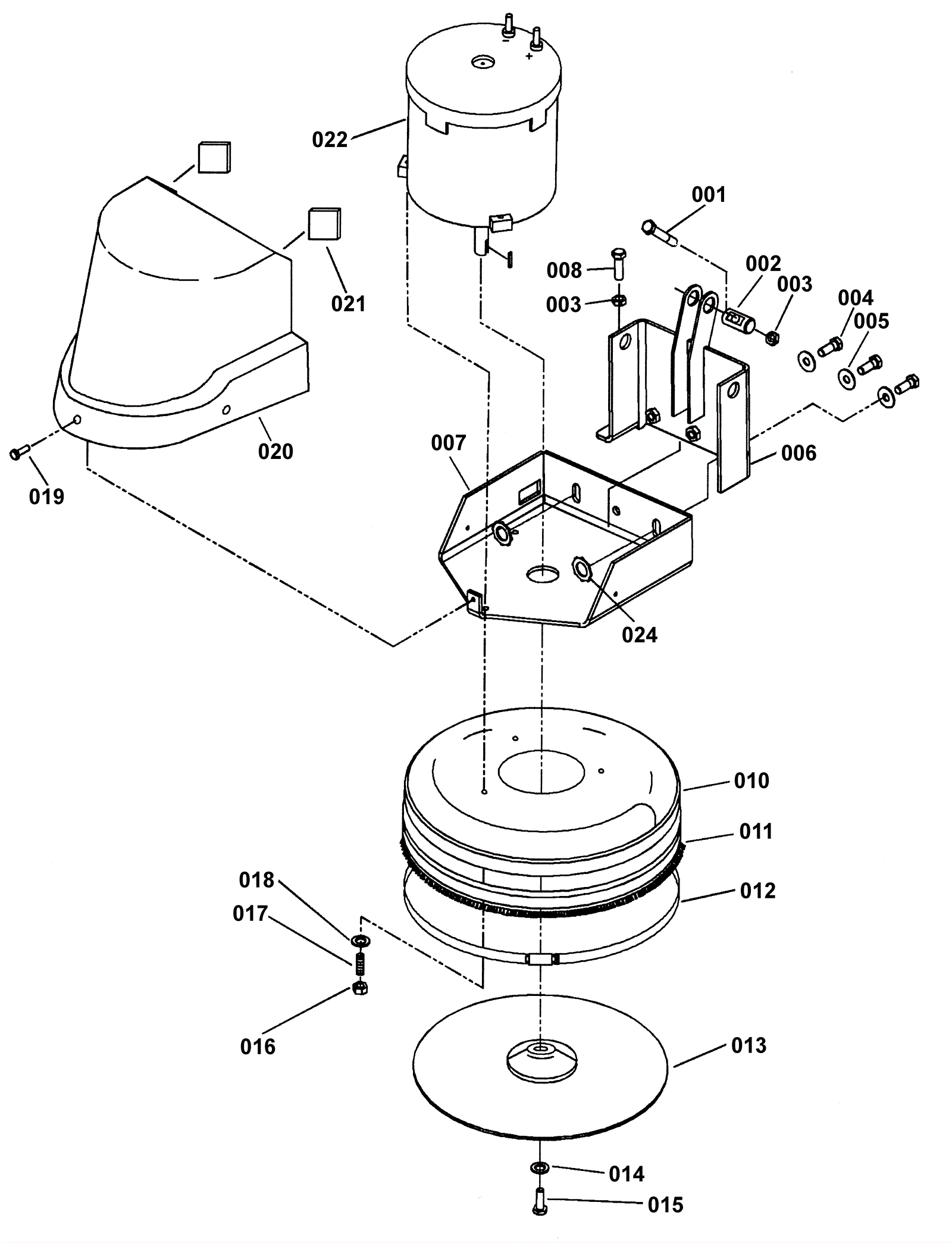

LIGHTNING L20 Deck Lift Mechanism

#PartDescriptionPriceReqNotesAvailability
001 999-0386 Screw 3/8-16 x 2 1/4 carriage head grade 5 zinc $0.99 ships same day
002 173-0433 Burnisher bushing from s/n 1000062516 $31.35 usually ships 1-5 days
003 999-0247 Nut 3/8-16 hex jam plain finish $0.99 ships same day
004 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 ships same day
005 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 ships same day
006 173-0434 Burnisher mounting bracket from s/n 1000062516 $201.30 usually ships 1-5 days
007 173-0435 Deck mounting bracket from s/n 1000062516 $218.90 usually ships 1-5 days
008 999-0232 Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc $0.99 ships same day
010 173-0436 Shroud $421.30 usually ships 1-5 days
011 173-0437 Shroud skirt $368.50 usually ships 1-5 days
012 173-1568 Worm clamp $64.90 ships same day
013 173-0438 Pad drive assembly $422.40 usually ships 1-5 days
014 999-0024 Washer 5/16 flat stainless steel $1.34 ships same day
015 173-0439 Screw 5/16-24 x 1/2 machine stainless steel $3.03 usually ships 7-19 days
016 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 ships same day
017 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 ships same day
018 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
019 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer $0.99 usually ships 7-19 days
020 173-0440 Motor cover $368.50 usually ships 1-5 days
021 173-0213 Gasket $4.66 usually ships 7-19 days
022 173-0441 Motor 36vdc 2.5hp 2500rpm $1,985.50 usually ships 7-19 days
023 996-0372 Big mouth pad holder (left hand thread) $19.72 ships same day
024 173-2499 Washer 1/2 External Star $1.19 usually ships 1-5 days
