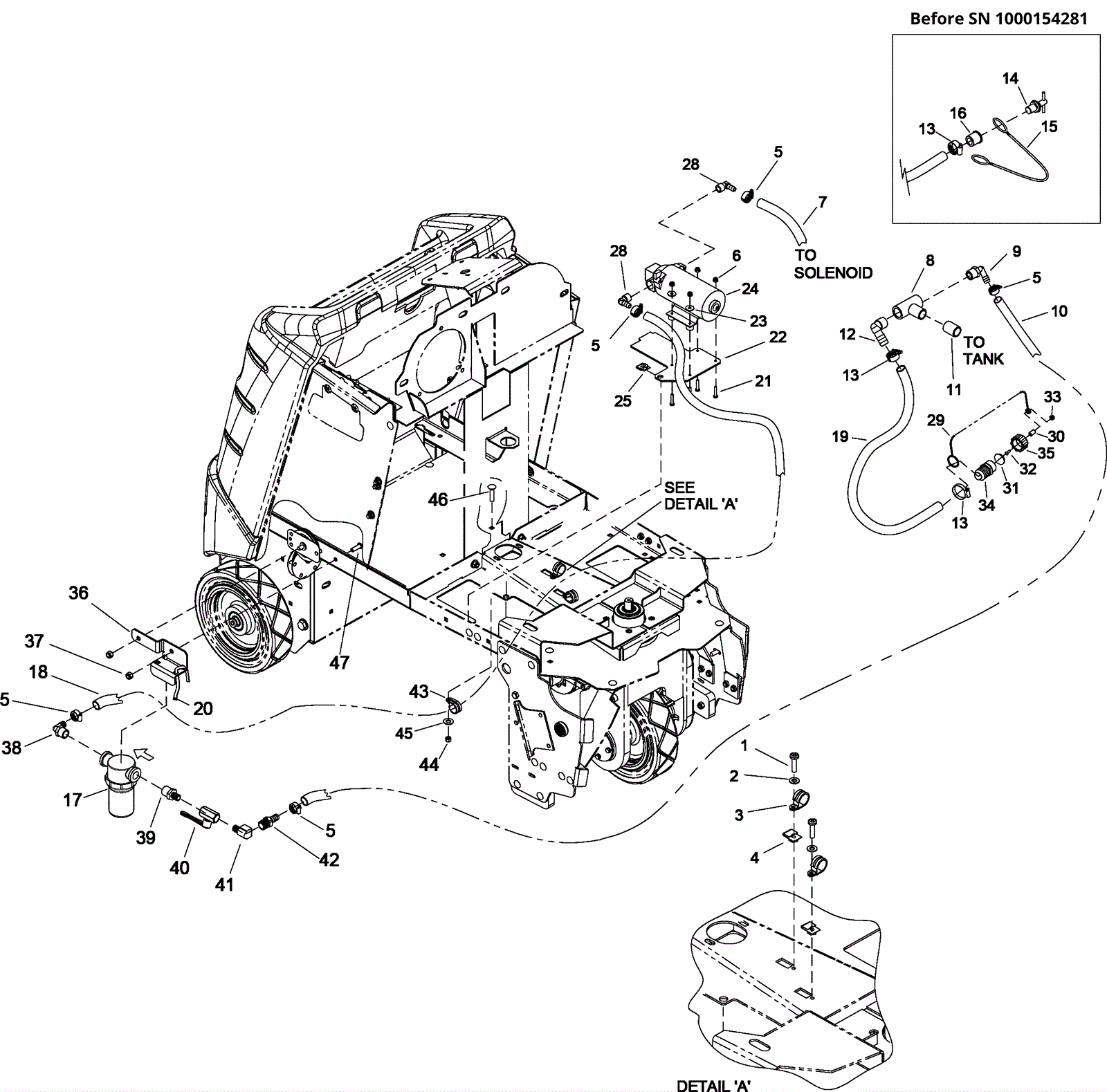

CHARIOT ISCRUB SERIES 1 Solution Assembly - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
2 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
3 173-1772 P clamp $4.13 2 usually ships 1-5 days
4 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 2 usually ships 7-19 days
5 173-1821 Hose clamp $6.39 5 ships same day
6 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
7a 173-6069 Wire bound hose $57.20 1 (cylindrical) usually ships 7-19 days
7b 173-2622 40 inch spring bound hose $52.36 1 (disk) usually ships 1-5 days
8 173-3563 3/4 inch female tee fitting $22.44 1 usually ships 7-19 days
9 173-2623 Hosebarb 3/4 x 1/2 inch $12.98 1 usually ships 7-19 days
10a 173-9159 Wirebound hose 1/2 x 23 inch $49.28 1 (cylindrical) usually ships 7-19 days
10b 173-8322 Wire bound hose 1/2 x 12 inch $19.58 1 (disk) usually ships 7-19 days
11 173-3565 3/4 inch nipple fitting $11.11 1 usually ships 7-19 days
12 273-0002 Hosebarb 3/4 x 1 inch $25.41 1 usually ships 7-19 days
13 173-1079 Hose clamp (OBSOLETE) $2.06 2 usually ships 7-19 days
14 173-2794 Drain hose plug $27.39 1 (before SN 1000154281) ships same day
15 273-0003 Nylon strap $3.26 1 (before SN 1000154281) usually ships 1-5 days
16 173-8410 Wand holster $143.00 1 (before SN 1000154281) usually ships 7-19 days
17a 273-0039 Solution filter $96.80 1 (cylindrical) usually ships 7-19 days
17b 173-1089 Solution filter assembly $9.74 1 (disk) ships same day
17c 173-3050 O-ring gasket $6.49 1 usually ships 7-19 days
17d 189-4023 Solution filter screen $60.59 1 usually ships 7-19 days
18a 273-2022 Wire bound hose 1/2 x 58 inch $53.13 1 (cylindrical) usually ships 1-5 days
18b 173-9037 Wire bound hose 1/2 x 32 inch $44.33 1 (disk) usually ships 7-19 days
19 173-2793 Drain hose $53.13 1 usually ships 7-19 days
20 173-3169 Wire tie $1.03 2 usually ships 1-5 days
21 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 4 ships same day
22 273-0005 Solution pump bracket (OBSOLETE) $34.32 1 usually ships 7-19 days
23 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
24 173-2606 36V pump assembly $720.83 1 usually ships 7-19 days
25 173-3935 Nut 5/16-18 captive jam (OBSOLETE) $5.50 1 usually ships 7-19 days
26 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
27 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 1 ships same day
28 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 2 usually ships 7-19 days
29 273-0006 Strap $5.94 1 (after SN 1000154280) usually ships 7-19 days
30 273-0007 Spacer $1.57 1 (after SN 1000154280) usually ships 7-19 days
31 273-0008 O-ring $5.83 1 (after SN 1000154280) usually ships 7-19 days
32 273-0009 Screw 8-32 x 1/2 button head stainless steel $1.88 1 (after SN 1000154280) usually ships 7-19 days
33 273-0010 Nut 8/32 acorn cap plated $1.76 1 (after SN 1000154280) usually ships 7-19 days
34 273-0011 Hosebarb 1 x 3/4 inch nylon $26.73 1 (after SN 1000154280) usually ships 7-19 days
35 273-0012 Cap $33.33 1 (after SN 1000154280) usually ships 7-19 days
36 273-2021 Bracket $49.39 1 (cylindrical) (after SN 10060210000142) usually ships 1-5 days
37 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 (cylindrical) (after SN 10060210000142) ships same day
38 173-1685 Hosebarb 1/2 x 1/2 inch $12.21 1 (cylindrical) (after SN 10060210000142) usually ships 7-19 days
39 273-5911 Brass nipple 1/2 x 3/8 inch $7.92 1 (cylindrical) (after SN 10060210000142) usually ships 7-19 days
40 273-0013 3/8 inch ball valve $64.35 1 (after SN 10060210000142) usually ships 7-19 days
41 173-0965 3/8 inch street elbow nickel plated $15.73 1 (after SN 10060210000142) usually ships 7-19 days
42 173-3056 Hosebarb 3/8 x 1/2 inch $10.01 1 (after SN 10060210000142) usually ships 7-19 days
43 173-3112 P clamp $9.74 1 (cylindrical) (after SN 10060210000142) usually ships 7-19 days
44 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 (cylindrical) (after SN 10060210000142) ships same day
45 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 (cylindrical) (after SN 10060210000142) ships same day
46 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 1 (cylindrical) (after SN 10060210000142) ships same day
47 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 (cylindrical) (after SN 10060210000142) ships same day
N/S 173-1078 3/8 inch elbow $41.47 1 (disk) (after SN 10060210000142) usually ships 7-19 days
N/S 173-5214 Hosebarb 3/8 x 1/2 inch nylon $14.41 1 (disk) (after SN 10060210000142) usually ships 7-19 days
