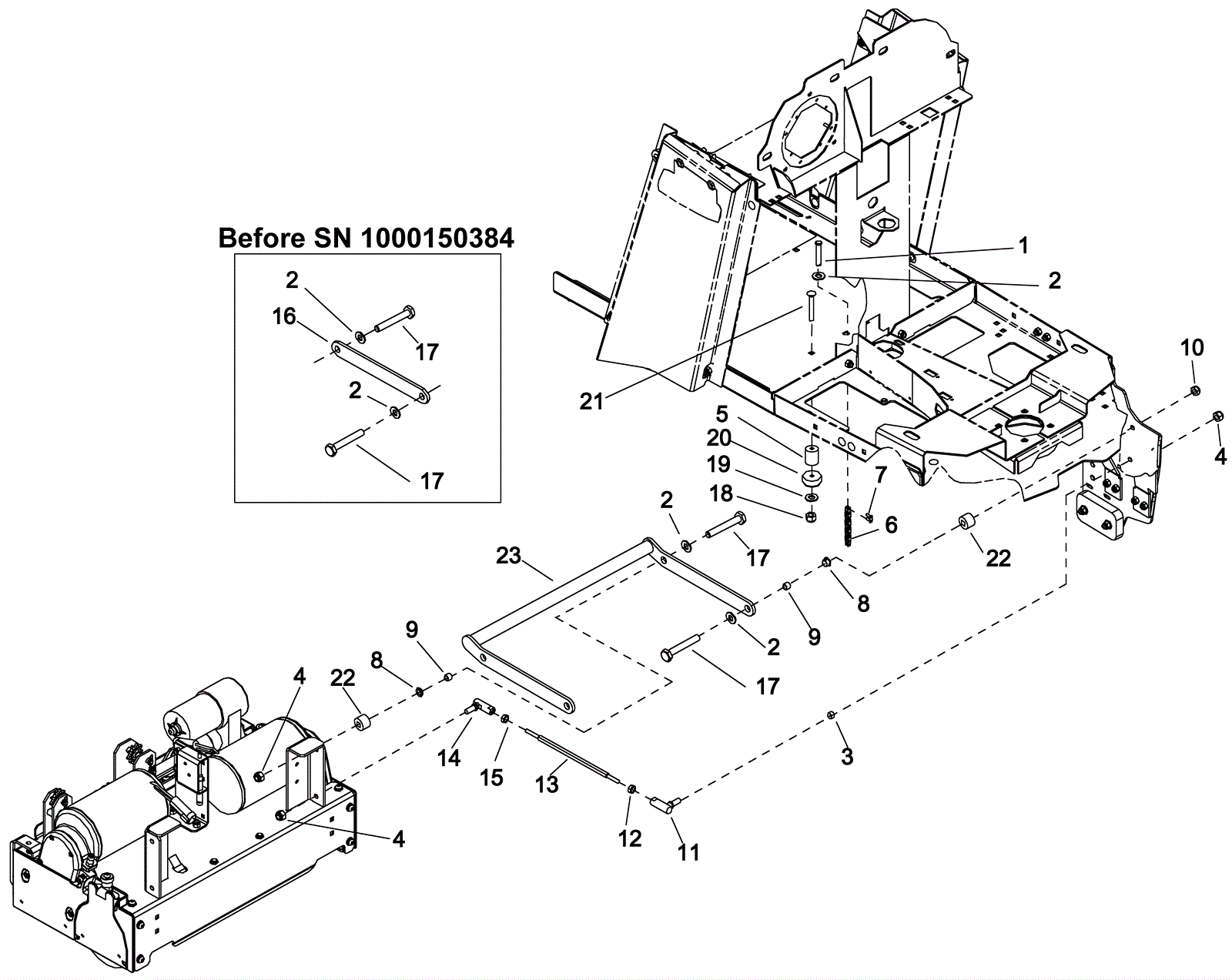

CHARIOT ISCRUB SERIES 1 Scrub Deck Mounting Assembly - Cylindrical - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-3378 Clevis pin $6.88 1 usually ships 1-5 days
2 999-1416 Washer 7/16 flat stainless steel $0.99 5 ships same day
3 173-0526 Spacer $25.08 2 usually ships 1-5 days
4 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 6 ships same day
5 273-5866 Spacer $31.46 2 usually ships 1-5 days
6 173-8561 Chain $30.25 1 usually ships 7-19 days
7 173-3749 Connecting link $11.88 1 usually ships 1-5 days
8 173-1582 Bearing $6.93 4 usually ships 7-19 days
9 173-1591 Spacer $45.21 4 usually ships 1-5 days
10 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
11 173-1594 Right ball joint assembly $35.20 2 usually ships 7-19 days
12 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
13 273-5868 Lifting rod $32.56 2 usually ships 1-5 days
14 173-1584 Left ball joint $41.47 2 usually ships 7-19 days
15 173-3927 Nut 3/8-24 $3.87 2 usually ships 1-5 days
16 273-5867 Linkage $51.59 2 (before SN 1000150384) usually ships 1-5 days
17 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 4 ships same day
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
19 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
20 173-3703 Rubber bumper $18.04 2 usually ships 1-5 days
21 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc $0.99 2 ships same day
22 273-5862 Spacer $24.64 4 usually ships 1-5 days
23 173-6057 Linkage arm $150.70 1 (after SN 1000150383) usually ships 1-5 days
