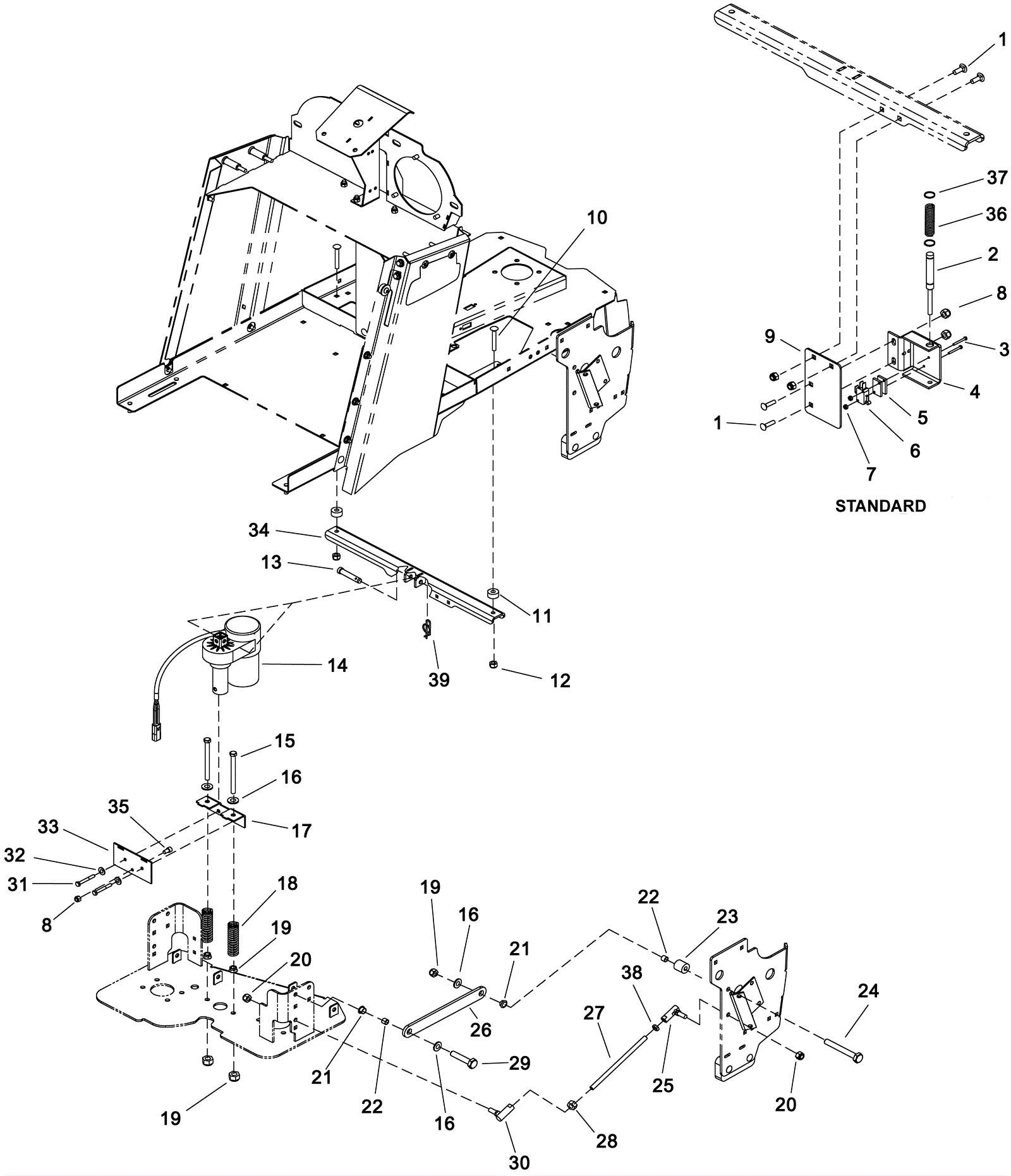

CHARIOT ISCRUB SERIES 1 Scrub Deck Lift Assembly - Disk - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 ships same day
2 173-5532 Micro switch plunger $8.44 1 (after SN 1000155937) usually ships 1-5 days
3 999-0983 Screw 4-40 x 1 pan head phillips zinc plated $0.99 2 ships same day
4 173-0491 Micro switch mounting bracket $30.25 1 usually ships 1-5 days
5 173-0492 Spacer $6.01 2 usually ships 1-5 days
6 173-2332 Mini roller switch $50.05 1 usually ships 14-22 days
7 173-2579 Nut 4-40 hex star lock $0.99 2 usually ships 1-5 days
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
9 173-6055 Mounting plate $43.12 1 usually ships 1-5 days
10 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 2 ships same day
11 273-5862 Spacer $24.64 2 usually ships 1-5 days
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
13 173-1610 Clevis pin $16.89 1 (CS24 after SN 10060210000177) (CSE24 after SN 10060250000005) (CSX24 after SN 10060270000497) (CSXE24 after SN 1006029000000000) (CSXE024 after SN 1006030000000) usually ships 14-22 days
14 173-6056 36V actuator $750.34 1 (after SN 1000168940) usually ships 14-22 days
15 999-0795 Bolt 3/8-16 x 4 hex head stainless steel $2.13 2 ships same day
16 173-3985 Washer 7/16 flat stainless steel $1.21 2 usually ships 14-22 days
17 273-5864 Actuator bracket $81.95 1 usually ships 1-5 days
18 273-5865 Compression spring $39.93 2 usually ships 14-22 days
19 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 4 ships same day
20 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 2 ships same day
21 173-1582 Bearing $6.93 6 usually ships 14-22 days
22 173-1591 Spacer $45.21 4 usually ships 1-5 days
23 273-5866 Spacer $31.46 2 usually ships 1-5 days
24 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 2 ships same day
25 173-1584 Left ball joint $41.47 2 usually ships 14-22 days
26 273-5867 Linkage $51.59 2 usually ships 1-5 days
27 273-5868 Lifting rod $32.56 2 (after SN 1000157684) usually ships 1-5 days
28 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
29 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
30 173-1594 Right ball joint assembly $35.20 2 usually ships 14-22 days
31 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 2 ships same day
32 999-1049 Washer 1/4 split lock zinc plated $0.99 2 ships same day
33 273-5860 Plate $35.97 1 usually ships 14-22 days
34 273-5861 Actuator mounting bracket $133.10 1 usually ships 1-5 days
35 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $8.75 2 ships same day
36 189-0353 Compression spring $15.65 1 usually ships 14-22 days
37 173-0494 Retaining clip $0.99 2 usually ships 1-5 days
38 173-3927 Nut 3/8-24 $3.87 2 usually ships 1-5 days
39a 173-1480 Cotter ring $2.12 1 (CS24 after SN 10060210000177) (CSE24 after SN 10060250000005) (CSX24 after SN 10060270000497) (CSXE24 after SN 1006029000000000) (CSXE024 after SN 1006030000000) ships same day
39b 173-1593 Cotter ring (OBSOLETE) $0.99 1 (after SN 1000170202) usually ships 14-22 days
