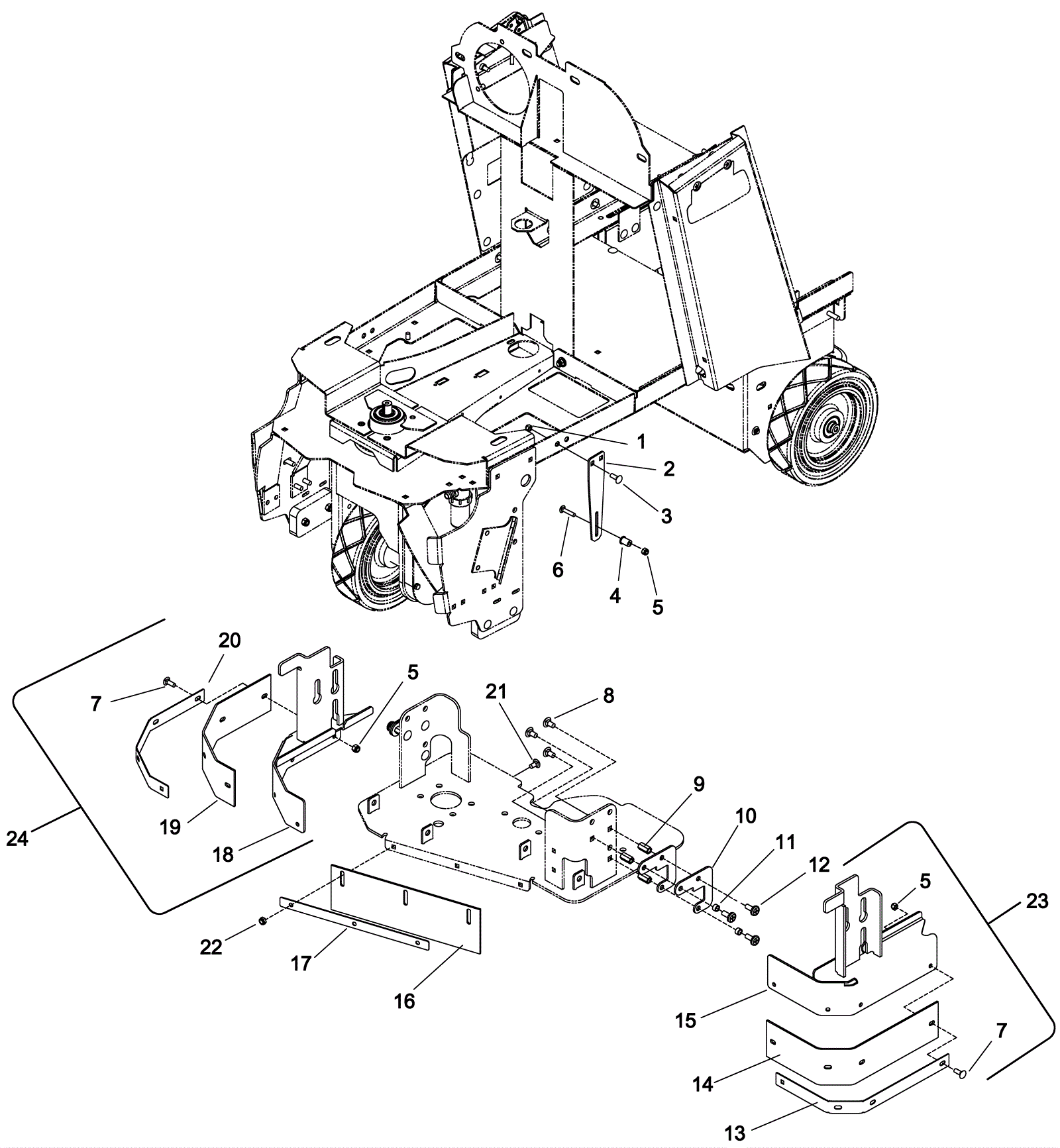

CHARIOT ISCRUB SERIES 1 Scrub Deck Skirts Assembly - Disk - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
2 273-5886 Bracket $22.66 2 usually ships 1-5 days
3 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
4 173-8258 Flanged bearing $11.33 2 ships same day
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
6 173-2580 Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) $2.84 2 usually ships 7-19 days
7 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 8 ships same day
8 273-0019 Screw 5/16-18 x 5/8 carriage stainless steel $4.82 6 usually ships 7-19 days
9 173-4088 Nut 5/16-18 hex coupling stainless steel $30.58 6 usually ships 7-19 days
10 273-5887 Plate $31.13 4 usually ships 1-5 days
11 273-5888 Spacer $26.51 4 usually ships 7-19 days
12 173-4632 Screw M12 x 1.25mm pan head phillips stainless steel $6.38 6 usually ships 7-19 days
13 273-5889 Left skirt band $39.17 1 usually ships 7-19 days
14 273-0035 24 inch left skirt blade $26.84 1 ships same day
15 273-5890 Left skirt bracket $218.90 1 usually ships 1-5 days
16 273-0037 Front skirt blade $52.92 1 usually ships 7-19 days
17 273-5891 Front skirt band $40.26 1 ships same day
18 273-5892 Right skirt bracket $211.20 1 usually ships 1-5 days
19 273-0036 24 inch right skirt blade $26.84 1 usually ships 7-19 days
20 273-5893 Right skirt band $39.17 1 usually ships 7-19 days
21 273-5894 Screw 1/4-20 x 5/8 carriage head stainless steel $3.30 3 usually ships 1-5 days
22 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 3 ships same day
23 273-5895 Left skirt kit $372.90 1 (includes 5, 7, 13-15) usually ships 7-19 days
24 273-5896 Right skirt kit $304.70 1 (includes 5, 7, 18-20) usually ships 7-19 days
