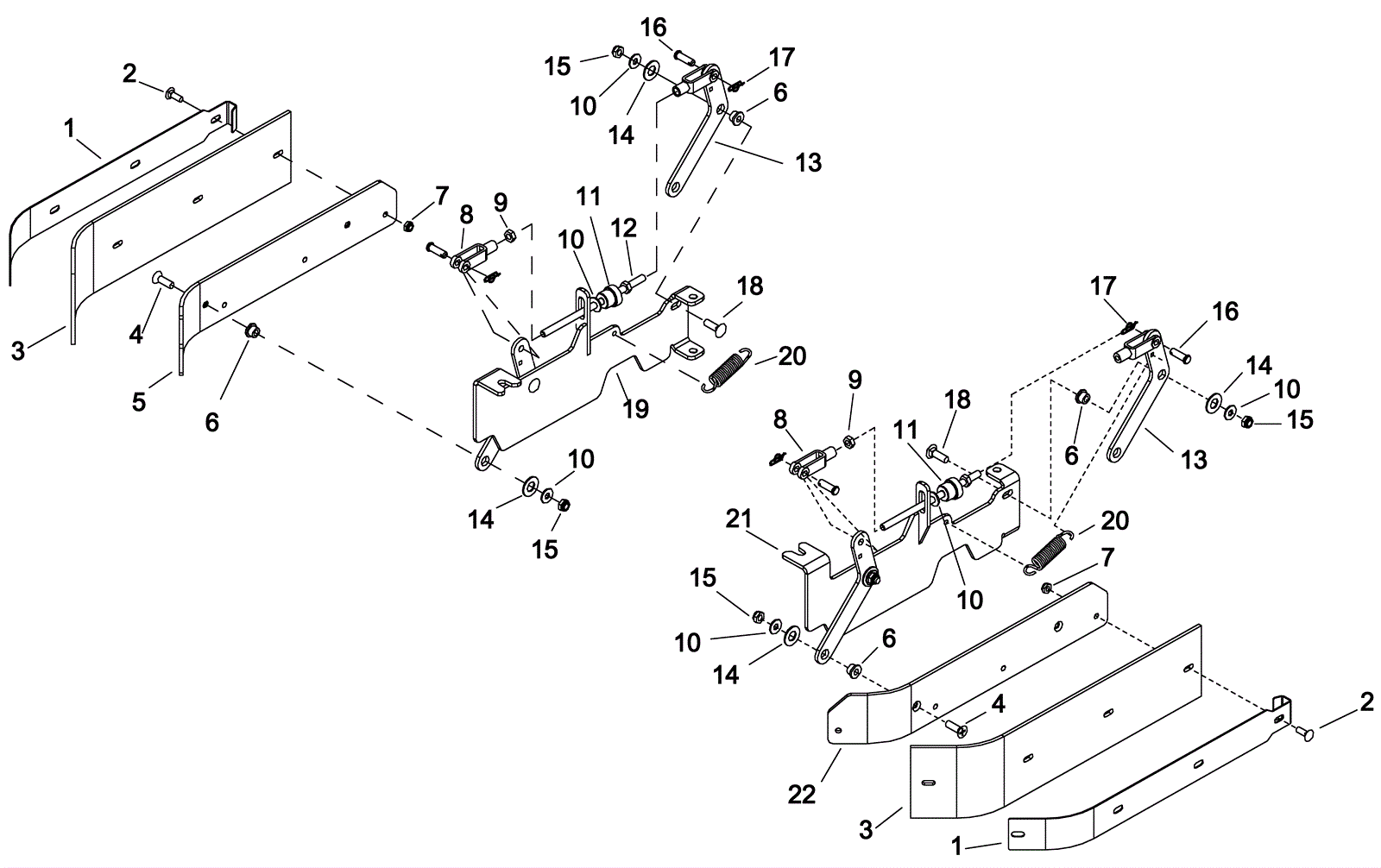

CHARIOT ISCRUB SERIES 1 Side Squeegee - Cylindrical - Internal - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-6043 Retaining band $64.90 2 usually ships 1-5 days
2 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 8 ships same day
3 273-0949 Side squeegee blade $144.10 2 usually ships 14-22 days
4 999-1393 Screw 5/16-18 x 1 flat head phillips stainless steel $2.55 4 ships same day
5 173-6045 Left skirt bracket $107.80 1 usually ships 1-5 days
6 273-5628 Flanged bearing $5.50 8 ships same day
7 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 8 ships same day
8 173-6046 Clevis pin 5/16 $87.63 4 usually ships 1-5 days
9 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
11 173-4184 Knob $67.10 2 usually ships 14-22 days
12 173-6047 Rod $24.53 1 usually ships 1-5 days
13 173-6048 Squeegee linkage arm $36.52 4 usually ships 1-5 days
14 173-2815 Washer 33/64 x 1 thrust $7.81 8 usually ships 14-22 days
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 8 ships same day
16 173-5985 Clevis pin 5/16 x 1 $5.45 4 usually ships 14-22 days
17 173-1480 Cotter ring $2.12 4 ships same day
18 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
19 173-6049 Left side bracket weldment $130.90 1 usually ships 1-5 days
20 173-8442 Extension spring $27.45 2 usually ships 14-22 days
21 173-6050 Right side bracket weldment $130.90 1 usually ships 1-5 days
22 173-6051 Right skirt bracket $107.80 1 usually ships 1-5 days
