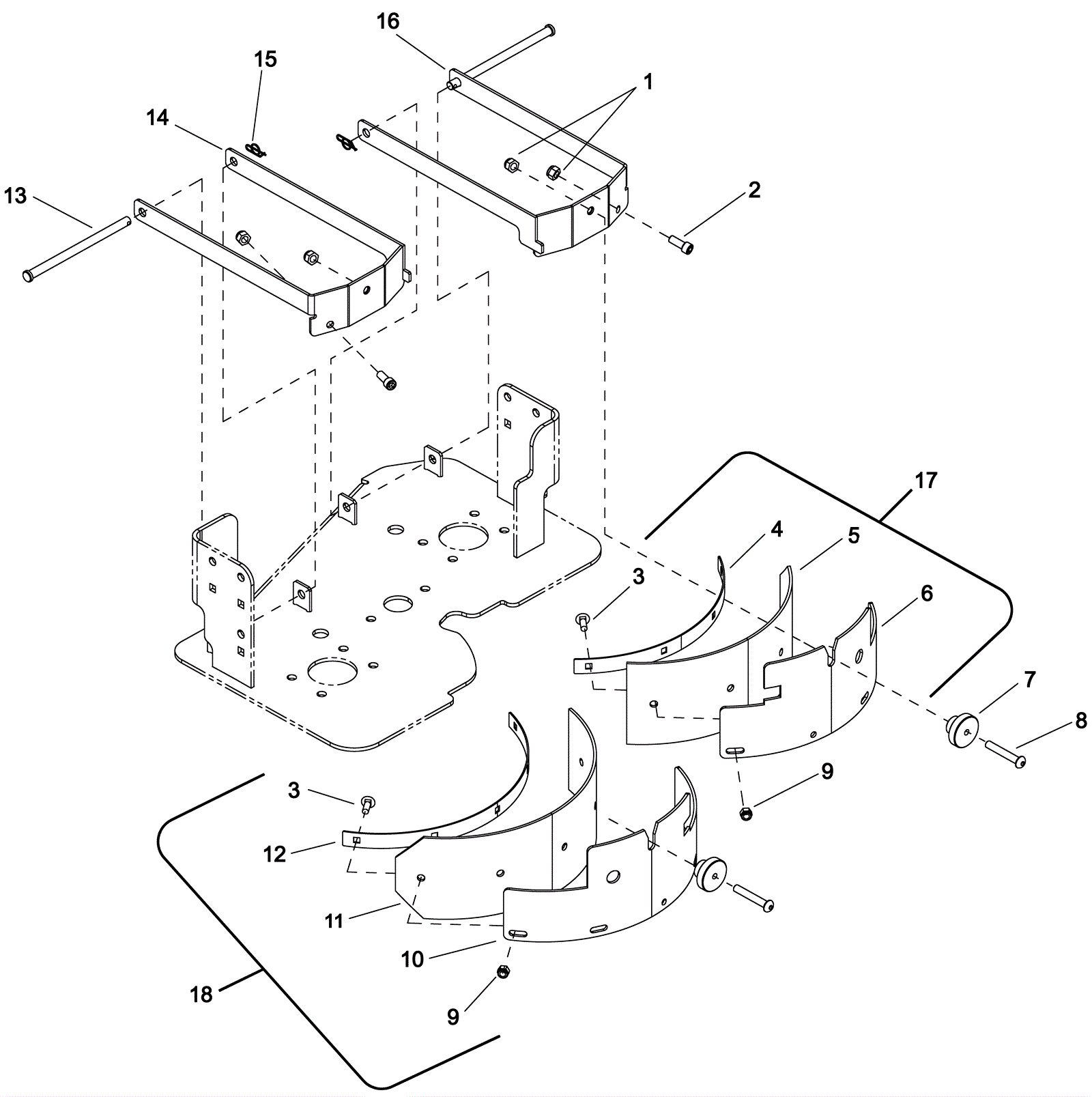

CHARIOT ISCRUB SERIES 1 Scrub Deck Aqua-Mizer Assembly - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
2 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 2 ships same day
3 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 9 ships same day
4 173-9998 Right retaining band $36.85 1 usually ships 1-5 days
5a 173-9999 12 inch right gum rubber blade $58.86 1 usually ships 7-19 days
5b 173-9997 12 inch right urethane blade (OBSOLETE) $67.10 1 usually ships 7-19 days
6 173-9838 Right skirt bracket $112.20 1 usually ships 7-19 days
7 173-3184 Knob $48.29 2 ships same day
8 999-0544 Screw 5/16-18 x 2 1/4 socket head stainless steel $1.78 2 ships same day
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 9 ships same day
10 173-9840 Left skirt bracket $112.20 1 usually ships 1-5 days
11a 173-9841 12 inch left gum rubber blade $69.31 1 usually ships 7-19 days
11b 173-9842 12 inch left urethane blade $74.80 1 ships same day
12 173-9843 Left retaining band $43.01 1 usually ships 1-5 days
13 173-9844 Clevis pin $18.04 2 usually ships 7-19 days
14 173-9845 Left mounting bracket $96.80 1 usually ships 7-19 days
15 173-1593 Cotter ring (OBSOLETE) $0.99 2 usually ships 7-19 days
16 173-9846 Right mounting bracket $96.80 1 usually ships 7-19 days
17 173-9847 Right side skirt assembly $218.90 1 (includes 3-6, 9) usually ships 7-19 days
18 173-9848 Left side skirt assembly $242.00 1 (includes 3, 9-12) usually ships 7-19 days
