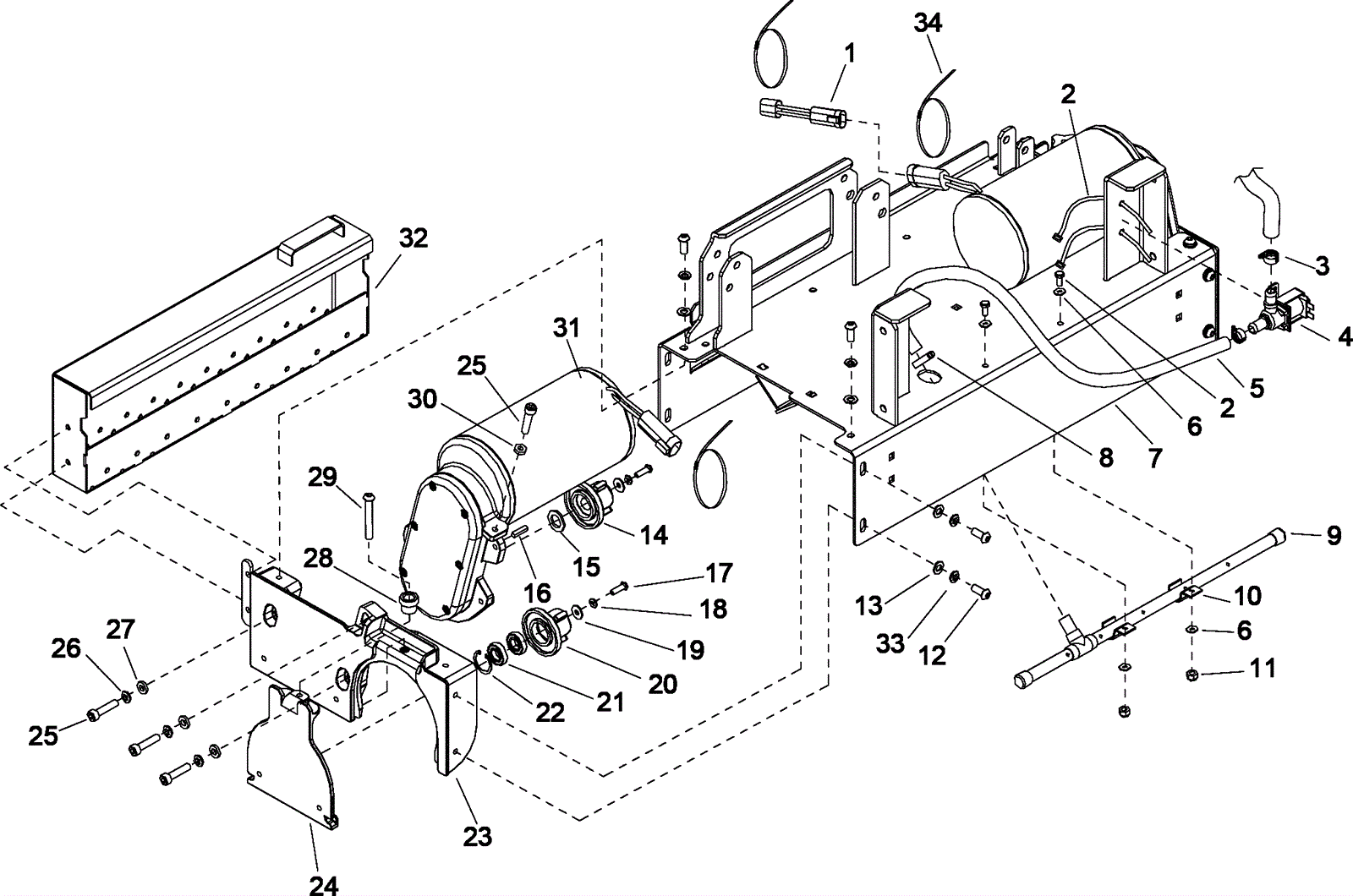

CHARIOT ISCRUB SERIES 1 Scrub Deck Assembly - Cylindrical - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-1766 Polarity jumper wire assembly $87.45 2 usually ships 7-19 days
2 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
3 173-1821 Hose clamp $6.39 2 ships same day
4 173-8562 Solenoid valve $158.42 4 usually ships 1-5 days
5 173-4170 Hose $14.88 1 usually ships 1-5 days
6 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
7 173-4171 26 inch scrub deck frame $498.30 1 usually ships 1-5 days
8 173-4172 Clamp $7.82 2 usually ships 1-5 days
9 173-4173 Solution delivery manifold $97.00 1 usually ships 1-5 days
10 173-1741 Conduit clamp $3.23 2 usually ships 1-5 days
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
12 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 12 ships same day
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 12 ships same day
14 173-4175 Brush drive hub $49.28 2 usually ships 7-19 days
15 173-4176 Washer M16 split lock $5.56 2 usually ships 7-19 days
16 173-1856 Square keyway $3.75 2 usually ships 7-19 days
17 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
18 999-0876 Washer M6 split lock plain finish $0.99 4 ships same day
19 173-4178 Washer M6 flat plated (OBSOLETE) $1.45 4 usually ships 7-19 days
20 173-4179 Brush hub $59.95 2 usually ships 7-19 days
21 173-4180 Ball bearing $48.40 4 usually ships 7-19 days
22 173-4181 Snap ring $8.03 2 usually ships 7-19 days
23 173-4182 Drive housing $236.50 2 usually ships 7-19 days
24 173-4183 Brush door (OBSOLETE) $80.91 2 usually ships 7-19 days
25 999-1621 Screw M8-1.25 x 30mm socket head stainless steel $2.30 8 usually ships 1-5 days
26 999-0674 Washer M8 split lock plain finish $0.99 6 ships same day
27 173-7455 Washer #10 x 9/16 $2.37 6 usually ships 1-5 days
28 173-4184 Knob $67.10 2 usually ships 7-19 days
29 999-0893 Screw 5/16-18 x 2 hex head stainless steel $0.99 2 ships same day
30 173-4185 Nut M8-1.25 hex jam stainless steel $4.13 2 usually ships 1-5 days
31a 173-4186 36V brush motor $1,292.50 2 usually ships 7-19 days
31b 173-1576 Carbon brush (pkg of 4) $78.10 1 (srvc) ships same day
31c 173-4187 Gearbox gasket $22.99 1 usually ships 1-5 days
32 173-4188 Deck hopper $359.70 1 usually ships 7-19 days
33 999-0028 Washer 5/16 split lock plain finish $0.99 12 ships same day
34 273-3820 11 inch cable tie $0.41 2 ships same day
