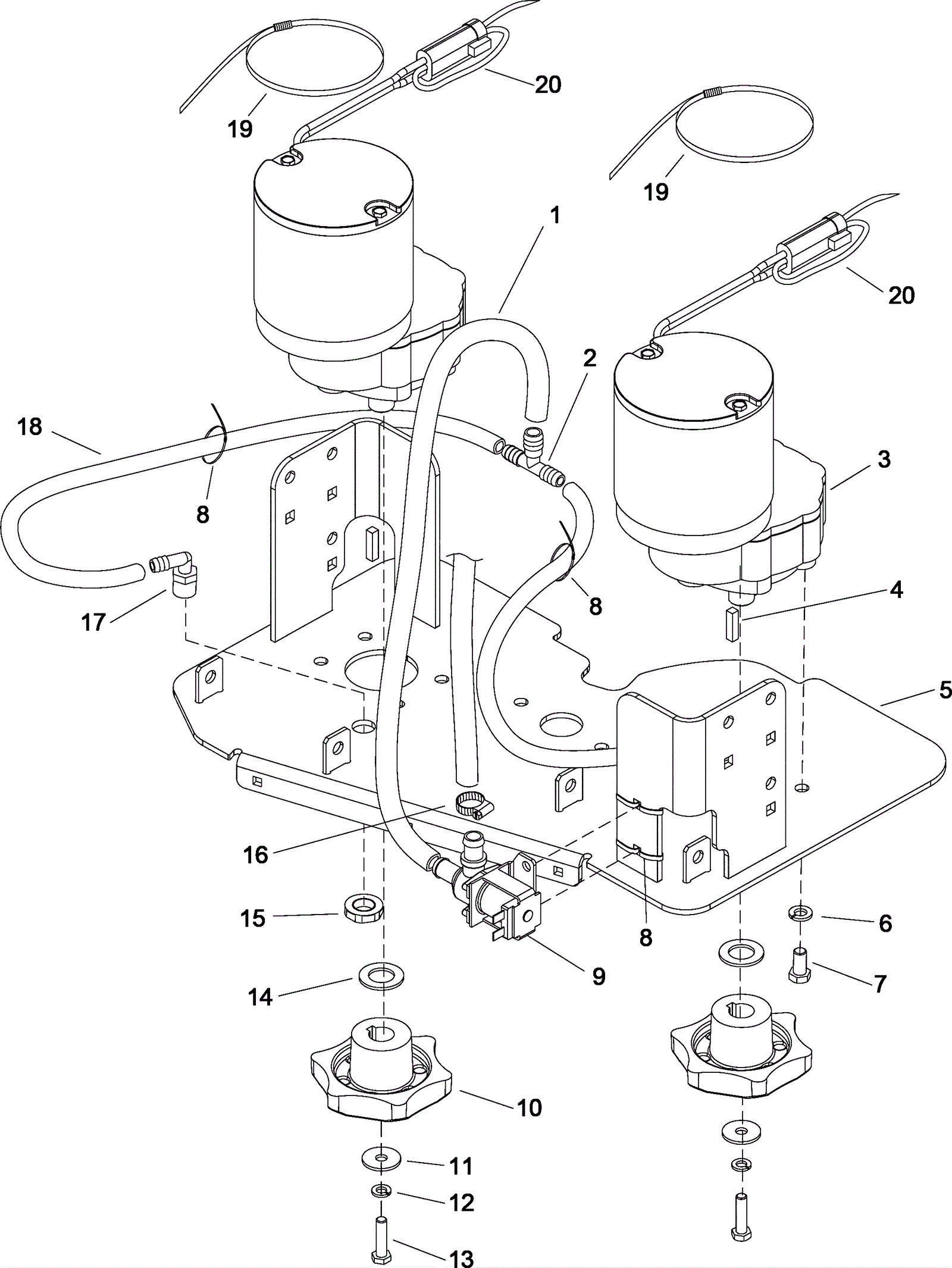

CHARIOT ISCRUB SERIES 1 Scrub Deck Assembly - Disk - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-8326 Wire bound hose 1/2 x 8 inch $32.89 1 ships same day
2 173-1095 Tee fitting $9.52 1 usually ships 7-19 days
3a 173-7404 36V brush motor assembly $711.70 2 usually ships 7-19 days
3b 273-5811 Carbon brush (pkg of 2) $176.00 1 usually ships 1-5 days
4 189-0323 Square keyway $35.72 2 ships same day
5 273-5812 24 inch scrub deck $468.60 1 usually ships 1-5 days
6 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
7 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 8 ships same day
8 173-3169 Wire tie $1.03 6 usually ships 1-5 days
9a 173-8562 Solenoid valve $158.42 1 usually ships 1-5 days
9b 173-8324 Solenoid diaphragm $41.47 1 (srvc) usually ships 7-19 days
9c 173-8325 Solenoid spring kit $236.50 1 (srvc) usually ships 7-19 days
10 173-1569 Star drive hub $113.32 2 usually ships 7-19 days
11 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 2 ships same day
12 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
13 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
14 173-2569 Washer .77 x 1.31 flat stainless steel $7.32 2 usually ships 7-19 days
15 173-4130 Nut 3/8 plastic nickel plated thread (OBSOLETE) $12.98 2 usually ships 7-19 days
16 173-1821 Hose clamp $6.39 1 ships same day
17 173-0618 15 inch brush housing $172.70 2 usually ships 7-19 days
18 173-2713 Wire bound hose 3/8 x 8 inch $25.08 2 usually ships 7-19 days
19 173-3305 Cable tie $11.66 2 usually ships 1-5 days
20 273-3820 11 inch cable tie $0.41 2 ships same day
