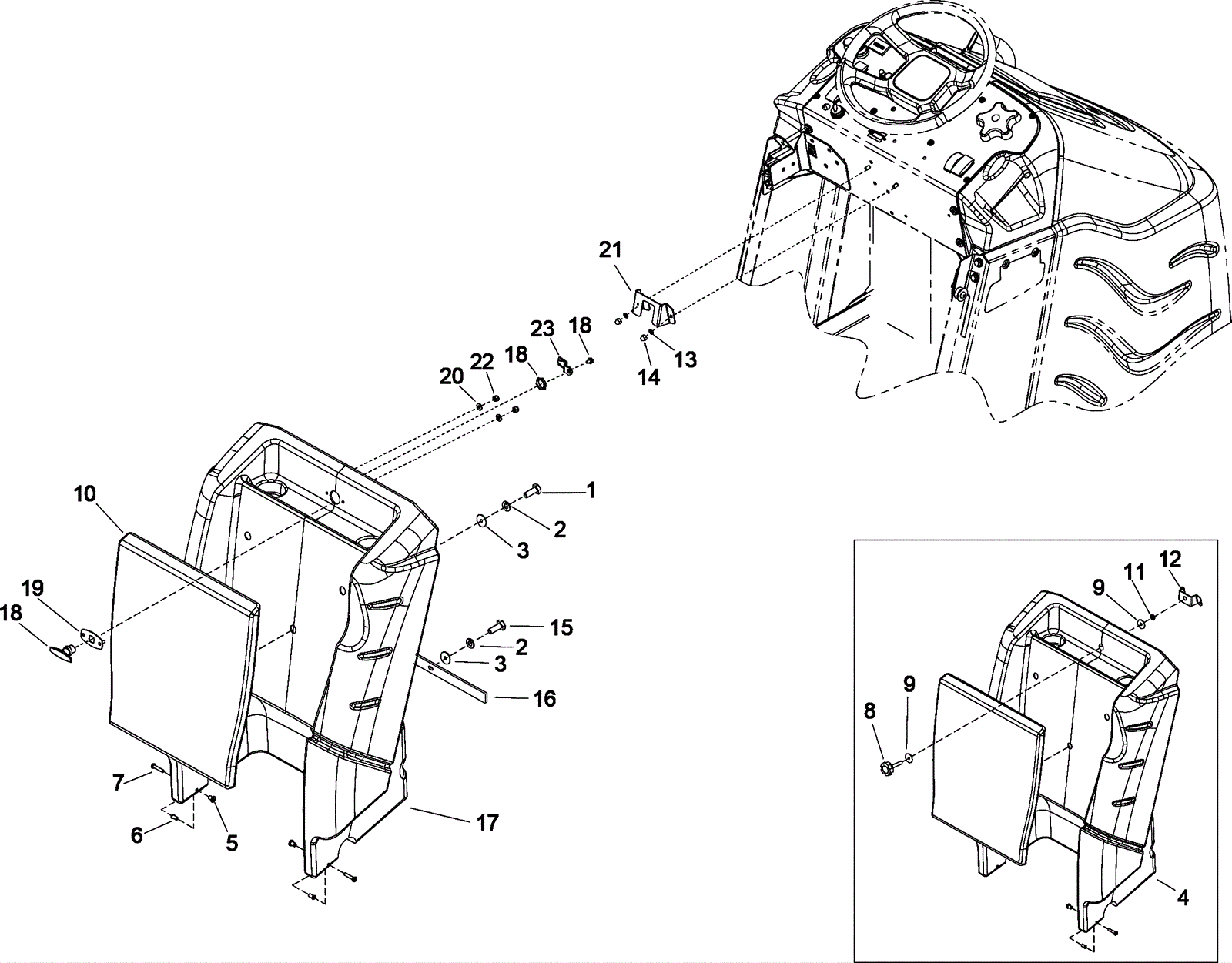

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
3 |
|
ships same day |
2 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
5 |
|
ships same day |
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
5 |
|
ships same day |
4a |
N/A
|
Not available |
Call for price
|
1 |
(basic rear cover) |
usually ships 3-26 days |
4b |
173-5519
|
Rear cover |
$641.30
|
1 |
(deluxe) |
usually ships 1-5 days |
5 |
173-8380
|
Nut 1/4-20 x 12 hex barrel (OBSOLETE) |
$5.89
|
2 |
|
usually ships 7-19 days |
6 |
173-5520
|
Flanged bearing |
$13.86
|
2 |
|
usually ships 7-19 days |
7 |
999-0398
|
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
$0.99
|
2 |
|
ships same day |
8 |
173-7402
|
Knob |
$37.62
|
1 |
|
usually ships 1-5 days |
9 |
173-3985
|
Washer 7/16 flat stainless steel |
$1.21
|
2 |
|
usually ships 7-19 days |
10 |
173-5521
|
Leaning pad |
$343.20
|
1 |
|
usually ships 7-19 days |
11 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
$3.96
|
1 |
|
ships same day |
12 |
173-7403
|
Bracket |
$55.55
|
1 |
|
usually ships 1-5 days |
13 |
999-1049
|
Washer 1/4 split lock zinc plated |
$0.99
|
2 |
|
ships same day |
14 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
$1.38
|
2 |
|
ships same day |
15 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
16 |
173-5523
|
Bar |
$80.85
|
1 |
|
usually ships 7-19 days |
17a |
273-6200
|
Basic rear cover |
$551.10
|
1 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
usually ships 1-5 days |
17b |
273-5801
|
Rear cover |
$990.20
|
1 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
usually ships 7-19 days |
18 |
273-5802
|
Handle cam latch |
$68.21
|
1 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
usually ships 7-19 days |
19 |
273-5803
|
Latch plate |
$8.64
|
1 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
usually ships 7-19 days |
20 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
2 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
ships same day |
21 |
273-5804
|
Rear cover bracket |
$53.79
|
1 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
usually ships 1-5 days |
22 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
2 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
ships same day |
23 |
273-5805
|
Handle pawl |
$10.45
|
1 |
(CS24 after SN 10060210000314) (CSX24 after SN 10060270000844) (CSXEO24 after SN 10030300000000) (CSE24 after SN10060250000006) (CSXE24 after SN 10060290000028) (CS24SP after SN 10060220000090) (CSE24SP after SN 10060260000002) |
usually ships 7-19 days |
