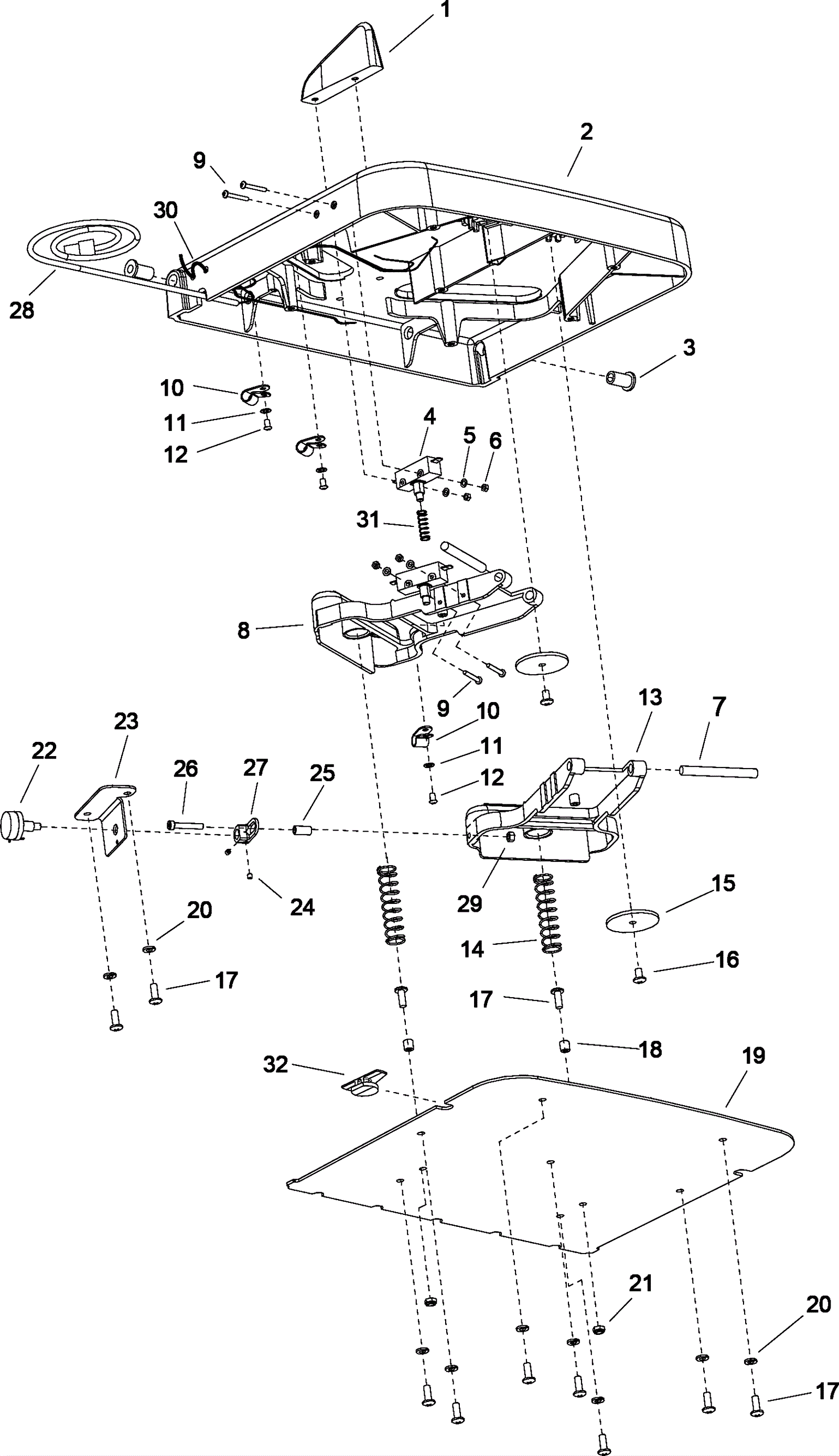

CHARIOT ISCRUB SERIES 1 Pedal Platform Assembly - Internal - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-5482 Divider $29.15 1 usually ships 1-5 days
2 173-5483 Platform $914.10 1 usually ships 1-5 days
3 173-5484 Flanged bushing $6.82 2 usually ships 7-19 days
4 173-0378 25amp switch replacement $65.45 2 ships same day
5 999-1404 Washer M4 internal star lock stainless steel $0.99 4 ships same day
6 999-1419 Nut M3-.5 hex stainless steel $0.99 4 ships same day
7 173-5487 Pivot rod $7.92 2 usually ships 1-5 days
8 173-5488 Brake pedal $120.33 1 usually ships 1-5 days
9 273-6286 Screw M3.5 x 38 pan head $1.85 4 usually ships 1-5 days
10 173-1709 P clamp (OBSOLETE) $2.30 3 usually ships 7-19 days
11 999-1405 Washer M5 internal star lock zinc $0.99 4 usually ships 1-5 days
12 173-5491 Screw M4.8 x 16mm phillips thread forming $1.88 4 usually ships 1-5 days
13 173-5492 Throttle pedal $94.05 1 usually ships 1-5 days
14 173-5493 Spring $10.62 2 usually ships 7-19 days
15 173-5494 Pivot plate (OBSOLETE) $4.42 2 usually ships 7-19 days
16 999-1417 Screw M6-1 x 10mm pan head phillips zinc plated $0.99 2 usually ships 1-5 days
17 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 11 ships same day
18 173-5497 Spacer $1.98 2 usually ships 7-19 days
19 173-5498 Plate $61.60 1 usually ships 1-5 days
20 999-0876 Washer M6 split lock plain finish $0.99 9 ships same day
21 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
22 173-9143 Potentiometer $125.40 1 usually ships 7-19 days
23 173-5500 Throttle plate $8.47 1 usually ships 1-5 days
24 999-9156 Screw M4-.7 x 4mm cup point set $0.99 2 usually ships 11-24 days
25 173-5502 Spacer $2.38 1 usually ships 1-5 days
26 273-6287 Screw M5 x 3 socket head $1.98 1 usually ships 1-5 days
27 273-6244 Link $16.39 1 usually ships 1-5 days
28 173-5505 Pedal harness $118.80 1 usually ships 1-5 days
29 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
30 173-3169 Wire tie $1.03 1 usually ships 1-5 days
31 173-0923 Spring $2.00 1 (after SN 1000157500) usually ships 7-19 days
32 173-5507 Switch plunger (OBSOLETE) $163.90 1 (after SN 1000157500) usually ships 7-19 days
