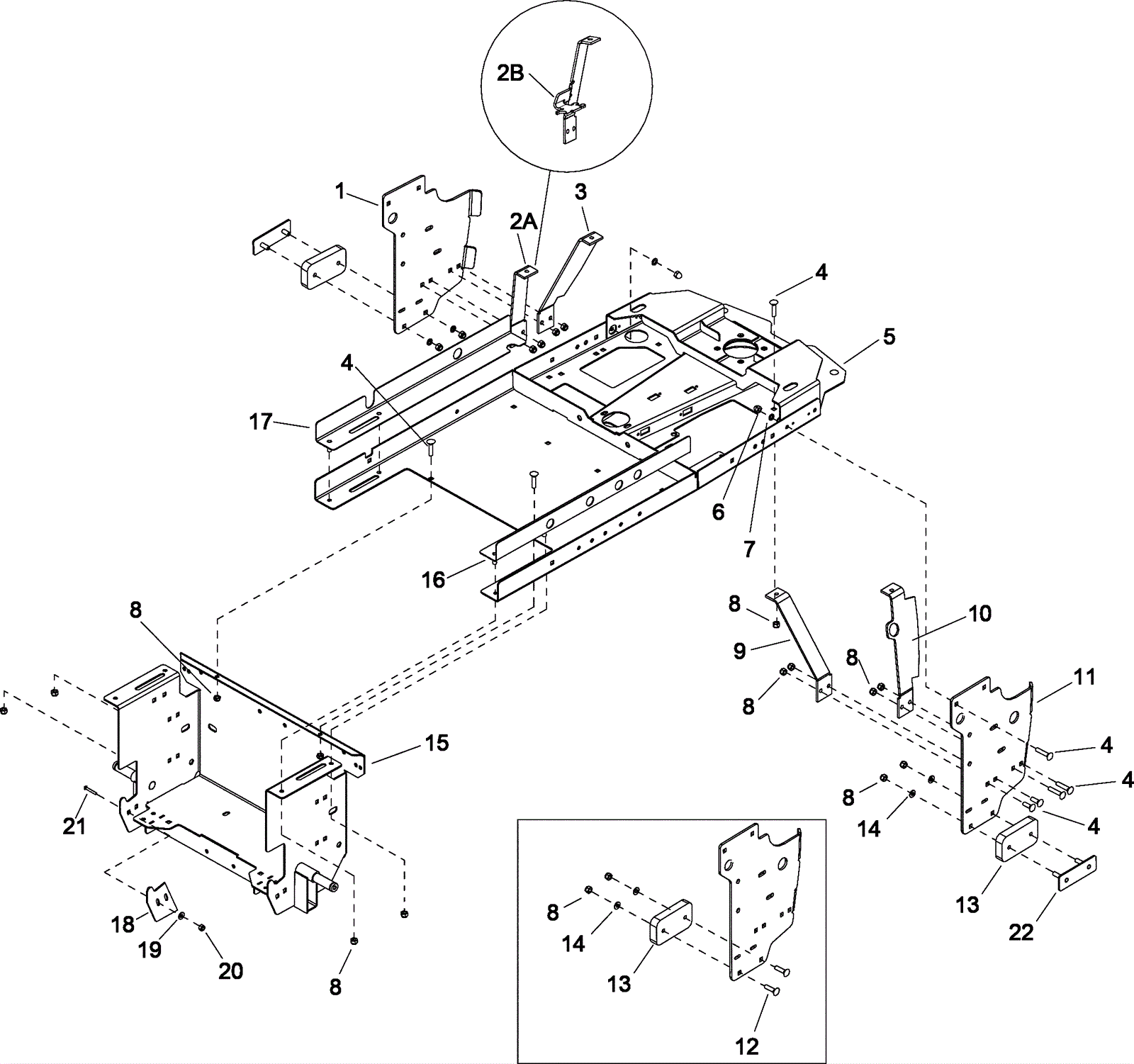

CHARIOT ISCRUB SERIES 1 Lower Frame Assembly - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-5466 Left hand linkage bracket $117.70 1 usually ships 1-5 days
2a 173-5465 Left hand rear bracket $62.70 1 (cylindrical) usually ships 1-5 days
2b 273-5790 Left rear bracket $64.35 1 (disk) usually ships 1-5 days
3 173-5467 Left hand front brace bracket $66.55 1 usually ships 1-5 days
4 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 16 ships same day
5 173-6036 Main frame $817.30 1 usually ships 1-5 days
6 999-1458 Nut 5/16-18 acorn nickel plated $0.99 4 ships same day
7 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 16 ships same day
9 173-5459 Right hand rear bracket $62.70 1 usually ships 1-5 days
10 173-5458 Right hand front brace bracket $63.80 1 usually ships 1-5 days
11 173-5461 Right hand linkage bracket $117.70 1 usually ships 1-5 days
12 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $5.08 4 usually ships 1-5 days
13 173-5460 Tipping bar pad $64.35 2 usually ships 7-19 days
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
15 173-5462 Rear axle weldment $656.70 1 usually ships 1-5 days
16 173-6037 Left hand slide tray $139.70 1 usually ships 1-5 days
17 173-5463 Right hand slide tray $139.70 1 usually ships 1-5 days
18 173-5468 Plate $16.61 2 (after SN 1000149449) usually ships 1-5 days
19 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 (after SN 1000149449) ships same day
20 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 (after SN 1000149449) ships same day
21 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 (after SN 1000149449) ships same day
22 173-7193 Pad retainer plate $35.20 2 (after SN 1000149663) usually ships 1-5 days
