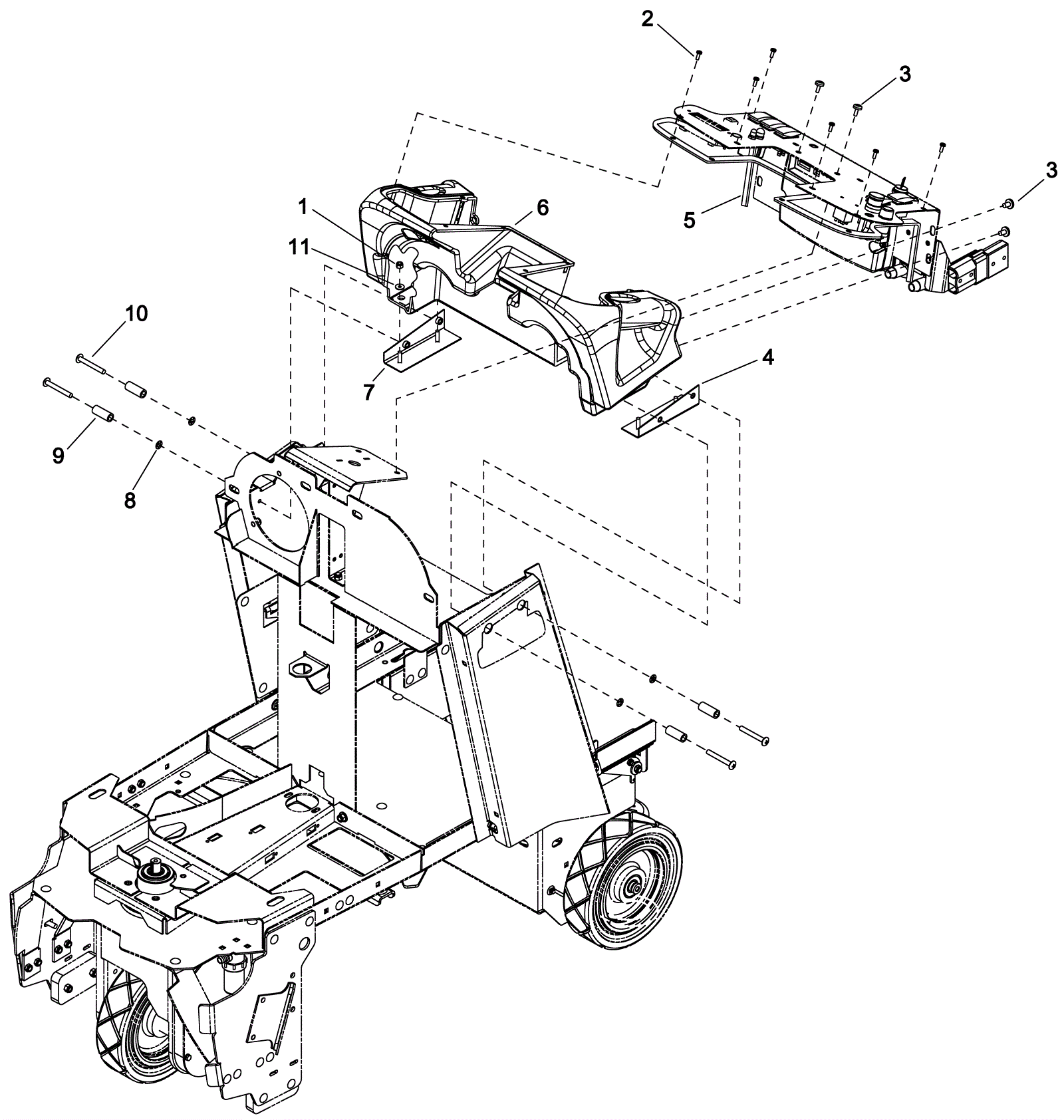

CHARIOT ISCRUB SERIES 1 Control Panel Housing Assembly - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
2 173-4649 Screw 10-32 x 1/2 torx stainless steel $2.12 6 usually ships 7-19 days
3 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 6 ships same day
4 173-4651 Left hand console mounting bracket $53.68 1 usually ships 1-5 days
5 173-4650 Gasket $8.20 3 usually ships 1-5 days
6 273-5782 Console $303.60 1 usually ships 1-5 days
7 173-4735 Right hand console mounting bracket $53.68 1 usually ships 1-5 days
8 173-4733 Washer 5/16 retension pushnut $2.11 4 usually ships 1-5 days
9 173-4734 Spacer $29.48 4 usually ships 1-5 days
10 999-1340 Screw 5/16-18 x 2 1/2 truss head stainless steel $2.90 4 usually ships 1-5 days
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
