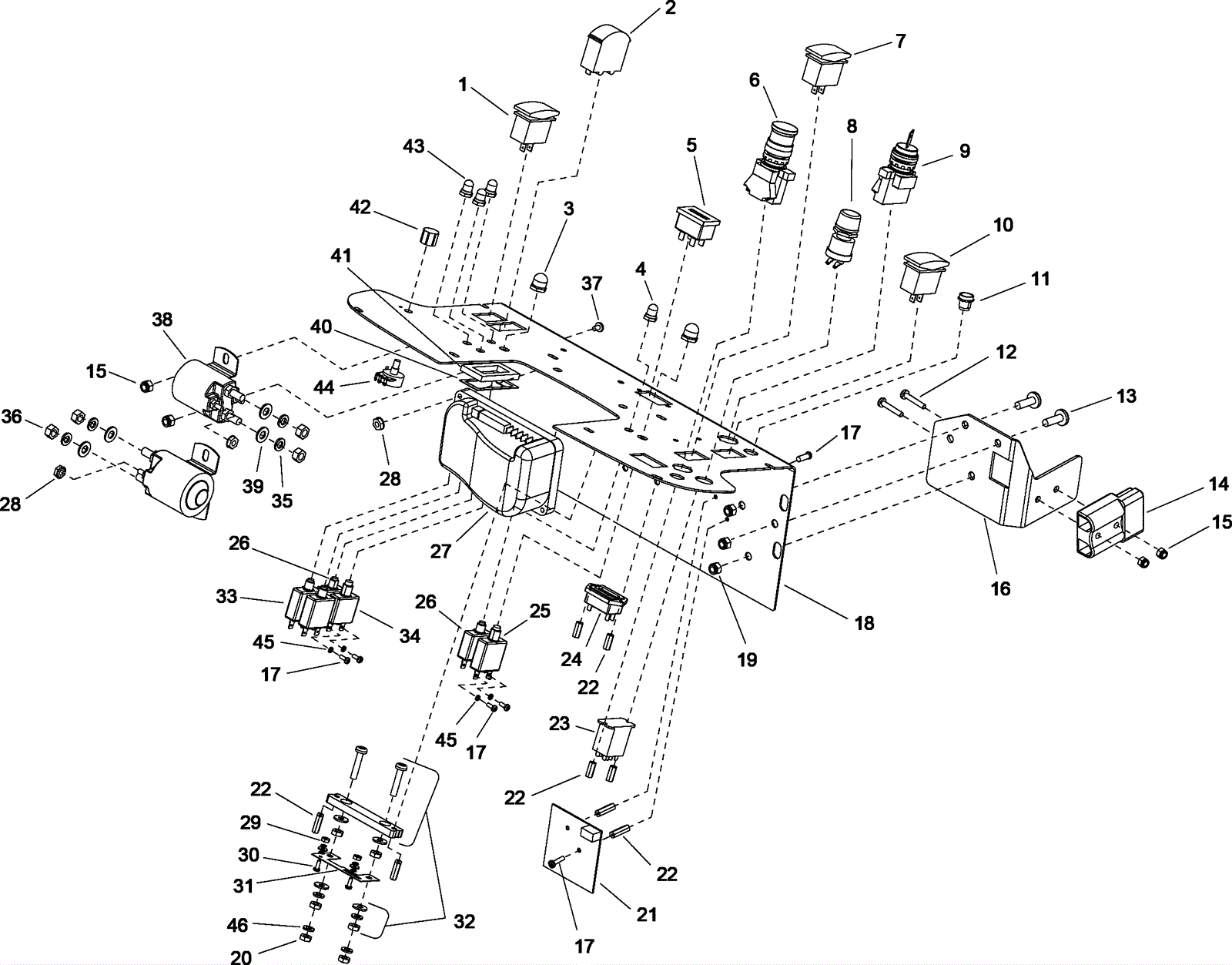

CHARIOT ISCRUB SERIES 1 Control Panel Assembly - Standard - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 189-0321 3 position rocker switch $61.60 1 (brush) usually ships 7-19 days
2 173-4644 50amp meter $152.90 1 usually ships 7-19 days
3a 173-1522 3/8 inch circuit breaker boot $25.30 2 (OEM) ships same day
3b 991-5157 3/8 inch circuit breaker boot $2.11 2 (NON-OEM) ships same day
4 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
5 173-4643 36V battery meter $123.20 1 usually ships 7-19 days
6 173-1531 Emergency stop switch $292.60 1 usually ships 1-5 days
7 173-4642 Fixed position rocker switch (OBSOLETE) $157.30 1 ships same day
8 173-3502 Momentary switch $77.55 1 usually ships 7-19 days
9a 173-8560 Master key switch $328.96 1 usually ships 7-19 days
9b 173-3958 Key (pkg of 2) $29.81 1 ships same day
10 273-8956 2 position rocker switch $45.43 1 usually ships 7-19 days
11 173-4641 Push button switch $97.90 1 usually ships 7-19 days
12 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
13 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 3 ships same day
14 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
15 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
16 273-5771 Bracket $41.14 1 usually ships 1-5 days
17 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 8 ships same day
18 173-6022 Control panel $133.10 1 usually ships 1-5 days
19 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
20 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
21 173-8361 Circuit board with potentiometer (OBSOLETE) $383.90 1 usually ships 7-19 days
22 173-1520 Nylon standoff $6.66 8 ships same day
23 273-0032 Relay $71.50 1 usually ships 7-19 days
24 173-1160 LED hour meter $213.40 1 usually ships 7-19 days
25a 991-1629 35amp circuit breaker $11.54 1 (after SN 1000170493) (standard) (propel motor) ships same day
25b 991-1632 25amp circuit breaker $7.91 1 (after SN 1000157500) (cylindrical) (propel motor) usually ships 14-30 days
26 991-1624 3amp circuit breaker $15.51 2 ships same day
27a 273-0064 Drive controller $859.10 1 (chain) usually ships 7-19 days
27b 173-4645 Drive controller $773.30 1 (gear) usually ships 7-19 days
28 173-2472 Nut 10-32 with star washer $0.99 10 usually ships 1-5 days
29 173-3909 Nut 6-32 hex brass $0.99 2 usually ships 1-5 days
30 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated $0.99 2 ships same day
31 173-6023 15amp shunt $55.55 1 usually ships 1-5 days
32 173-4647 Shunt mounting block $29.59 1 usually ships 1-5 days
33 273-0038 18amp circuit breaker $38.39 2 (brush motor) usually ships 7-19 days
34 991-1629 35amp circuit breaker $11.54 1 (vacuum motor) ships same day
35 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
36 173-5044 Nut 1/4-28 stop elastic $1.96 4 usually ships 1-5 days
37 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel $2.66 4 usually ships 7-19 days
38 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 2 ships same day
39 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
40 173-1164 Meter retaining plate $4.11 1 usually ships 1-5 days
41 173-4344 Meter gasket $9.41 1 usually ships 1-5 days
42 173-8240 Knob $24.20 1 usually ships 7-19 days
43 189-0312 3/8 inch circuit breaker boot $59.75 3 usually ships 11-24 days
44 173-1523 Potentiometer $73.76 1 usually ships 7-19 days
45 999-0051 Washer #6 medium split lock $0.99 4 ships same day
46 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
