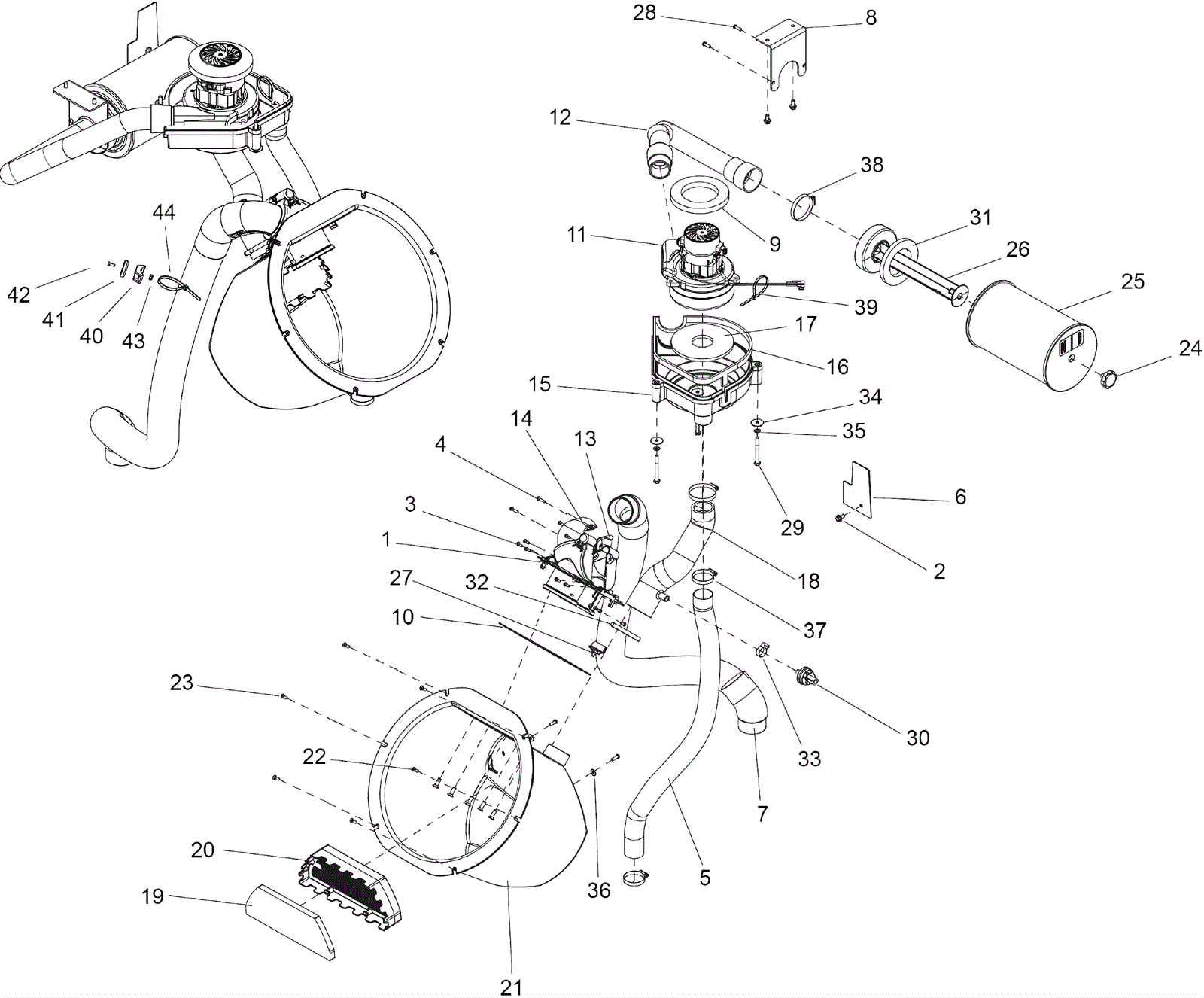

KIRA CV 60/1 Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3798 Cage nut $2.78 5 usually ships 7-19 days
2 273-0640 Screw 1/4 x 1/2 inch whiz loc flange $0.99 3 usually ships 7-19 days
3 273-3799 Screw M4 x 14mm pan head $2.09 9 usually ships 7-19 days
4 273-3800 Screw M4 x 25mm pan head $2.86 2 usually ships 7-19 days
5 273-3801 1 1/2 inch vac cooling hose $13.75 1 usually ships 7-19 days
6 273-3802 Hose hole cover $10.34 1 usually ships 7-19 days
7 273-3803 2 inch hose diverter valve $42.57 1 usually ships 7-19 days
8 273-3804 HEPA filter mounting bracket $18.37 1 usually ships 7-19 days
9 273-3805 Vacuum top gasket $6.00 1 usually ships 7-19 days
10 273-3806 Bag box upper gasket $18.26 1 usually ships 7-19 days
11 273-3807 36V vacuum motor with snout $137.50 1 usually ships 7-19 days
12 273-3808 Hose with cuffs $26.18 1 usually ships 7-19 days
13 273-3809 Lower diverter valve $26.84 1 usually ships 7-19 days
14 273-3810 Upper diverter valve $26.84 1 usually ships 7-19 days
15 273-3811 Vac motor housing $32.12 1 usually ships 7-19 days
16 273-3812 Vacuum housing gasket $11.33 1 usually ships 7-19 days
17 273-3813 Vacuum bottom gasket $9.13 1 usually ships 7-19 days
18 273-3814 Vacuum hose $25.41 1 usually ships 7-19 days
19 273-3815 Filter bag box $7.98 1 usually ships 7-19 days
20 273-3816 Filter holder $13.97 1 usually ships 7-19 days
21 273-3817 Vacuum bag box $190.71 1 ships same day
22 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 5 ships same day
23 999-9148 Screw 10-32 x 5/8 flat head phillips stainless steel $0.99 6 ships same day
24 273-2956 Screw 3/8-16 x 1/2 thumb rosette $15.73 1 usually ships 7-19 days
25 273-2953 HEPA/Carbon filter $82.51 1 usually ships 7-19 days
26 273-2957 Filter mount post $33.66 1 usually ships 7-19 days
27 273-5414 Interlock switch $19.58 1 ships same day
28 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 4 usually ships 7-19 days
29 173-2558 Bolt 1/4-20 x 2 1/2 hex head stainless steel $5.50 3 usually ships 1-5 days
30 173-9856 Vacuum switch $214.53 1 usually ships 7-19 days
31 273-0910 Vacuum bracket gasket $28.93 1 usually ships 7-19 days
32 273-6930 Hose clamp $3.33 1 usually ships 7-19 days
33 173-1821 Hose clamp $6.39 1 ships same day
34 999-6684 Washer 1/4 flat stainless steel $0.99 3 ships same day
35 999-1049 Washer 1/4 split lock zinc plated $0.99 3 ships same day
36 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
37 997-2000 Hose clamp $2.37 2 ships same day
38 997-2007 Hose clamp $2.07 2 ships same day
39 273-3820 11 inch cable tie $0.41 1 ships same day
40 273-3818 Mount bundle $4.07 1 usually ships 7-19 days
41 273-3819 Magnet $20.35 1 usually ships 7-19 days
42 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated $0.99 1 ships same day
43 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
44 273-3820 11 inch cable tie $0.41 1 ships same day
