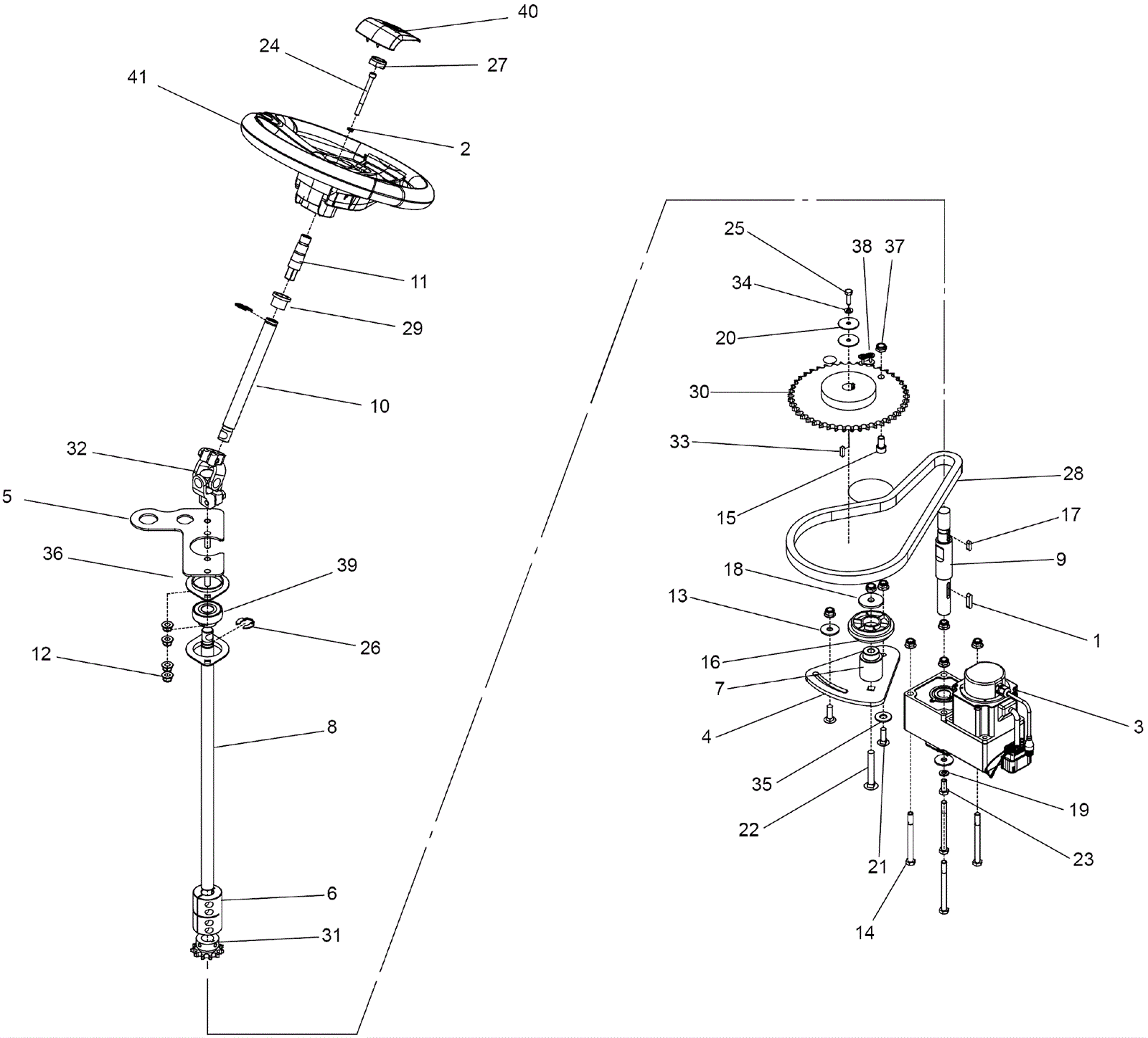

KIRA CV 60/1 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3789 Key $3.96 1 usually ships 7-19 days
2 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
3 273-3790 36V steering motor $2,717.00 1 usually ships 7-19 days
4 273-3791 Tensioner bracket $19.58 1 usually ships 7-19 days
5 273-3792 Steering bearing bracket $17.71 1 usually ships 7-19 days
6 273-3793 Coupler shaft $53.57 1 usually ships 7-19 days
7 273-3794 Chain tensioner sleeve $6.44 1 usually ships 7-19 days
8 273-3795 19 inch lower steering shaft $50.60 1 usually ships 7-19 days
9 273-3757 Latch box $14.85 1 usually ships 7-19 days
10 273-3796 8 inch upper steering shaft $35.31 1 usually ships 7-19 days
11 273-3797 Wheel stub $30.03 1 usually ships 7-19 days
12 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 10 ships same day
13 273-7219 Washer $1.64 2 usually ships 7-19 days
14 999-0977 Screw 5/16-18 x 3 1/2 hex head stainless steel $2.62 4 ships same day
15 273-7255 Screw 3/8-16 x 5/8 cap socket head $4.75 1 usually ships 7-19 days
16 173-5988 Chain tensioner $35.86 1 usually ships 7-19 days
17 181-0942 Square keyway $48.32 1 usually ships 16-41 days
18 173-2582 Washer 25/64 x 1 1/2 flat $0.99 1 usually ships 1-5 days
19 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
20 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
21 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
22 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel $3.61 1 ships same day
23 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 1 ships same day
24 999-0991 Screw 1/4-20 x 2 1/2 socket head alloy plain finish $0.99 1 ships same day
25 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
26 173-3445 Ring clip $20.57 2 usually ships 7-19 days
28 273-1063 Chain $45.21 1 usually ships 1-5 days
29 173-7161 Flanged bearing $15.07 1 usually ships 7-19 days
30 173-5560 Steering sprocket $134.20 1 usually ships 7-19 days
31 173-5557 Sprocket $51.15 1 usually ships 7-19 days
32 173-5554 Universal female joint $183.70 1 usually ships 7-19 days
33 173-9111 Square keyway $5.03 1 usually ships 7-19 days
34 999-1049 Washer 1/4 split lock zinc plated $0.99 1 ships same day
35 173-3985 Washer 7/16 flat stainless steel $1.21 1 usually ships 7-19 days
36 173-3536 Flanged bearing $13.42 2 usually ships 7-19 days
37 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
38 173-1065 Master link #40 1/2 chain $6.55 1 usually ships 1-5 days
39 173-5558 3/4 inch ball bearing $16.06 1 ships same day
40 273-3220 Steering wheel cap $33.66 1 usually ships 1-5 days
41 273-7093 Steering wheel $180.40 1 usually ships 7-19 days
