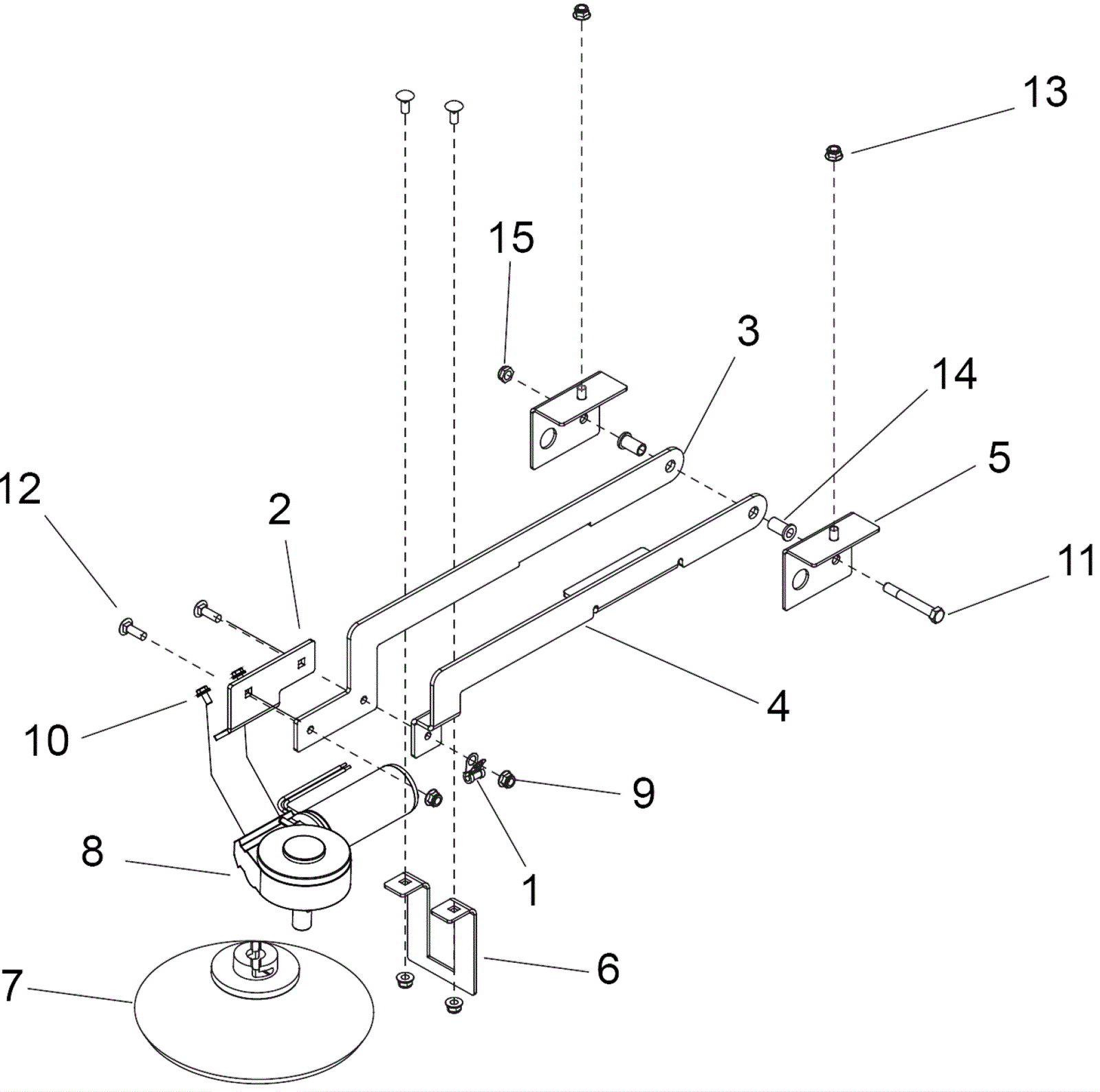

KIRA CV 60/1 Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0583 Side broom p-clip $26.84 1 usually ships 7-19 days
2 273-3782 Motor mount bracket $10.95 1 usually ships 7-19 days
3 273-3783 Brush lift arm $22.22 1 usually ships 7-19 days
4 273-3784 Lift arm connector $30.03 1 usually ships 7-19 days
5 273-3785 Lift pivot bracket $14.41 2 usually ships 7-19 days
6 273-3786 Lift arm guide bracket $14.41 1 usually ships 7-19 days
7 273-3787 Polypropylene spin-on brush $46.85 1 usually ships 7-19 days
8 273-3788 36V motor assembly $332.20 1 usually ships 7-19 days
9 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 6 ships same day
10 999-1801 Screw M6 X 12mm hex head flange $2.79 2 ships same day
11 173-5637 Screw 3/8-16 x 2 3/4 hex head cap stainless steel $7.82 1 usually ships 1-5 days
12 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
13 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
14 173-5520 Flanged bearing $13.86 2 usually ships 7-19 days
15 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
