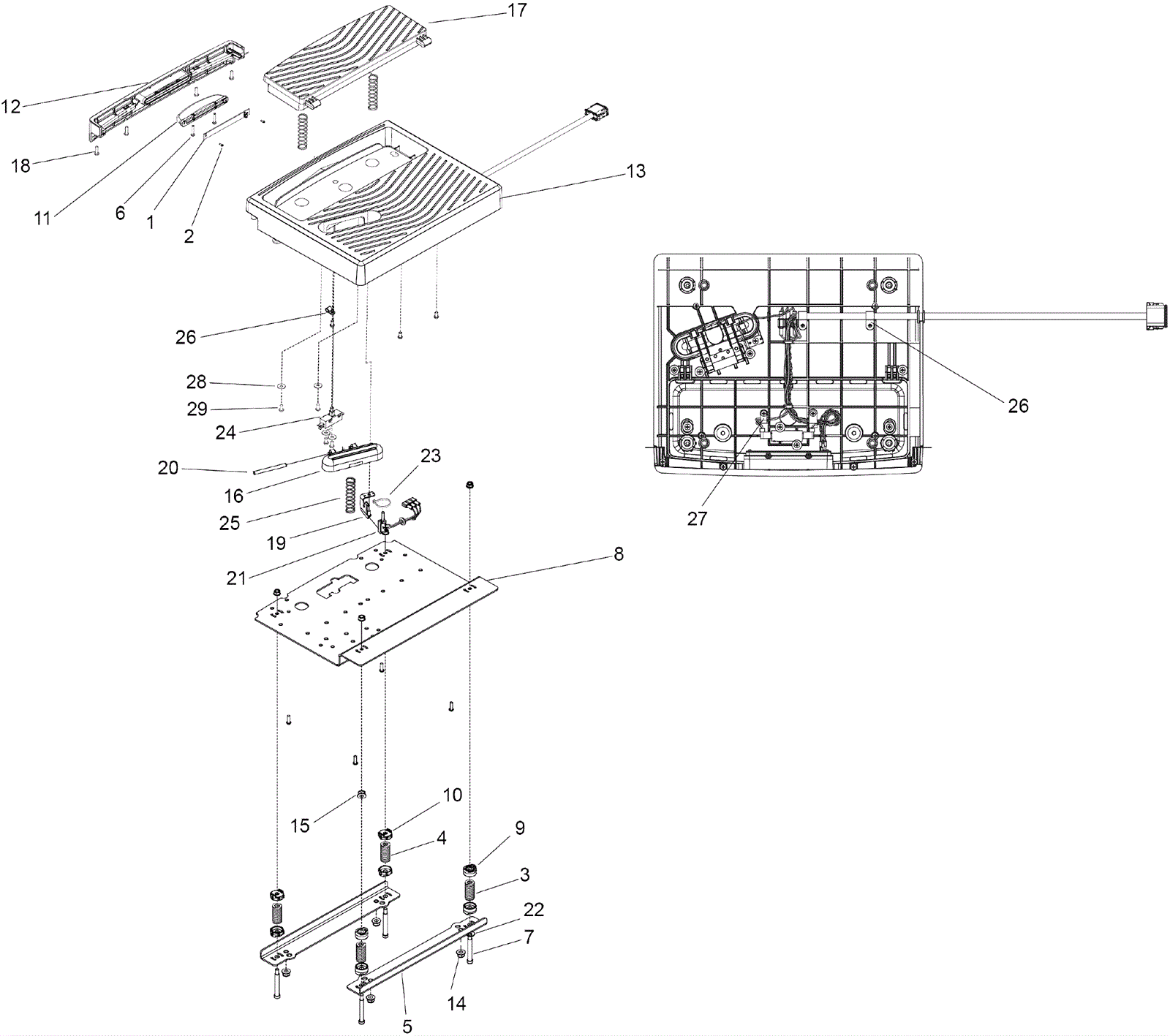

KIRA CV 60/1 Platform Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3749 LED board $60.50 1 usually ships 7-19 days
2 273-3752 Screw M2.5 x 6mm pan head $3.08 2 usually ships 7-19 days
3 273-3762 Spring $16.94 2 usually ships 7-19 days
4 273-3763 Spring $0.99 2 usually ships 7-19 days
5 273-3764 Spring bracket $24.97 2 usually ships 7-19 days
6 273-3765 Screw M3.5 x 22mm $4.95 2 usually ships 7-19 days
7 273-3766 Stripper bolt $6.66 4 usually ships 7-19 days
8 273-3767 Operator platform base plate $85.80 1 usually ships 7-19 days
9 273-3768 Spring bushing $3.41 4 usually ships 7-19 days
10 273-3769 Spring bushing $3.41 4 usually ships 7-19 days
11 273-3759 5 inch light element pipe $26.18 1 usually ships 7-19 days
12 273-3770 Rear platform cover $16.39 1 usually ships 7-19 days
13 273-3771 Operator platform $63.80 1 usually ships 7-19 days
14 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 4 ships same day
15 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
16 273-7259 Accelerator pedal (yellow) $69.30 1 usually ships 7-19 days
17 273-7258 Heel pedal (black) $101.75 1 ships same day
18 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 8 usually ships 7-19 days
19 173-7212 Linear potentiometer bracket $18.04 1 usually ships 7-19 days
20 173-7213 Steel dowel pin $24.20 1 usually ships 7-19 days
21 173-7217 Linear potentiometer assembly $135.30 1 usually ships 7-19 days
22 999-1094 Washer 5/16 bonded sealing stainless steel $0.99 4 ships same day
23 173-0822 Wire tie $0.99 1 usually ships 7-19 days
24 173-2007 SPDT 20A snap action switch $53.68 1 usually ships 7-19 days
25 173-5493 Spring $10.62 3 usually ships 7-19 days
26 173-1709 P clamp (OBSOLETE) $2.30 3 usually ships 7-19 days
27 173-7218 Hose clamp (OBSOLETE) $0.99 1 usually ships 1-5 days
28 273-5591 Washer M5 flat stainless steel $1.82 8 usually ships 7-19 days
29 273-5604 Screw $0.99 13 ships same day
