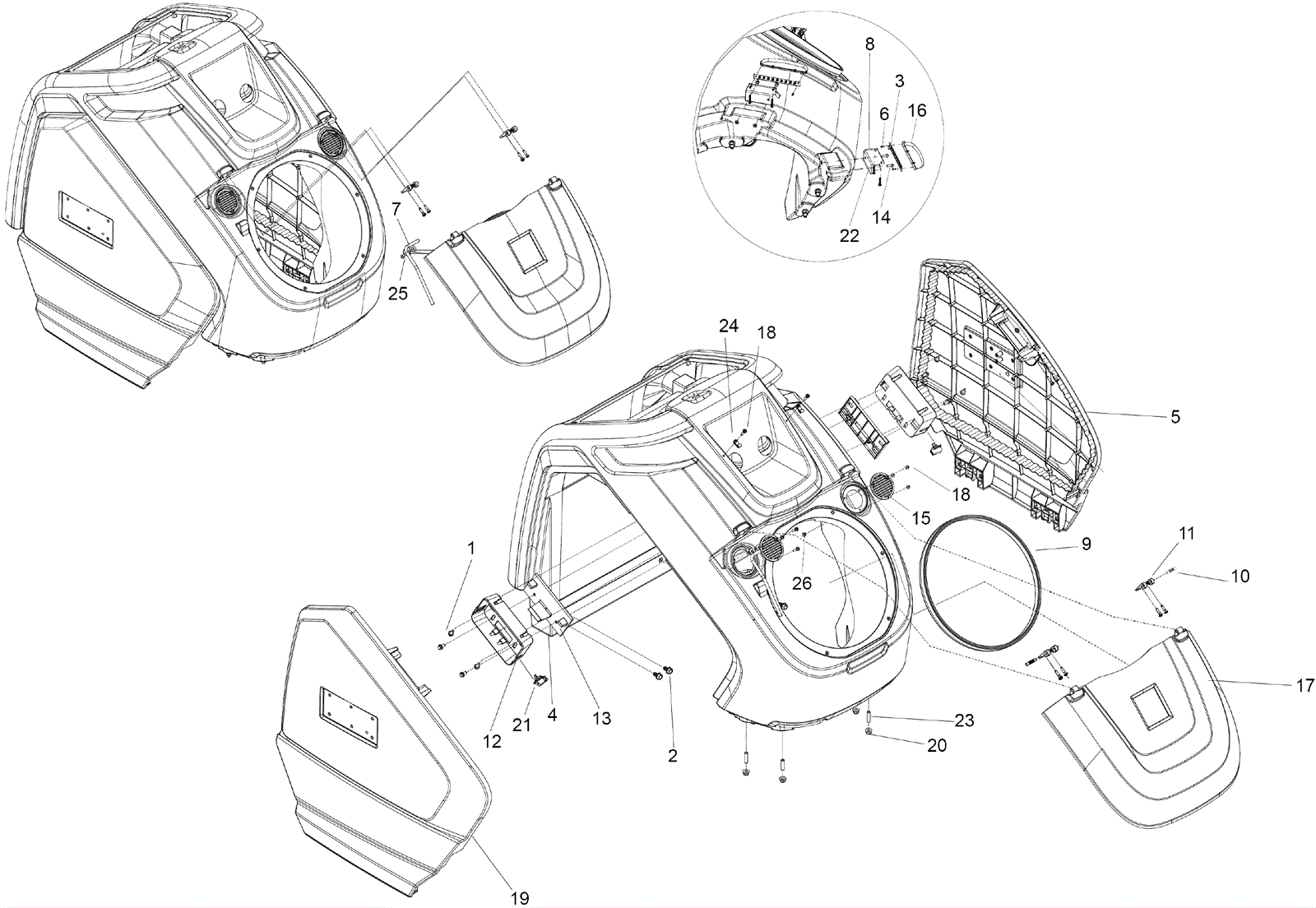

KIRA CV 60/1 Main Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0640 Screw 1/4 x 1/2 inch whiz loc flange $0.99 8 usually ships 7-19 days
2 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 4 ships same day
3 273-3749 LED board $60.50 2 usually ships 7-19 days
4 273-3750 Main body trim $784.30 1 usually ships 7-19 days
5 273-3751 Left hand door $228.80 1 usually ships 7-19 days
6 273-3752 Screw M2.5 x 6mm pan head $3.08 4 usually ships 7-19 days
7 N/A Not available Call for price 1 (lid prop rod) usually ships 3-26 days
8 273-3753 Front light bracket $12.54 2 usually ships 7-19 days
9 273-3754 44 1/4 inch sealing gasket $115.50 1 usually ships 7-19 days
10 273-3755 Dowel pin Call for price 2 usually ships 7-19 days
11 273-3756 Lid hinge $6.66 2 usually ships 7-19 days
12 273-3757 Latch box $14.85 2 usually ships 7-19 days
13 273-0676 Latch retainer $10.67 2 usually ships 7-19 days
14 999-9151 Screw #10-32 x 1/2 truss head phillips $0.99 4 usually ships 11-24 days
15 273-3758 Air intake cover $6.93 2 usually ships 7-19 days
16 273-3759 5 inch light element pipe $26.18 2 usually ships 7-19 days
17 273-3760 Front lid $82.50 1 usually ships 7-19 days
18 273-8440 Screw (OBSOLETE) $5.48 16 usually ships 7-19 days
19 273-3761 Right hand door $228.80 1 usually ships 7-19 days
20 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 4 ships same day
21 273-5414 Interlock switch $19.58 2 ships same day
22 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 4 ships same day
23 999-9117 Screw 5/16-18 x 1 3/4 socket cup point set stainless steel $2.70 4 ships same day
24 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 2 usually ships 7-19 days
25 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
