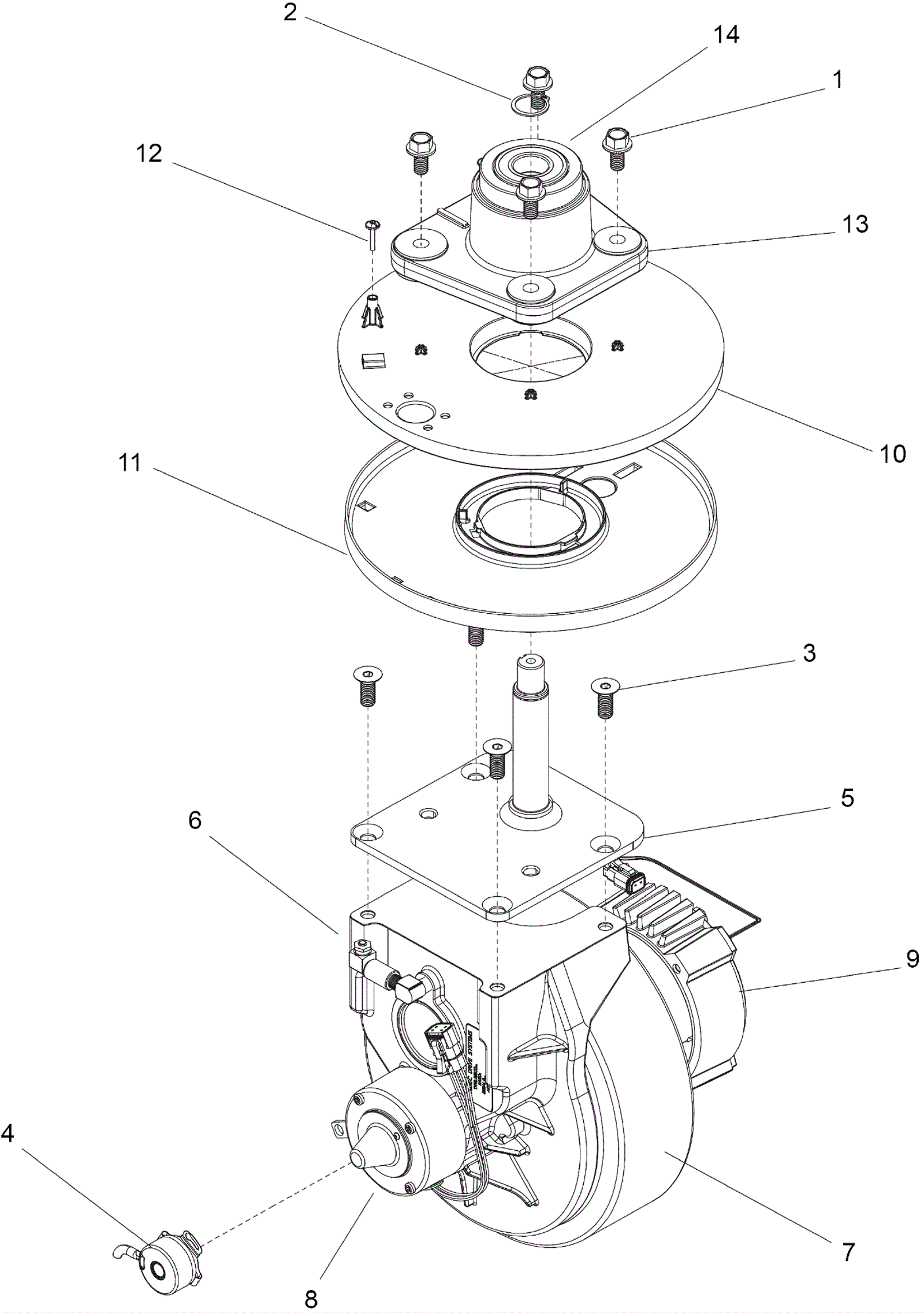

KIRA CV 60/1 Front Drive

#PartDescriptionPriceReqNotesAvailability
1 273-0688 Screw 3/16-16 x 3/4 inch whiz loc $3.09 4 usually ships 7-19 days
2 273-0689 External retaining ring Call for price 1 usually ships 7-19 days
3 273-0690 Screw M10 x 25mm $1.10 4 usually ships 7-19 days
4 273-0691 Incremental encoder $961.40 1 usually ships 7-19 days
5 273-0692 Steering pivot bracket $107.25 1 usually ships 7-19 days
6a 273-0693 Drive wheel $1,941.50 1 usually ships 7-19 days
6b 273-0694 Drive wheel thermistor $270.60 1 usually ships 7-19 days
6c 273-0695 Oil seal set $273.90 1 usually ships 7-19 days
7 273-0696 Wheel $757.90 1 usually ships 7-19 days
8 273-0697 Drive wheel brake $535.70 1 usually ships 7-19 days
9 273-0698 Drive wheel motor $944.90 1 usually ships 7-19 days
10 273-0699 Upper traction motor cable guide plate $39.05 1 usually ships 7-19 days
11 273-0700 Lower traction motor cable guide plate $37.95 1 usually ships 7-19 days
12 273-8440 Screw (OBSOLETE) $5.48 2 usually ships 7-19 days
13 273-7246 Front drive bearing block assembly $383.90 1 usually ships 1-5 days
14 173-4756 Bearing $42.90 1 usually ships 7-19 days
N/S 273-3820 11 inch cable tie $0.41 11 ships same day
N/S 273-0701 Brush set $124.30 1 usually ships 7-19 days
