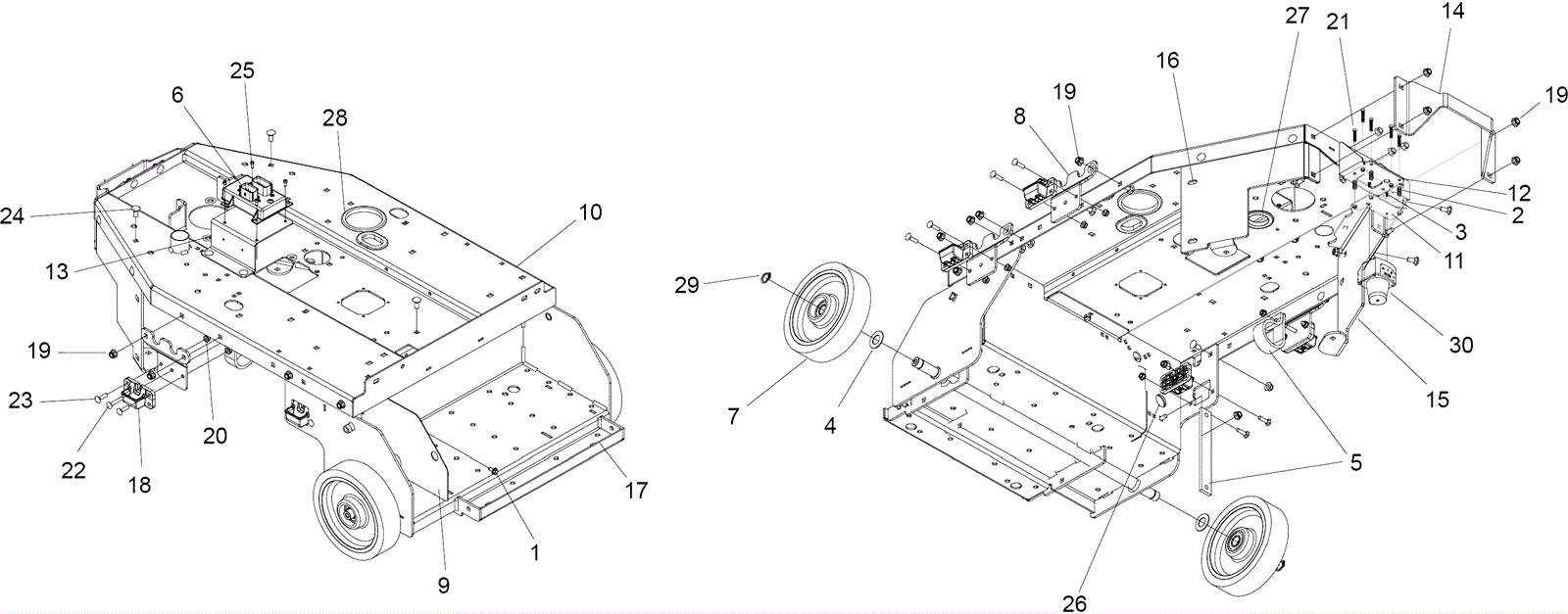

KIRA CV 60/1 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0640 Screw 1/4 x 1/2 inch whiz loc flange $0.99 1 usually ships 14-22 days
2 273-0687 Compression spring $3.69 3 usually ships 14-22 days
3 273-0673 Screw M3 hex head $0.99 2 usually ships 14-22 days
4 273-0674 Washer $5.50 2 usually ships 14-22 days
5 273-0675 Rubber strap $21.56 2 usually ships 14-22 days
6 273-0676 Latch retainer $10.67 1 usually ships 14-22 days
7 273-0677 Wheel $66.00 2 usually ships 14-22 days
8 273-0678 Bracket door hinge $22.55 3 usually ships 14-22 days
9 273-0679 Plate divider $21.34 1 usually ships 14-22 days
10 273-0680 Primary frame $475.20 1 usually ships 14-22 days
11 273-0681 Lower lidar mount bracket $10.67 1 usually ships 14-22 days
12 273-0682 Lidar mount plate $47.96 1 usually ships 14-22 days
13 273-0683 Controller module bracket $21.12 1 usually ships 14-22 days
14 273-0684 Lidar bracket guard plate $39.05 1 usually ships 14-22 days
15 N/A Not available Call for price 1 (front left hand frame bracket) usually ships 3-26 days
16 N/A Not available Call for price 1 (front right hand frame bracket) usually ships 3-26 days
17 273-0685 Foot box frame $300.30 1 usually ships 14-22 days
18 273-0686 Oval tappered knob $9.79 4 usually ships 14-22 days
19 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 27 ships same day
20 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 9 ships same day
21 373-1308 Screw $0.99 3 usually ships 14-22 days
22 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel $5.50 1 ships same day
23 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel $1.23 8 ships same day
24 173-7043 Screw 10-32 x 1 phillips pan head green $4.73 27 usually ships 1-5 days
25 173-5585 Screw 8-32 x 3/8 socket head stainless steel $1.52 4 usually ships 14-22 days
26 173-5602 Horn $147.40 1 usually ships 14-22 days
27 173-3551 Grommet $31.46 2 usually ships 1-5 days
28 173-5474 Grooved grommet $29.04 1 usually ships 14-22 days
29 173-3286 3/4 inch extended snap ring $5.72 2 usually ships 14-22 days
30 173-3286 3/4 inch extended snap ring $5.72 1 usually ships 14-22 days
