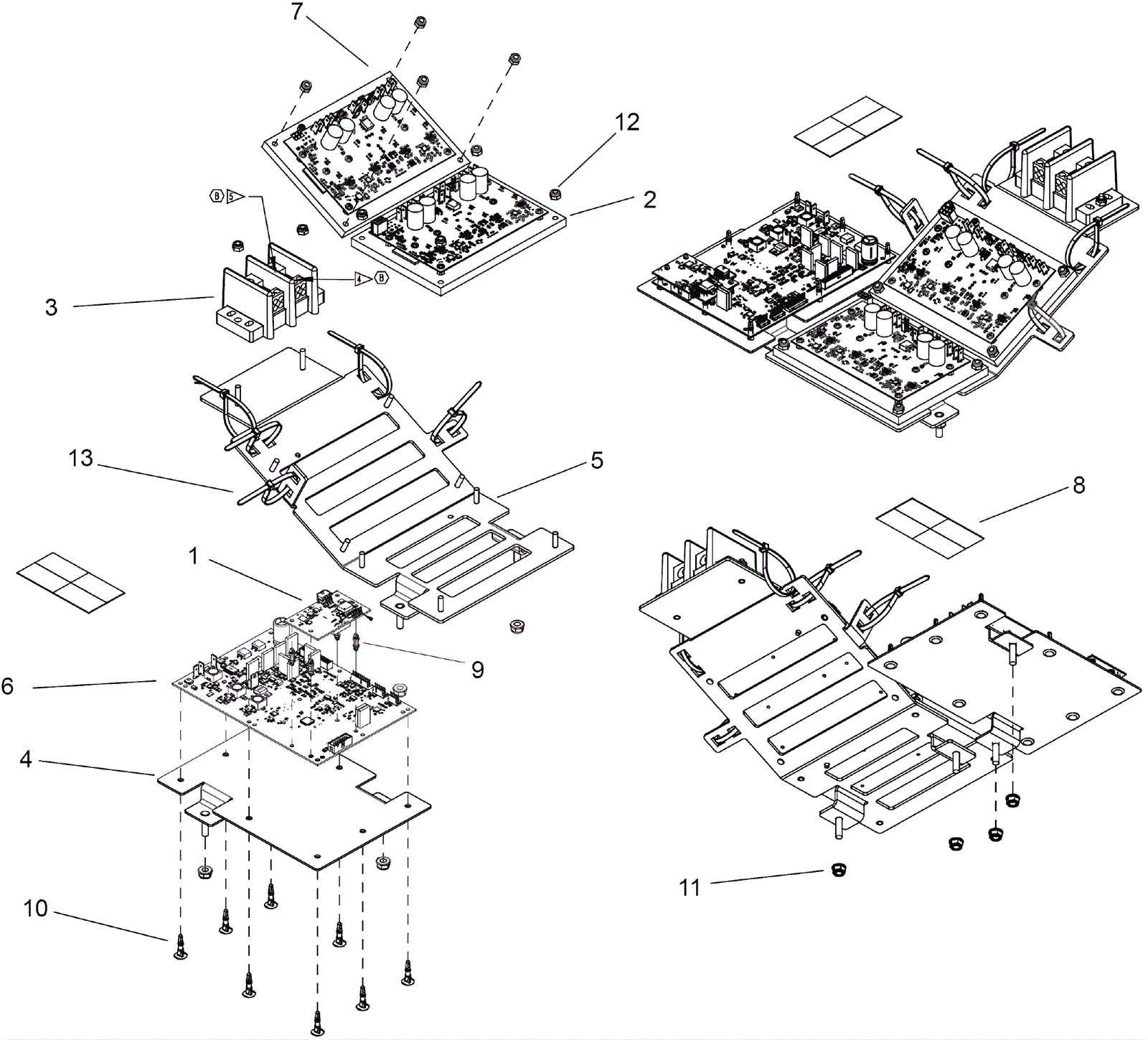

KIRA CV 60/1 Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0658 LED control board $251.90 1 usually ships 14-22 days
2 273-0659 Vacuum and sidebroom motor $379.50 1 usually ships 14-22 days
3 273-0660 Battery distribution block $93.50 1 usually ships 14-22 days
4 273-0661 Control console VCM bracket $32.67 1 usually ships 14-22 days
5 273-0662 Control console DMC bracket $92.40 1 usually ships 14-22 days
6 273-0663 Main VCM board $766.70 1 usually ships 14-22 days
7 273-0664 DMC traction and brush motor $379.50 1 usually ships 14-22 days
8 273-8655 Tape $5.28 4 usually ships 14-22 days
9 273-0665 Clinch standoff $21.56 4 usually ships 14-22 days
10 273-0666 Nylon keystone standoff $2.06 8 usually ships 14-22 days
11 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
12 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 10 ships same day
13 273-3820 11 inch cable tie $0.41 4 ships same day
