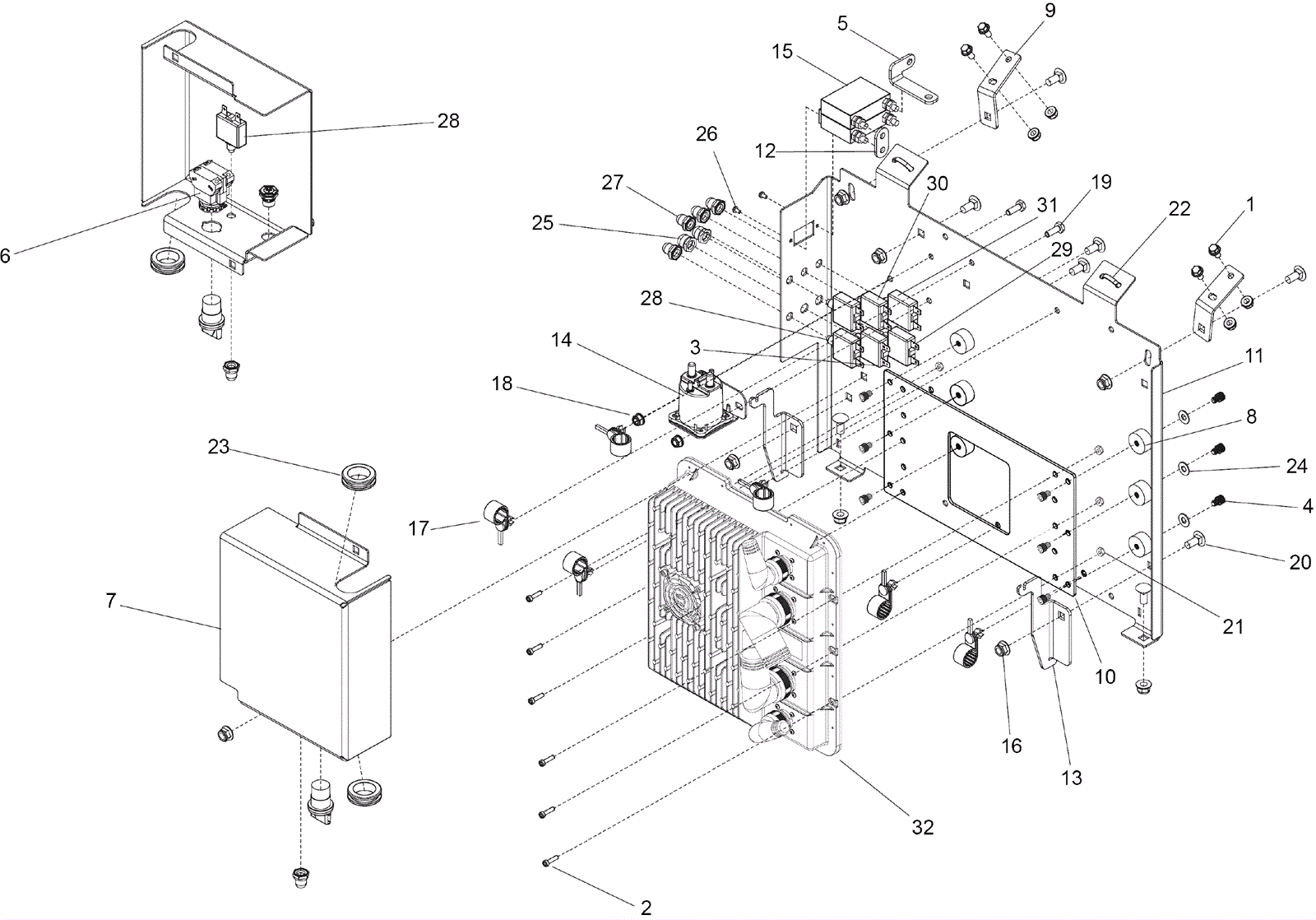

KIRA CV 60/1 Bulkhead Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0640 Screw 1/4 x 1/2 inch whiz loc flange $0.99 4 usually ships 7-19 days
2 273-0641 Screw 8/32 x 3/4 inch $0.99 6 usually ships 7-19 days
3 273-0642 25A circuit breaker $11.00 1 usually ships 7-19 days
4 273-0643 Screw 1/4-20 x 5/16 inch hex socket head $1.21 12 usually ships 7-19 days
5 273-0644 Busbar bracket $5.94 1 usually ships 7-19 days
6 273-0645 Manual to autonomous switch $67.65 1 usually ships 7-19 days
7 273-0646 Autonomous circuit breaker bracket $57.20 1 usually ships 7-19 days
8 273-0647 Mount isolator 1/4-20 inch thread $10.62 6 usually ships 7-19 days
9 273-0648 Latching box bracket $5.83 2 usually ships 7-19 days
10 273-0649 Controller mount plate $30.58 1 usually ships 7-19 days
11 273-0650 Dividing wall panel $130.90 1 usually ships 7-19 days
12 273-0651 Main switch bracket $3.85 1 usually ships 7-19 days
13 273-0652 Bracket spring bracket $13.09 2 usually ships 7-19 days
14 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 1 ships same day
15 273-7230 60amp breaker $195.80 1 usually ships 7-19 days
16 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 8 ships same day
17 273-3431 P clamp $13.09 6 usually ships 1-5 days
18 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 6 ships same day
19 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 2 ships same day
20 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 8 ships same day
21 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 6 ships same day
22 273-3820 11 inch cable tie $0.41 2 ships same day
23 173-1681 Grommet $0.99 2 usually ships 7-19 days
24 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
25a 173-1522 3/8 inch circuit breaker boot $25.30 2 ships same day
25b 991-5157 3/8 inch circuit breaker boot $2.11 2 (NON-OEM) ships same day
26 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 2 ships same day
27 189-0312 3/8 inch circuit breaker boot $59.75 5 usually ships 11-24 days
28 189-4092 15amp circuit breaker $15.55 2 usually ships 7-19 days
29 991-1629 35amp circuit breaker $11.54 1 ships same day
30 273-0038 18amp circuit breaker $38.39 2 usually ships 7-19 days
31 273-6133 2amp circuit breaker $73.15 1 usually ships 1-5 days
32 273-6133 2amp circuit breaker $73.15 1 usually ships 1-5 days
