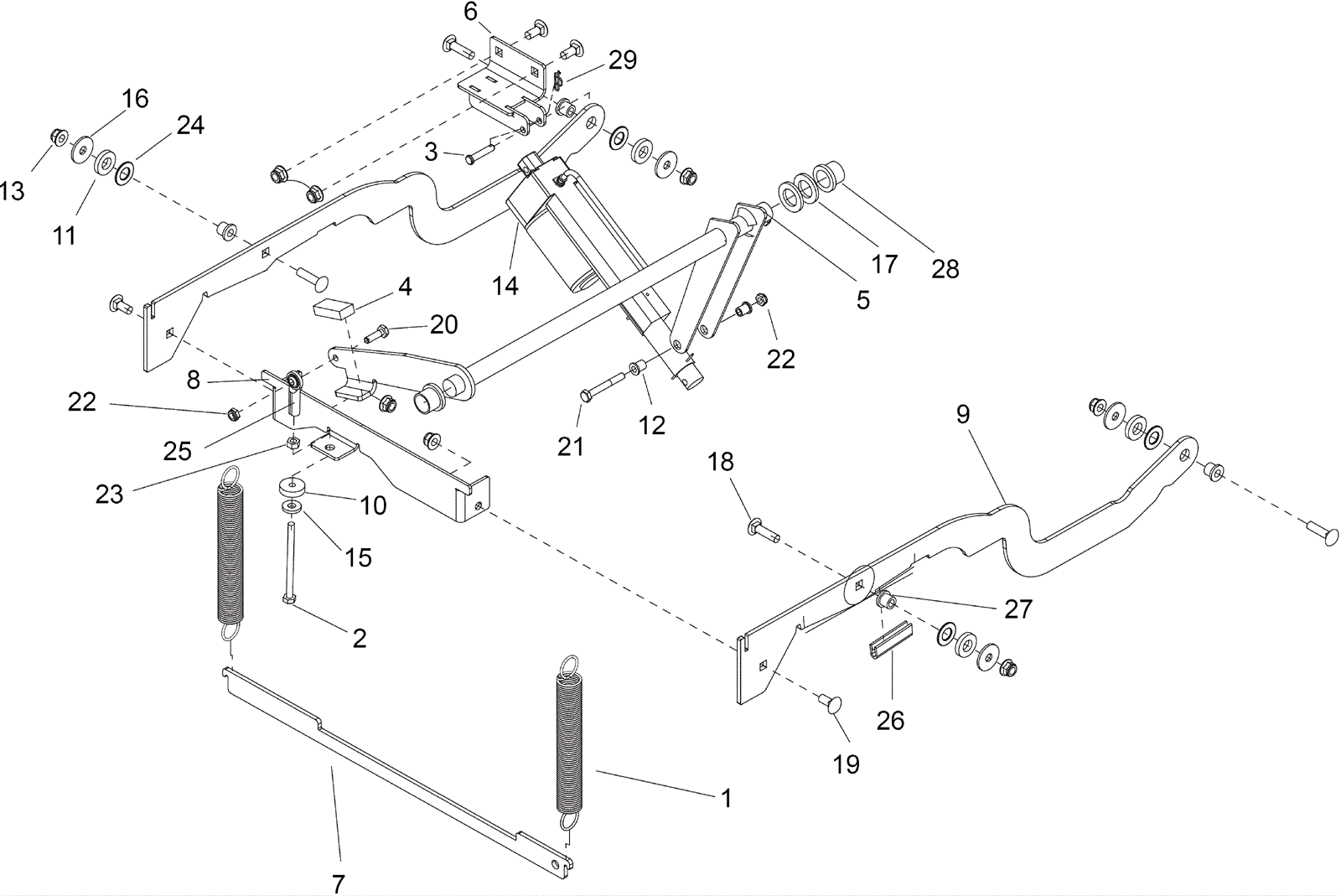

KIRA CV 60/1 Brush Deck Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0630 Extension spring $9.13 2 usually ships 7-19 days
2 273-0631 Screw 1/4-28 x 3 1/2 hex head $3.41 1 usually ships 7-19 days
3 273-0632 Locking pin $2.42 1 usually ships 7-19 days
4 273-0633 Pad lift arm $4.73 1 usually ships 7-19 days
5 273-0634 Brush deck lifter $64.35 1 usually ships 7-19 days
6 273-0635 Actuator mount bracket $27.94 1 usually ships 7-19 days
7 273-0636 Spring mount bracket $15.73 1 usually ships 7-19 days
8 273-0637 Deck lift bracket $20.90 1 usually ships 7-19 days
9 273-0638 Deck lift arm $40.48 2 usually ships 7-19 days
10 273-0639 Washer $1.21 1 usually ships 7-19 days
11 273-7892 Washer 1/2 x 1 neoprene $6.77 4 usually ships 7-19 days
12 173-4441 Bushing 1/4 x 3/8 x 1/2 inch $3.30 2 usually ships 7-19 days
13 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 8 ships same day
14 173-7260 36V actuator $400.48 1 ships same day
15 999-1094 Washer 5/16 bonded sealing stainless steel $0.99 1 ships same day
16 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 4 ships same day
17 999-9154 Washer 3/4 flat nylon $1.45 2 usually ships 11-24 days
18 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 4 ships same day
19 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
20 173-9406 Screw 1/4-20 x 7/8 hex cap plated $2.09 1 usually ships 1-5 days
21 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 1 ships same day
22 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
23 999-0952 Nut 1/4-28 hex stainless steel $0.99 1 ships same day
24 173-3964 Thrust washer $6.44 4 ships same day
25 273-6114 Ball joint $13.42 1 usually ships 1-5 days
26 273-6173 3/16inch grip edging $5.50 1 usually ships 1-5 days
27 173-3116 Flanged bearing $8.47 4 usually ships 7-19 days
28 173-7161 Flanged bearing $15.07 2 usually ships 7-19 days
29 173-1130 Cotter ring $2.42 1 ships same day
