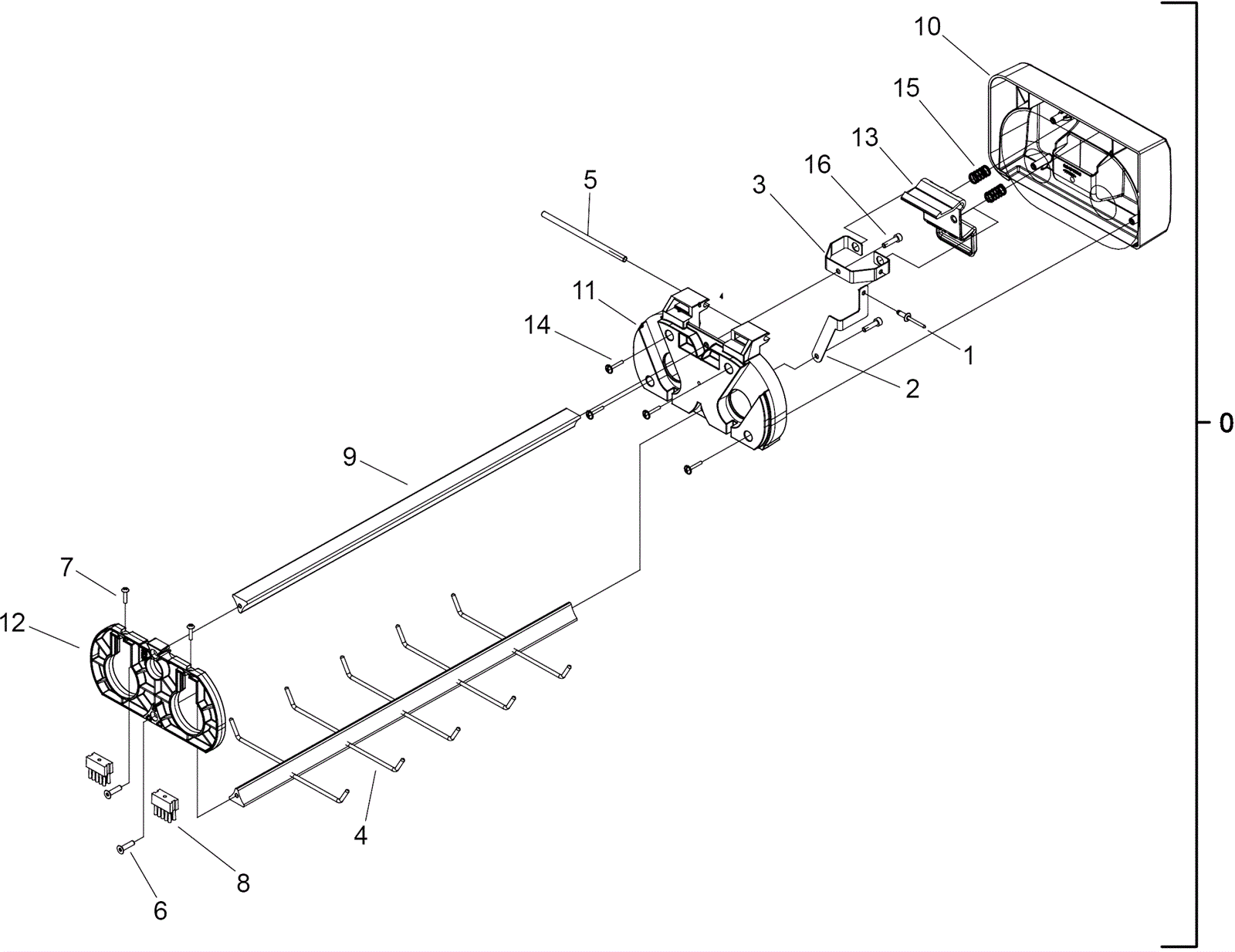

KIRA CV 60/1 Brush Tray Assembly

#PartDescriptionPriceReqNotesAvailability
0 273-0619 Brush tray assembly $210.13 1 (includes 1-16) usually ships 14-22 days
1 273-0620 Rivet $2.30 1 usually ships 14-22 days
2 273-0621 Ground contact brush bar $5.61 1 usually ships 14-22 days
3 273-0622 Ground contact spring $5.12 1 usually ships 14-22 days
4 273-0623 Tray rail $87.45 1 usually ships 14-22 days
5 273-0624 Hinge pin $4.02 1 usually ships 14-22 days
6 273-0589 Screw M5 x 20mm hex head $0.99 2 usually ships 14-22 days
7 273-0590 Screw M35 x 16mm stainless steel $0.99 2 usually ships 14-22 days
8 273-0625 Bearing brush guard $3.45 2 usually ships 14-22 days
9 273-0626 Brush upper tray rail $18.04 1 usually ships 14-22 days
10 273-0627 End cap $15.73 1 usually ships 14-22 days
11 273-0628 Brush tray latching retainer $11.11 1 usually ships 14-22 days
12 273-0629 End plate $6.27 1 usually ships 14-22 days
13 273-0616 Lever handle Call for price 1 usually ships 14-22 days
14 273-8440 Screw (OBSOLETE) $5.48 4 usually ships 14-22 days
15 173-3653 Spring $15.84 2 usually ships 1-5 days
16 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel $4.24 2 ships same day
