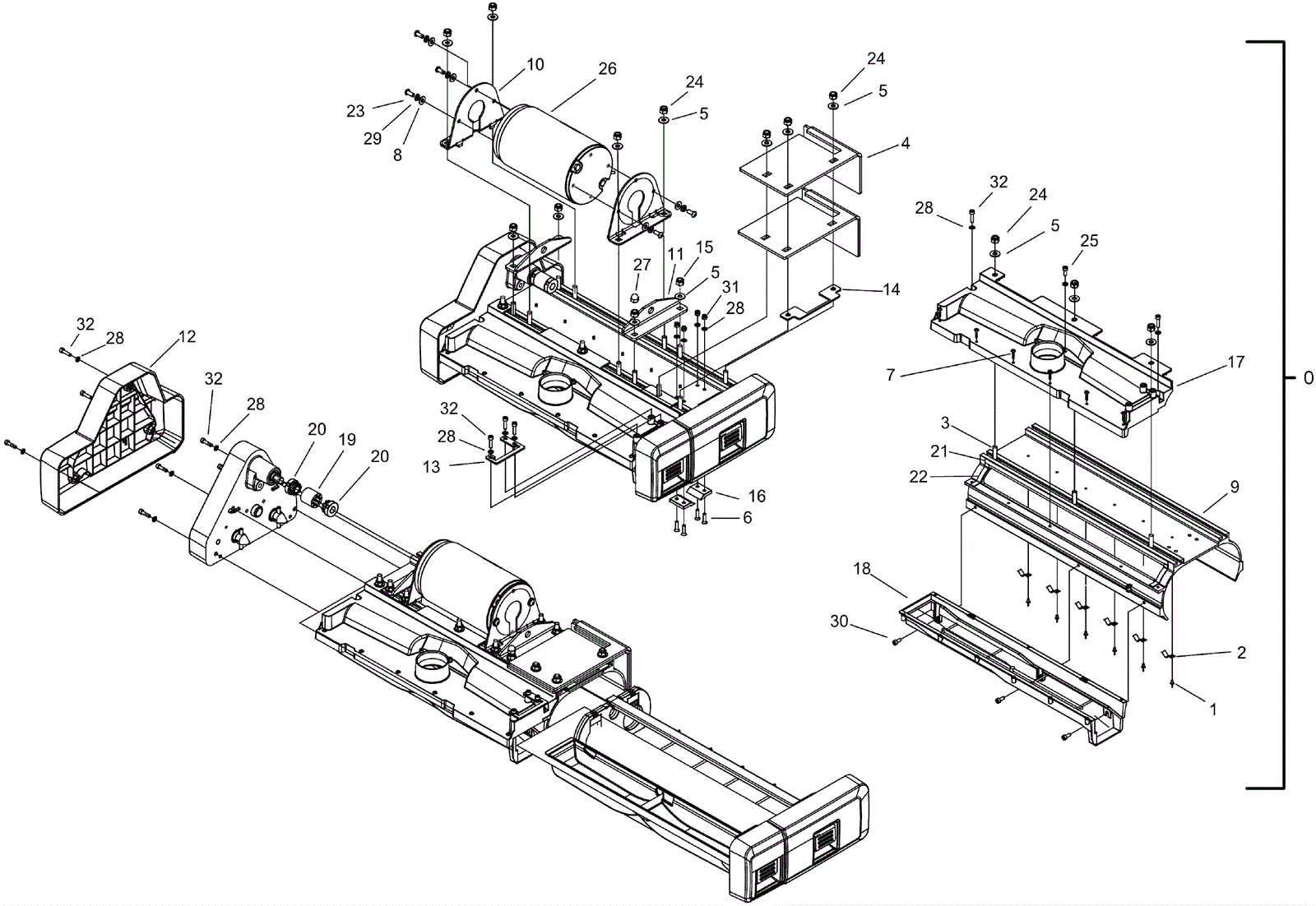

KIRA CV 60/1 Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
0 273-0584 Brush deck assembly $1,507.00 1 (includes 1-32) usually ships 7-19 days
1 273-0585 Rivet $0.99 6 usually ships 7-19 days
2 273-0586 Brush deck ground contact $2.64 6 usually ships 7-19 days
3 273-0587 Screw 5/16-18 x 1 1/8 square base $4.40 13 usually ships 7-19 days
4 273-0588 Counter balance plate $35.31 2 usually ships 7-19 days
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 13 ships same day
6 273-0589 Screw M5 x 20mm hex head $0.99 4 usually ships 7-19 days
7 273-0590 Screw M35 x 16mm stainless steel $0.99 8 usually ships 7-19 days
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 5 ships same day
9 273-0591 Dual brush housing 4 x 20 inch $1,144.00 1 usually ships 7-19 days
10 273-0592 Motor mount bracket $14.74 2 usually ships 7-19 days
11 273-0593 Brush deck pivot bracket $60.50 2 usually ships 7-19 days
12 273-0594 Belt housing cover $28.71 1 usually ships 7-19 days
13 273-0595 Debris tray latching plate $14.41 1 usually ships 7-19 days
14 273-0596 Brush tray latch plate $4.95 1 usually ships 7-19 days
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
16 273-0597 Brush tray slide support $25.52 2 usually ships 7-19 days
17 273-0598 Brush deck suction cover $23.43 1 usually ships 7-19 days
18 273-0599 Slide tray debris $88.55 1 usually ships 7-19 days
19 273-0600 Coupling sleeve $5.48 1 usually ships 7-19 days
20 273-3183 Coupling hub $30.47 2 usually ships 7-19 days
21 273-0601 Gasket $3.89 1 usually ships 7-19 days
22 273-6546 Gasket $1.32 2 usually ships 7-19 days
23 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 5 ships same day
24 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 11 ships same day
25 173-4675 Screw M5 x .8 x 15mm socket head $3.58 1 usually ships 7-19 days
26 173-1743 Brush motor $1,071.40 1 usually ships 7-19 days
27 999-1458 Nut 5/16-18 acorn nickel plated $0.99 1 ships same day
28 999-9100 Washer M5 flat stainless steel $5.83 17 ships same day
29 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
30 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel $3.41 3 usually ships 7-19 days
31 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 4 ships same day
32 273-5592 Screw M5-.8 x 20mm socket head cap stainless steel $4.24 12 ships same day
