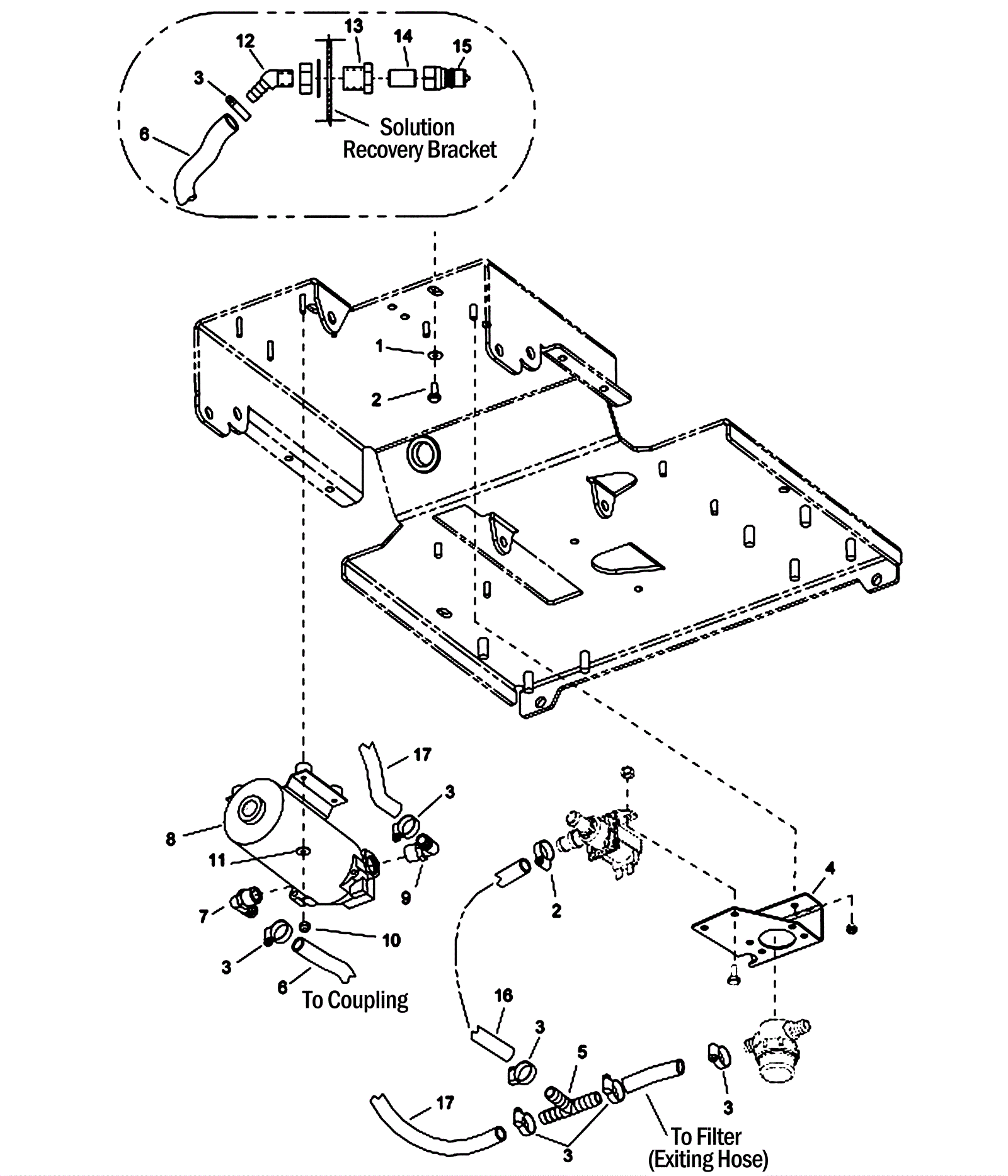

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
2 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
1 |
|
|
3 |
173-1821
|
Hose clamp |
6 |
|
|
4 |
273-0079
|
Solenoid mount filter bracket |
1 |
|
|
5 |
173-3171
|
1/2 inch tee hosebarb |
1 |
|
|
6 |
273-0080
|
Wire bound hose 3/8 x 40 inch |
1 |
|
|
7 |
173-1572
|
Hosebarb 3/8 x 3/8 inch |
1 |
|
|
8 |
173-3176
|
Pump assembly |
1 |
|
|
9 |
173-1072
|
Hosebarb 3/8 x 1/2 inch |
1 |
|
|
10 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
4 |
|
|
11 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
12 |
173-1937
|
1/2 hosebarb |
1 |
|
|
13 |
189-4207
|
Anchor coupling |
1 |
|
|
14 |
189-4213
|
1/4 inch nipple |
1 |
|
|
15 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
16 |
173-8578
|
Wire bound hose 1/2 x 5 1/2 inch |
1 |
|
|
17 |
273-0081
|
Wirebound hose 1/2 x 21 inch |
1 |
|
|
N/S |
273-0082
|
Pump kit adapter harness |
1 |
|
|
N/S |
273-3820
|
11 inch cable tie |
3 |
|
|
