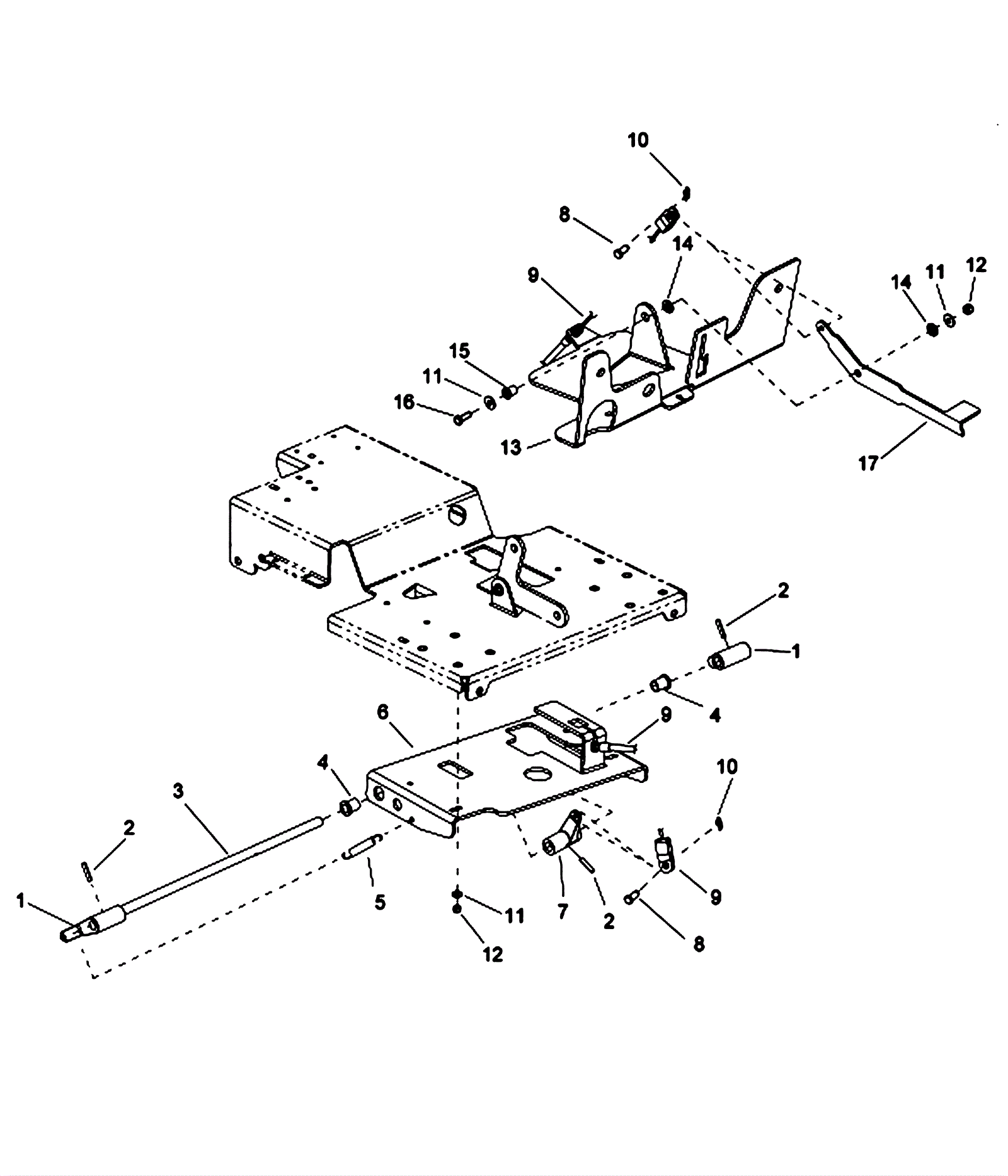

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-8354
|
Brake pad |
2 |
|
|
2 |
173-2880
|
Roll pin |
3 |
|
|
3 |
173-8355
|
Brake rod |
1 |
|
|
4 |
173-5134
|
Flanged bushing |
2 |
|
|
5 |
173-1478
|
Extension spring |
2 |
|
|
6 |
173-8356
|
Lower brake mount bracket |
1 |
|
|
7 |
173-8357
|
Brake crank |
1 |
|
|
8 |
173-3225
|
Clevis pin plated |
2 |
|
|
9 |
173-8358
|
Parking brake cable |
1 |
|
|
10 |
173-1480
|
Cotter ring |
2 |
|
|
11 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
12 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
|
13 |
173-8359
|
Tank mounting bracket |
1 |
|
|
14 |
173-3963
|
Washer 1/2 thrust |
2 |
|
|
15 |
173-8258
|
Flanged bearing |
1 |
|
|
16 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
|
17 |
173-8360
|
Brake lever |
1 |
|
|
