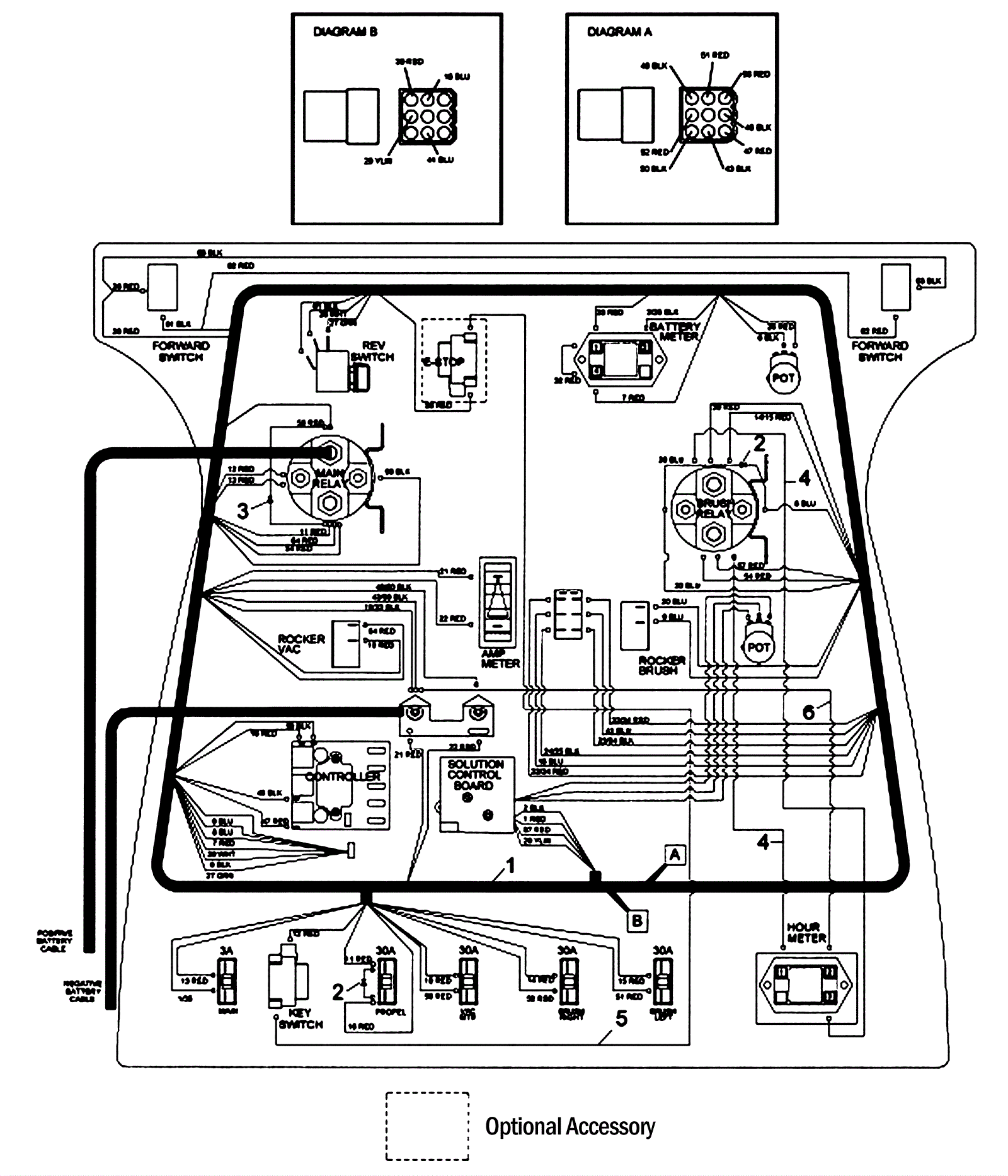

Control Panel Wiring Diagram

#PartDescription ReqNotesAvailability
1 173-2822 Deluxe panel harness 1
2 173-1716 Diode assembly 2
3 189-0372 Diode assembly 1
4 173-3132 22 inch wire (red) 2
5 173-1532 16 inch strip wire (red) 1
6 173-3136 14 inch wire 76011 x 76040 (black) 1
