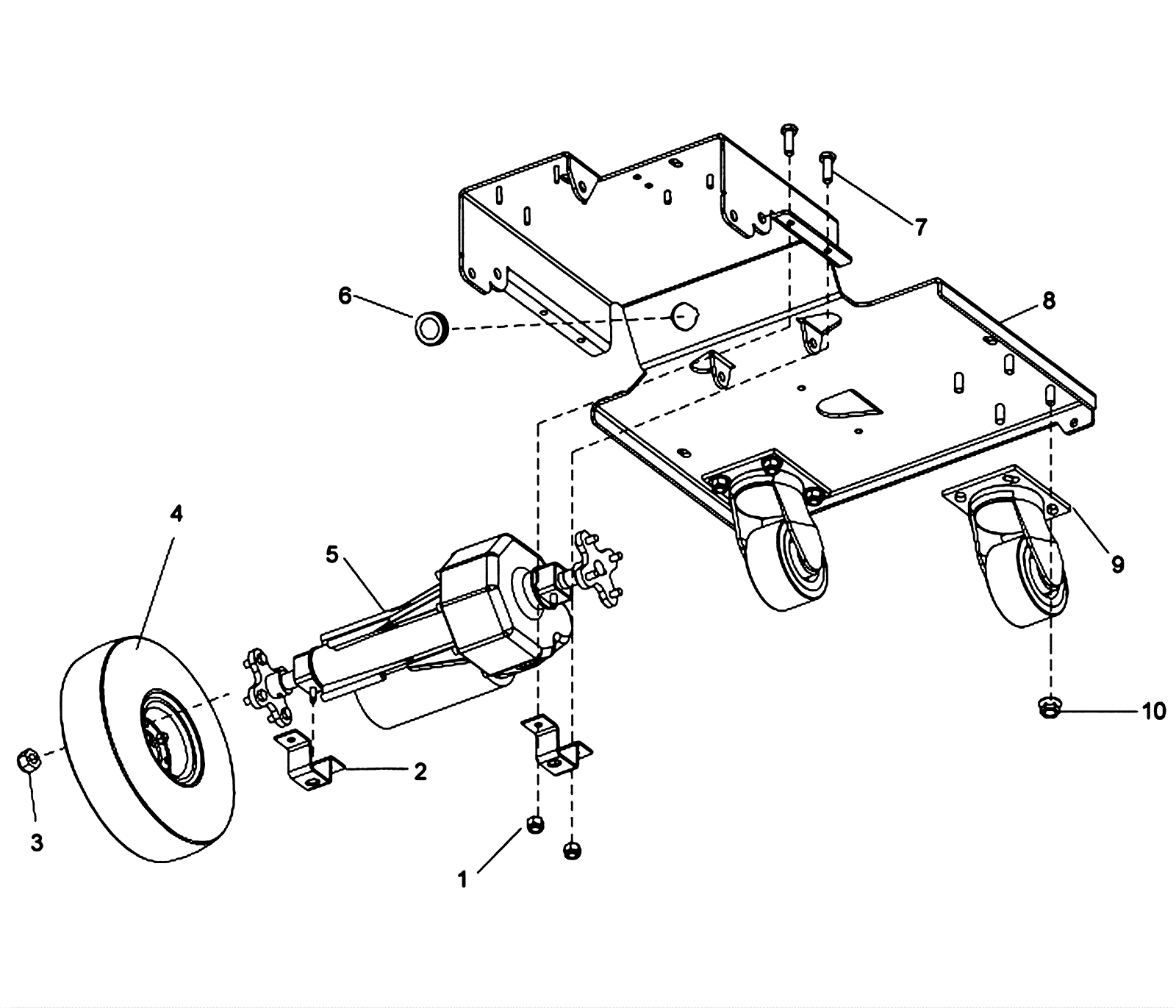

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
2 |
173-8343
|
Transaxle mounting bracket (OBSOLETE) |
2 |
|
|
3 |
999-0296
|
Nut 5/16-24 nylon insert lock stainless steel |
8 |
|
|
4a |
173-1701
|
10 inch knobby wheel assembly |
2 |
|
|
4b |
173-1699
|
10 inch solid wheel |
1 |
|
|
4c |
189-0349
|
10 inch non-marking foam filled wheel assembly |
1 |
|
|
5a |
189-0347
|
24V drive motor axle |
1 |
|
|
5b |
173-8344
|
24V transaxle brush set |
1 |
|
|
5c |
173-8345
|
Transaxle hub kit |
1 |
(SN 1000094309) |
|
5d |
173-8346
|
Woodruff key |
1 |
(SN 1000094309) |
|
6 |
173-1681
|
Grommet |
1 |
|
|
7 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
|
8 |
173-8347
|
Main frame |
1 |
|
|
9 |
991-2006
|
Caster wheel assembly (red) |
2 |
|
|
10 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
8 |
|
|
