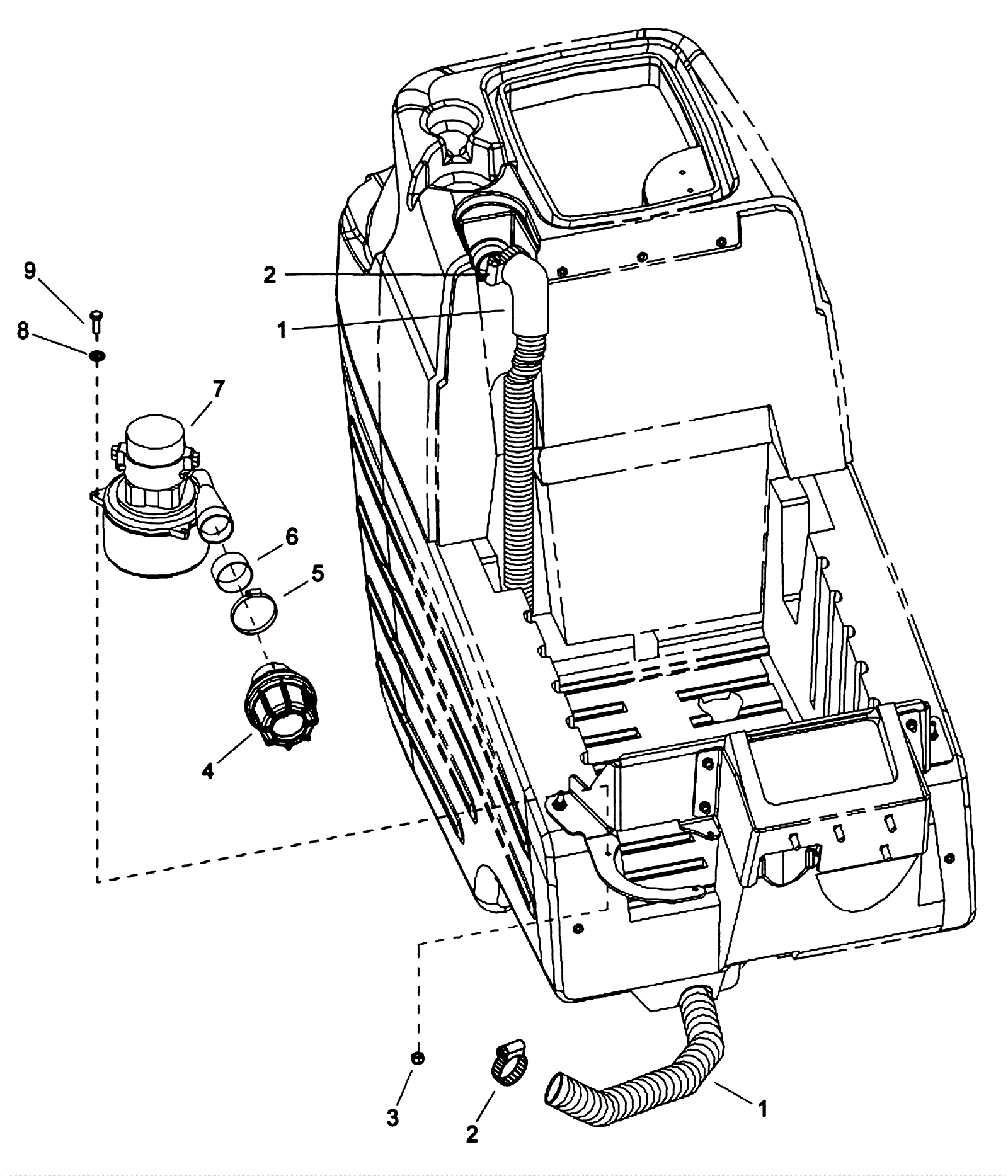

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-8338
|
Vacuum hose assembly |
1 |
|
|
2 |
189-0329
|
Hose clamp |
2 |
|
|
3 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
3 |
|
|
4 |
173-4106
|
Vacuum motor muffler |
1 |
|
|
5 |
997-2003
|
Hose clamp |
1 |
|
|
6 |
173-8341
|
Tube |
1 |
|
|
7a |
273-0917
|
24V 3 stage vacuum motor |
1 |
|
|
7b |
173-8340
|
Carbon brush (pkg of 2) |
1 |
|
|
7c |
173-4105
|
Carbon brush |
1 |
|
|
7d |
991-1254
|
Carbon brush (set of 2) |
1 |
(NON-OEM) |
|
7e |
991-1230
|
24V 3 stage vacuum motor tangential with snout |
1 |
(NON-OEM) |
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
9 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
3 |
|
|
