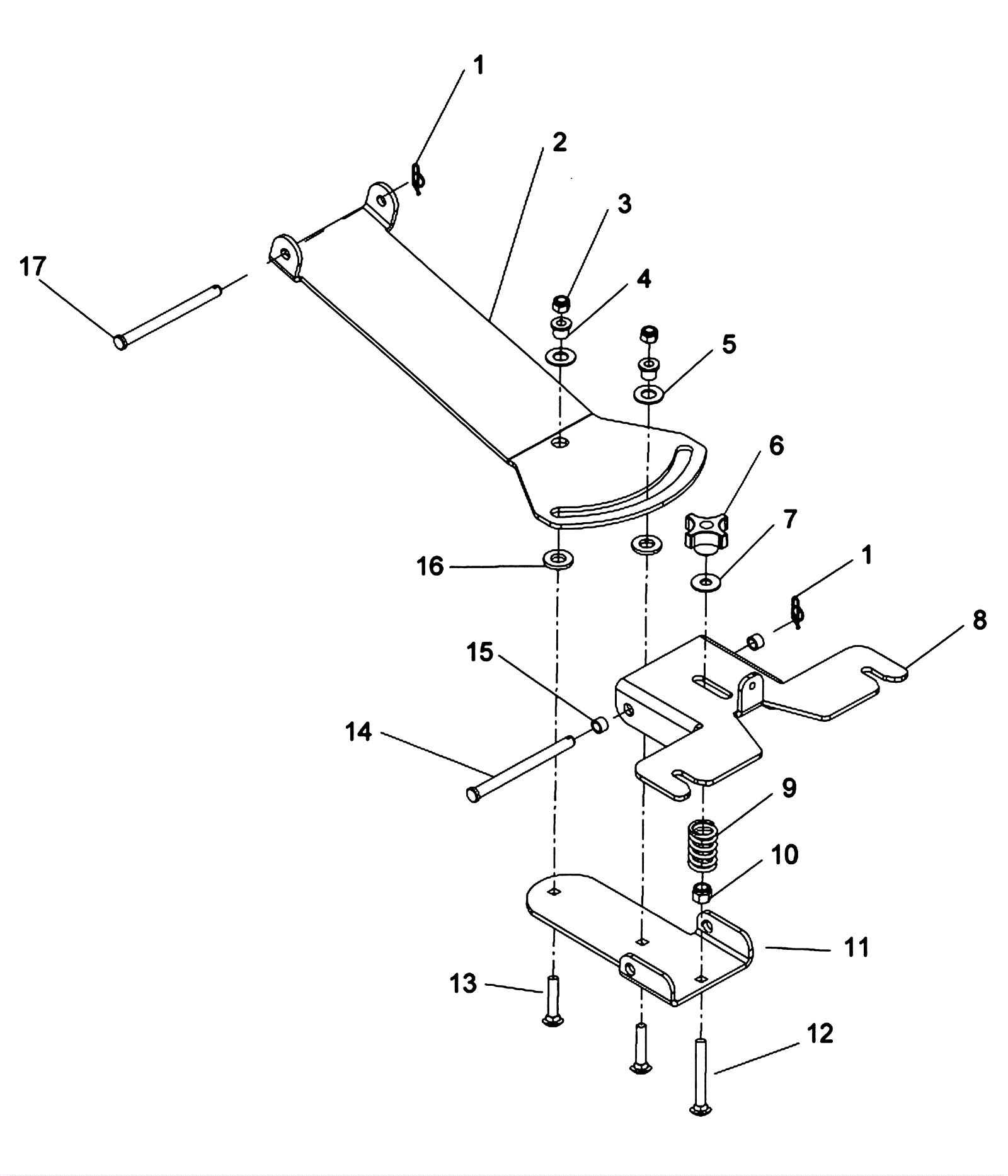

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-1593
|
Cotter ring (OBSOLETE) |
2 |
|
|
2 |
173-8336
|
Squeegee pivot lift bracket |
1 |
|
|
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
4 |
173-3116
|
Flanged bearing |
2 |
|
|
5 |
173-3964
|
Thrust washer |
2 |
|
|
6 |
173-1025
|
Knob |
1 |
|
|
7 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
|
|
8 |
173-8337
|
Squeegee mount plate |
1 |
|
|
9 |
173-1656
|
Compression spring |
1 |
|
|
10 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
11 |
173-3154
|
Pivot bracket |
1 |
|
|
12 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
13 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
2 |
|
|
14 |
173-3157
|
Clevis pin |
1 |
|
|
15 |
173-1665
|
Flanged bearing |
2 |
|
|
16 |
173-3963
|
Washer 1/2 thrust |
2 |
|
|
17 |
173-3401
|
Clevis pin |
1 |
|
|
