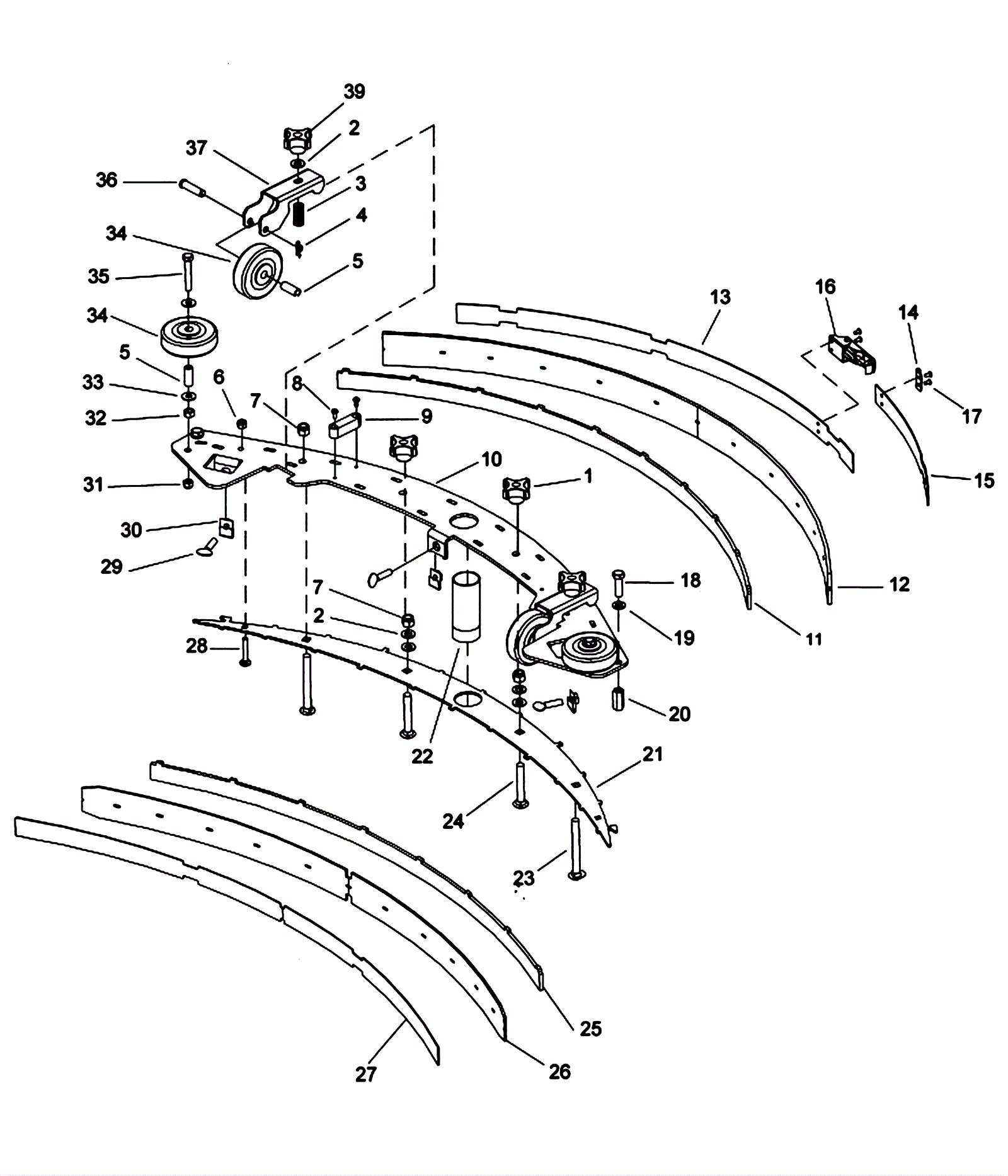

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 173-1025 Knob 2
2 999-1007 Washer 3/8 x 1/16 flat nylon 6
3 189-0353 Compression spring 2
4 173-1480 Cotter ring 2
5 173-1634 Bushing 4
6 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2
7 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 4
8 173-2824 Screw 8-32 x 3/8 phillips head thread cutting F plated 2
9 164-1136 Squeegee level 1
10 173-4337 Squeegee top plate 40 inch 1
11 173-4338 Squeegee rear plate 40 inch (OBSOLETE) 1
12a 173-7374 Squeegee blade rear linatex red 44 inch - 13 hole 1
12b 173-8615 Squeegee blade rear urethane clear 40 inch 1
13 173-2795 Squeegee band rear 1
14 170-7029 Keeper 1
15 173-2796 Squeegee band rear short 1
16 173-0412 Squeegee strap latch 1
17 173-2797 Rivet 4
18 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
19 999-0034 Washer 3/8 split lock plain finish 2
20 173-3934 Nut 3/8-16 hex coupling stainless steel 2
21 173-4339 Squeegee bottom plate 40 inch 1
22 173-8331 Vacuum hose intake tube 1
23 999-1399 Screw 3/8-16 x 3 1/2 carriage head stainless steel 2
24 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel 2
25 173-4340 Squeegee front spacer plate 40 inch 1
26a 173-7376 Squeegee blade linatex front 1
26b 173-8616 Squeegee blade front urethane clear 39 inch(OBSOLETE) 1
27 189-0356 Squeegee band front 1
28 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
29 173-3940 Screw 5/16-18 x 1 thumb type p stainless steel 3
30 173-3935 Nut 5/16-18 captive jam (OBSOLETE) 3
31 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
32 999-0069 Nut 5/16-18 hex 2
33 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
34a 173-1630 3 inch rubber wheel 4
35 999-0893 Screw 5/16-18 x 2 hex head stainless steel 2
36 173-3181 Clevis pin 2
37 173-8333 Squeegee wheel bracket 2
38 173-4341 Squeegee assembly 32 inch 1
39 173-4119 Knob 2
