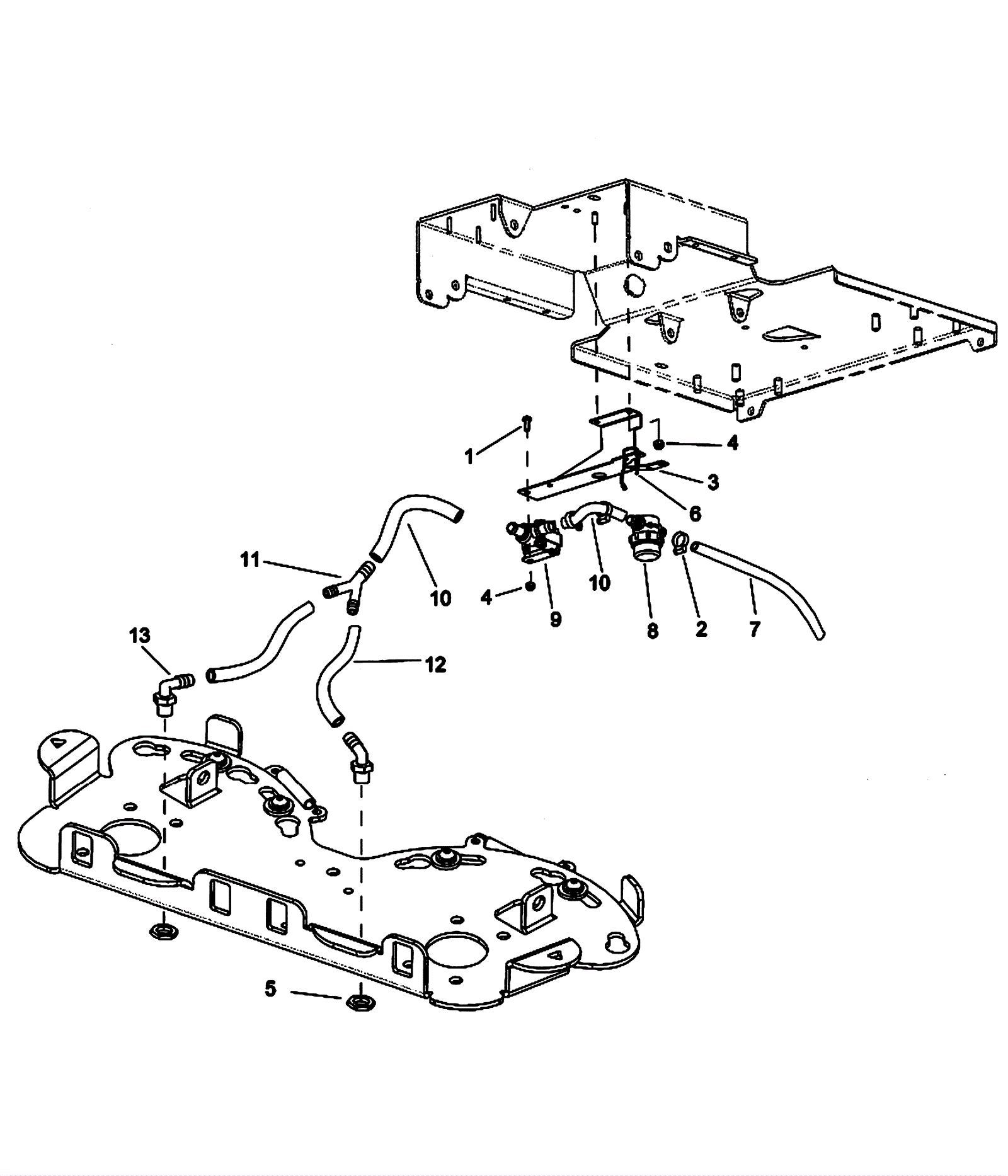

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
2 |
|
|
2 |
173-1821
|
Hose clamp |
3 |
|
|
3 |
173-8320
|
Filter/solution mount bracket |
1 |
|
|
4 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
|
5 |
173-4130
|
Nut 3/8 plastic nickel plated thread (OBSOLETE) |
2 |
|
|
6 |
273-3820
|
11 inch cable tie |
2 |
|
|
7 |
173-8322
|
Wire bound hose 1/2 x 12 inch |
1 |
|
|
8a |
173-8323
|
Solution filter assembly |
1 |
|
|
8b |
173-3050
|
O-ring gasket |
1 |
|
|
8c |
173-3051
|
Mesh strainer screen |
1 |
|
|
8d |
273-6141
|
Strainer cap |
1 |
|
|
8e |
991-8575
|
Short bowl (clear) |
1 |
(NON-OEM) |
|
9a |
189-0343
|
24V solenoid valve with hosebarb |
1 |
|
|
9b |
173-8324
|
Solenoid diaphragm |
1 |
|
|
9c |
173-8325
|
Solenoid spring kit |
1 |
|
|
10 |
173-8326
|
Wire bound hose 1/2 x 8 inch |
2 |
|
|
11 |
173-1095
|
Tee fitting |
1 |
|
|
12 |
173-8327
|
Nylon braid 3/8 x 10 inch hose (OBSOLETE) |
2 |
|
|
13 |
173-1572
|
Hosebarb 3/8 x 3/8 inch |
2 |
|
|
