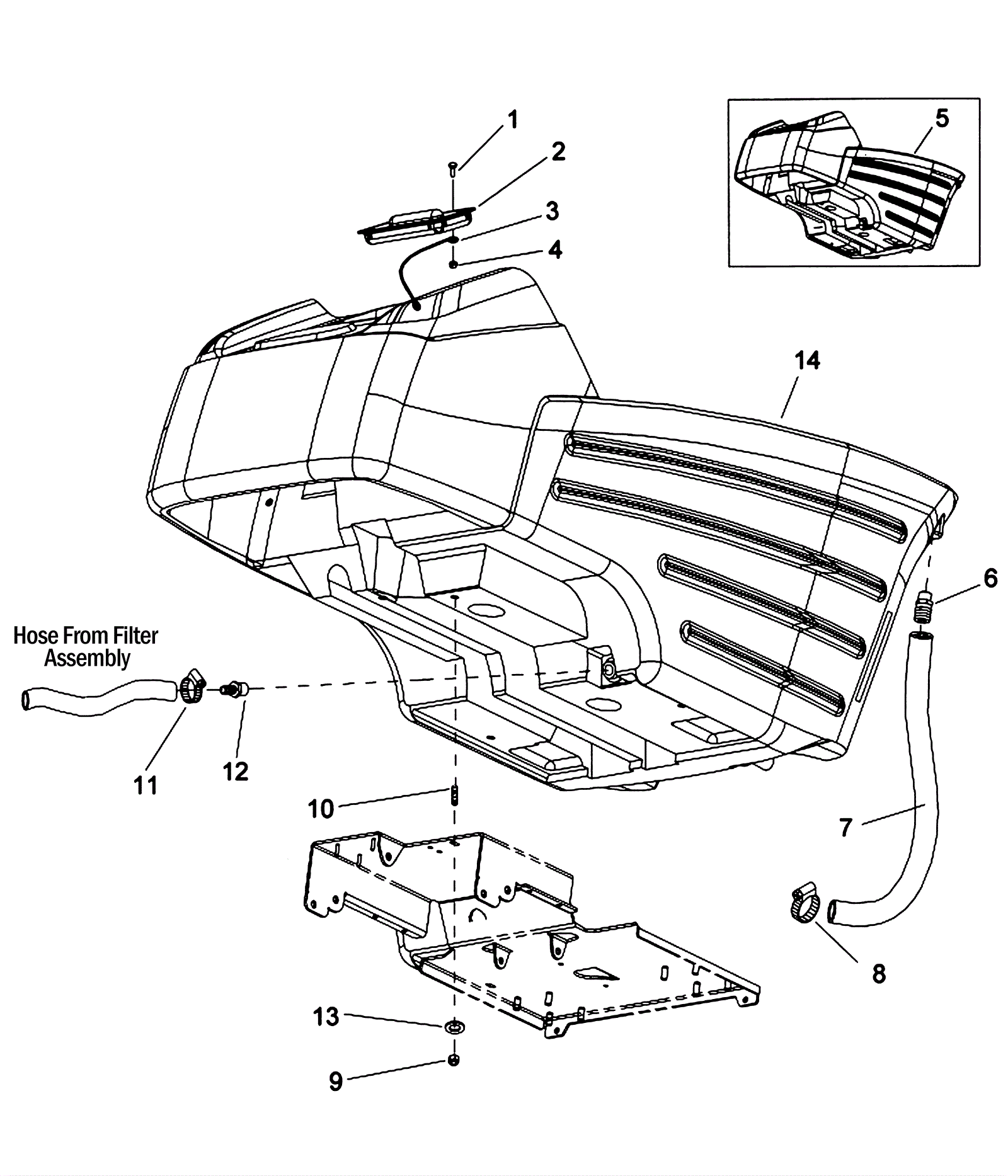

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
|
2 |
173-2248
|
Solution cover |
1 |
|
|
3 |
173-8262
|
Eye lanyard with loop |
1 |
|
|
4 |
999-1542
|
Nut 6-32 acorn stainless steel |
1 |
|
|
5 |
173-8315
|
Solution tank (black) |
1 |
|
|
6 |
173-8316
|
Hosebarb (OBSOLETE) |
1 |
|
|
7 |
173-8317
|
Solution drain hose (OBSOLETE) |
1 |
|
|
8 |
173-1079
|
Hose clamp (OBSOLETE) |
1 |
|
|
9 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
11 |
173-1821
|
Hose clamp |
1 |
|
|
12 |
173-3396
|
Hosebarb |
1 |
|
|
13 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
14 |
173-9852
|
Solution tank |
1 |
(SN 1000141108) |
|
