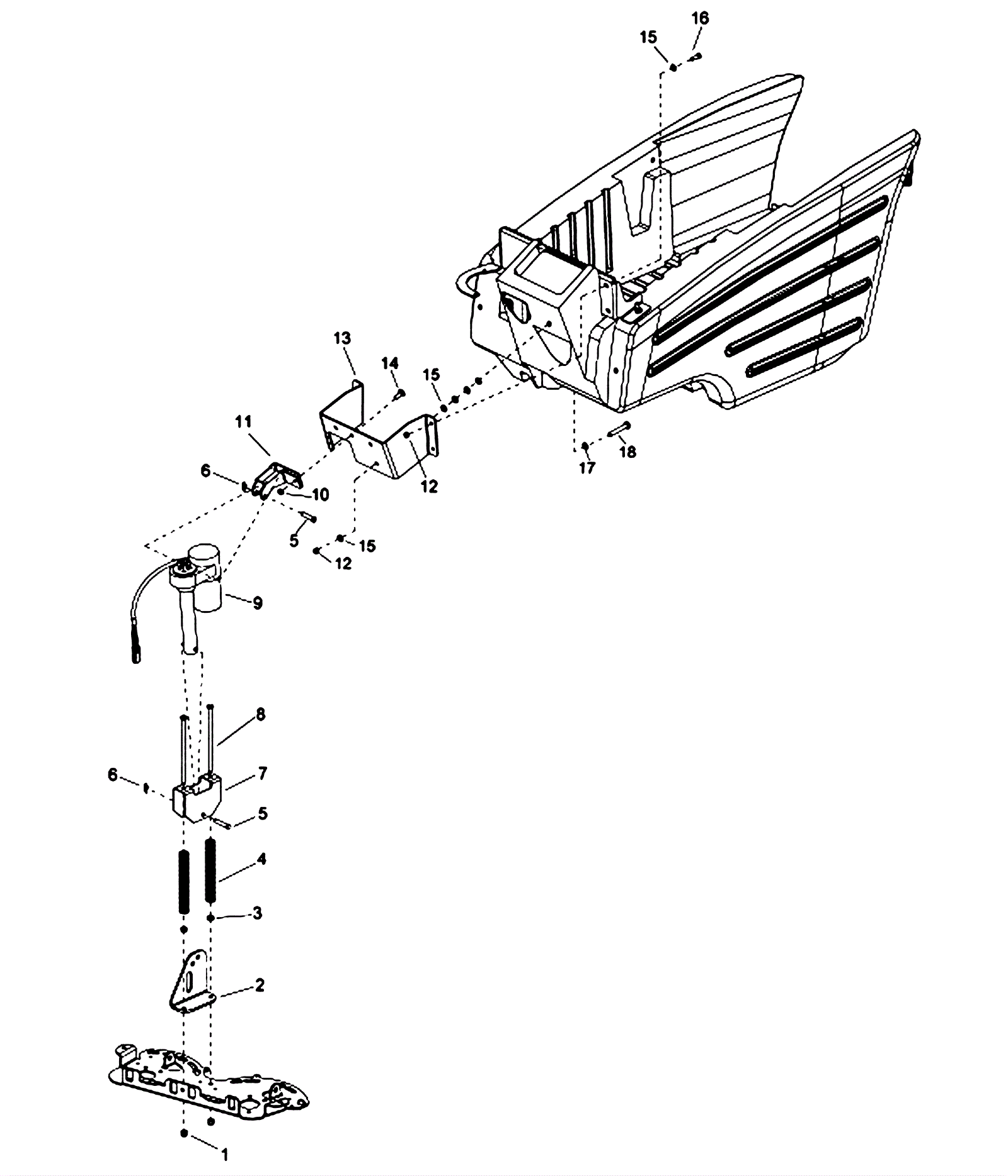

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
|
2 |
173-2821
|
Deck mounting bracket |
1 |
|
|
3 |
999-0170
|
Nut 3/8-16 hex plain finish |
2 |
|
|
4 |
173-2820
|
Compression spring |
2 |
|
|
5 |
173-1595
|
Clevis pin |
2 |
|
|
6 |
173-1593
|
Cotter ring (OBSOLETE) |
2 |
|
|
7 |
173-2819
|
Actuator tube bracket |
1 |
|
|
8 |
173-2818
|
Screw 3/8-16 x 7 hex head cap stainless steel |
2 |
|
|
9 |
173-1598
|
24V actuator (OBSOLETE) |
1 |
|
|
10 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
|
11 |
173-6126
|
Actuator mounting bracket |
1 |
|
|
12 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
13 |
173-9851
|
Tank brace bracket |
1 |
|
|
14 |
999-1242
|
Screw 3/8-16 x 1 oval head stainless steel |
2 |
|
|
15 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
9 |
|
|
16 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
|
17 |
999-1094
|
Washer 5/16 bonded sealing stainless steel |
1 |
|
|
18 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
1 |
|
|
