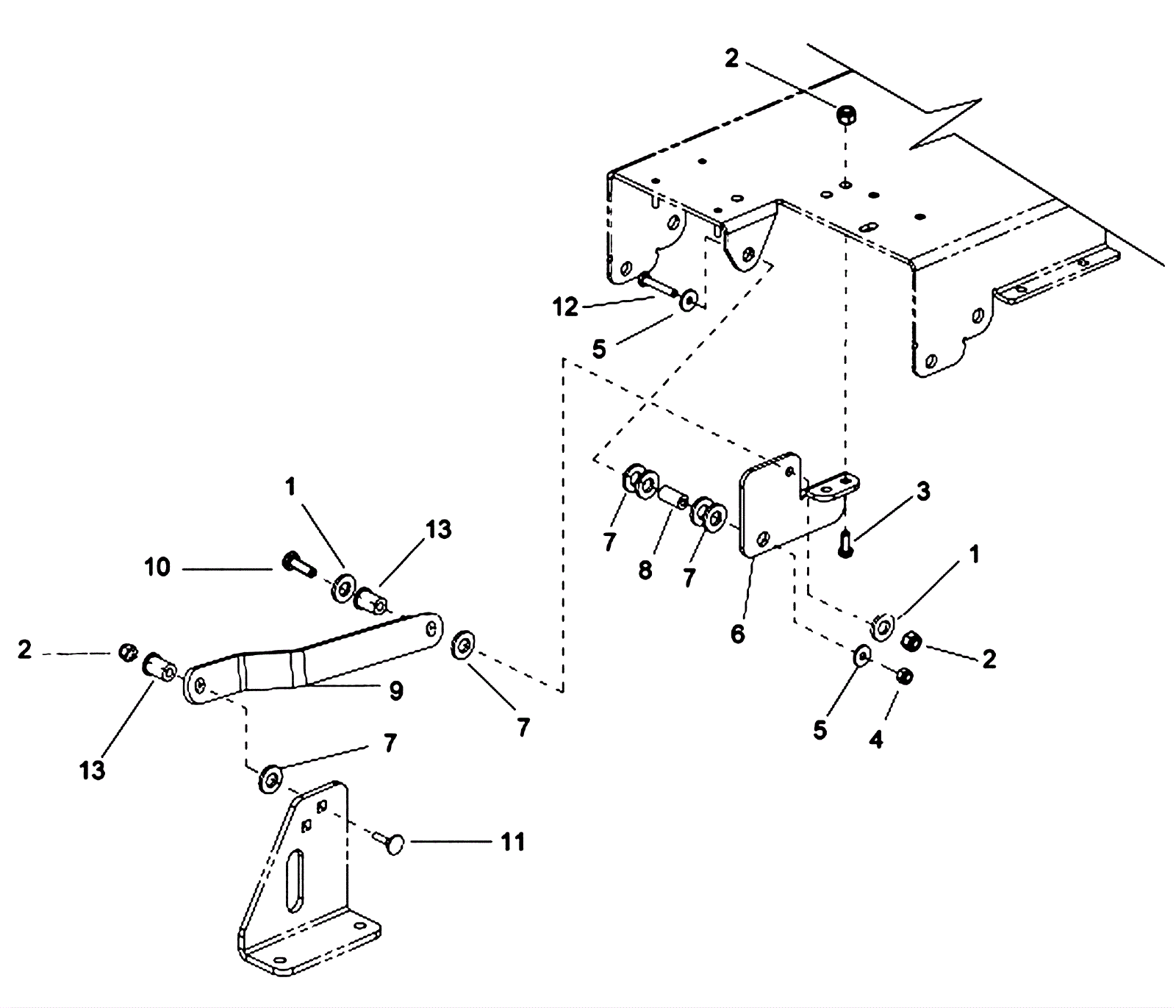

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
2 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
3 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
4 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
3 |
|
|
5 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
6 |
173-8311
|
Frame mount bracket |
1 |
|
|
7 |
173-3963
|
Washer 1/2 thrust |
10 |
|
|
8 |
173-8299
|
Bearing |
1 |
|
|
9 |
173-4374
|
Center link bracket |
1 |
|
|
10 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
|
11 |
173-2495
|
Screw 5/16 x 1 1/4 elevator |
1 |
|
|
12 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
|
13 |
173-3116
|
Flanged bearing |
2 |
|
|
