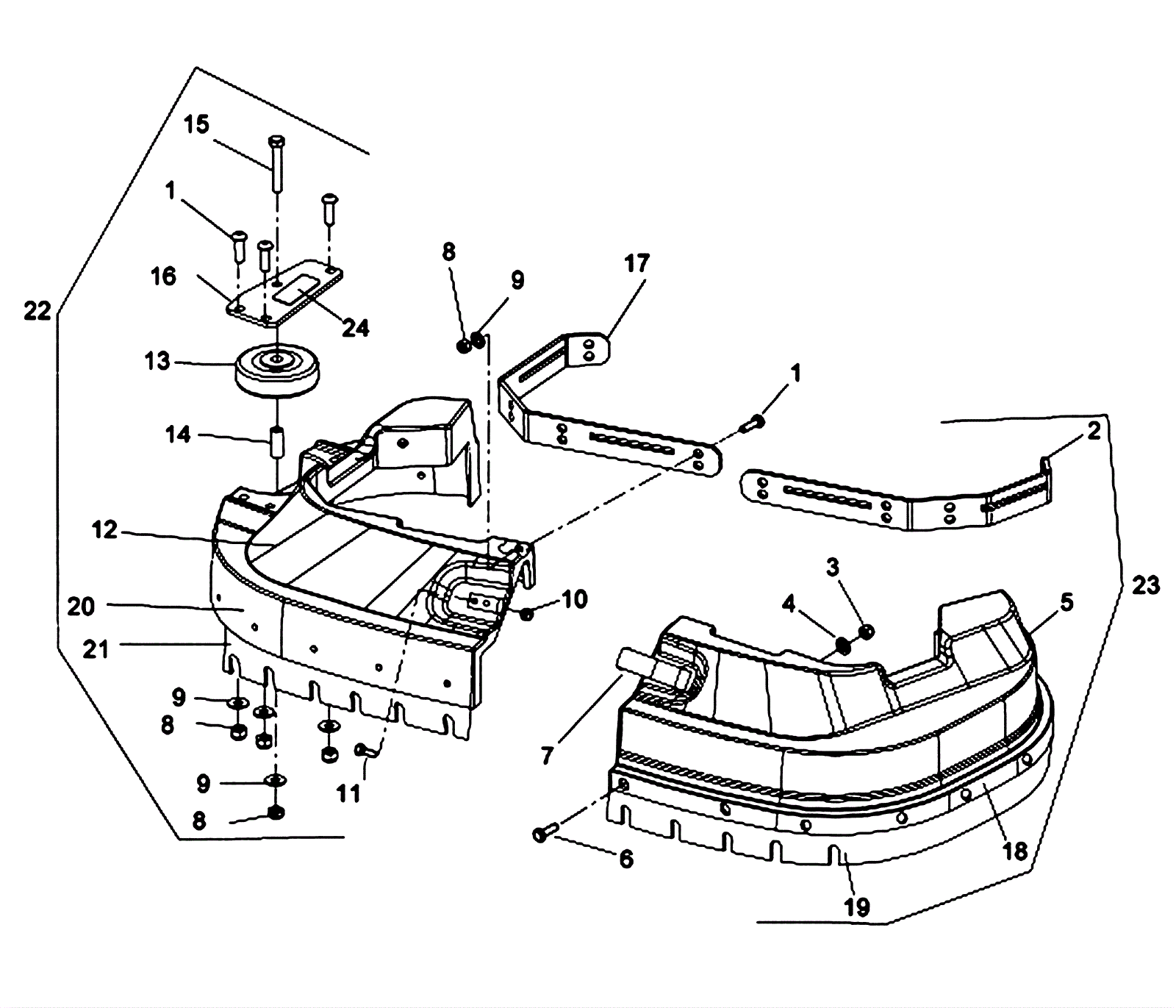

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1333
|
Screw 5/16-18 x 3/4 button head stainless steel |
10 |
|
|
2 |
173-4308
|
Shroud bracket left 32 inch |
1 |
|
|
3 |
999-1504
|
Nut 10-24 jam insert lock stainless steel |
23 |
|
|
4 |
999-0998
|
Washer #10 flat stainless steel |
23 |
|
|
5 |
173-4309
|
Scrub deck left shroud 32 inch |
1 |
|
|
6 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
23 |
|
|
7 |
173-8288
|
Latch |
1 |
|
|
8 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
10 |
|
|
9 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
11 |
|
|
10 |
173-5037
|
Nut 6-32 elastic stop (OBSOLETE) |
4 |
|
|
11 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
4 |
|
|
12 |
173-4310
|
Scrub deck right shroud 32 inch |
1 |
|
|
13 |
173-1630
|
3 inch rubber wheel |
1 |
|
|
14 |
173-1634
|
Bushing |
1 |
|
|
15 |
999-0893
|
Screw 5/16-18 x 2 hex head stainless steel |
1 |
|
|
16 |
173-8291
|
Bumper wheel attach plate |
1 |
|
|
17 |
173-4311
|
Shroud bracket right 32 inch |
1 |
|
|
18 |
173-4312
|
Shroud skirt band left 32 inch |
1 |
|
|
19 |
173-2863
|
Scrub deck skirt left 32 inch |
1 |
|
|
20 |
173-4313
|
Shroud skirt band right 32 inch |
1 |
|
|
21 |
173-2864
|
Scrub deck skirt right 32 inch |
1 |
|
|
22 |
173-2862
|
Scrubhead shroud right assembly 32 inch |
1 |
|
|
23 |
173-2861
|
Scrubhead shroud left assembly 32 inch |
1 |
|
|
24 |
173-0722
|
Aqua-mizer label |
1 |
|
|
