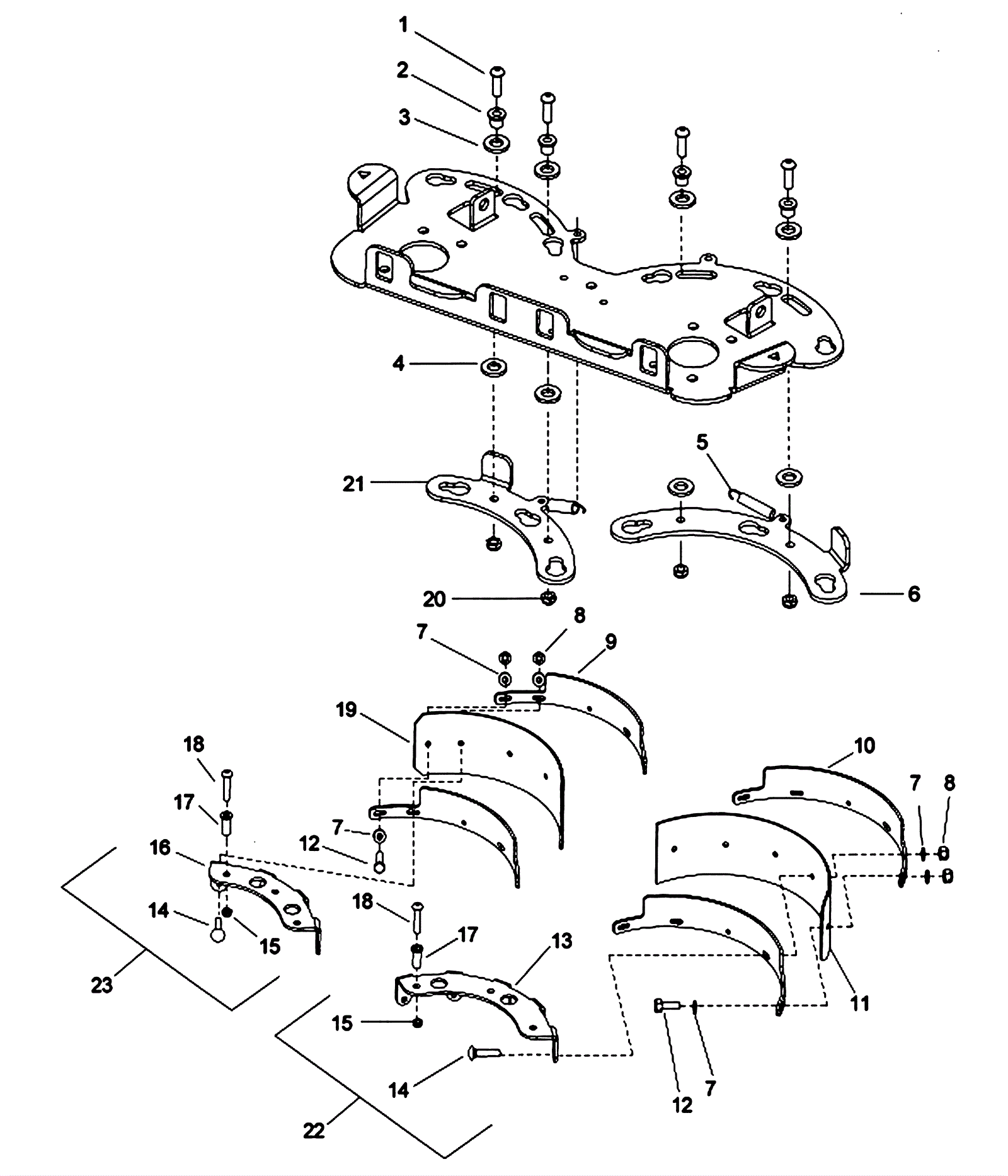

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
4 |
|
|
2 |
173-3116
|
Flanged bearing |
4 |
|
|
3 |
173-2815
|
Washer 33/64 x 1 thrust |
4 |
|
|
4 |
173-3963
|
Washer 1/2 thrust |
4 |
|
|
5 |
173-1478
|
Extension spring |
2 |
|
|
6 |
173-4321
|
Left lock plate 16 inch |
1 |
|
|
7 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
13 |
|
|
8 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
11 |
|
|
9 |
173-4322
|
Back strap right 16 inch |
2 |
|
|
10 |
173-4323
|
Back strap left 16 inch |
2 |
|
|
11a |
173-2859
|
16 inch left scrub deck blade linatex |
1 |
|
|
11b |
273-0076
|
Scrub deck blade left urethane 16 inch |
1 |
|
|
12 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
13 |
173-4324
|
Attach plate left 16 inch |
1 |
|
|
14 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
9 |
|
|
15 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
6 |
|
|
16 |
173-4325
|
Attach plate right 16 inch |
1 |
|
|
17 |
173-8278
|
Flanged bearing |
6 |
|
|
18 |
999-1912
|
Screw 3/8-16 x 1 3/4 button socket cap SS |
6 |
|
|
19a |
173-2860
|
16 inch right scrub deck blade linatex |
1 |
|
|
19b |
273-0077
|
Scrub deck blade right urethane 16 inch |
1 |
|
|
20 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
21 |
173-4326
|
Right lock plate 16 inch |
1 |
|
|
22 |
173-2865
|
Aqua-mizer scrubhead left 32 inch |
1 |
|
|
23 |
173-2866
|
Aqua-mizer scrubhead right 32 inch |
1 |
|
|
