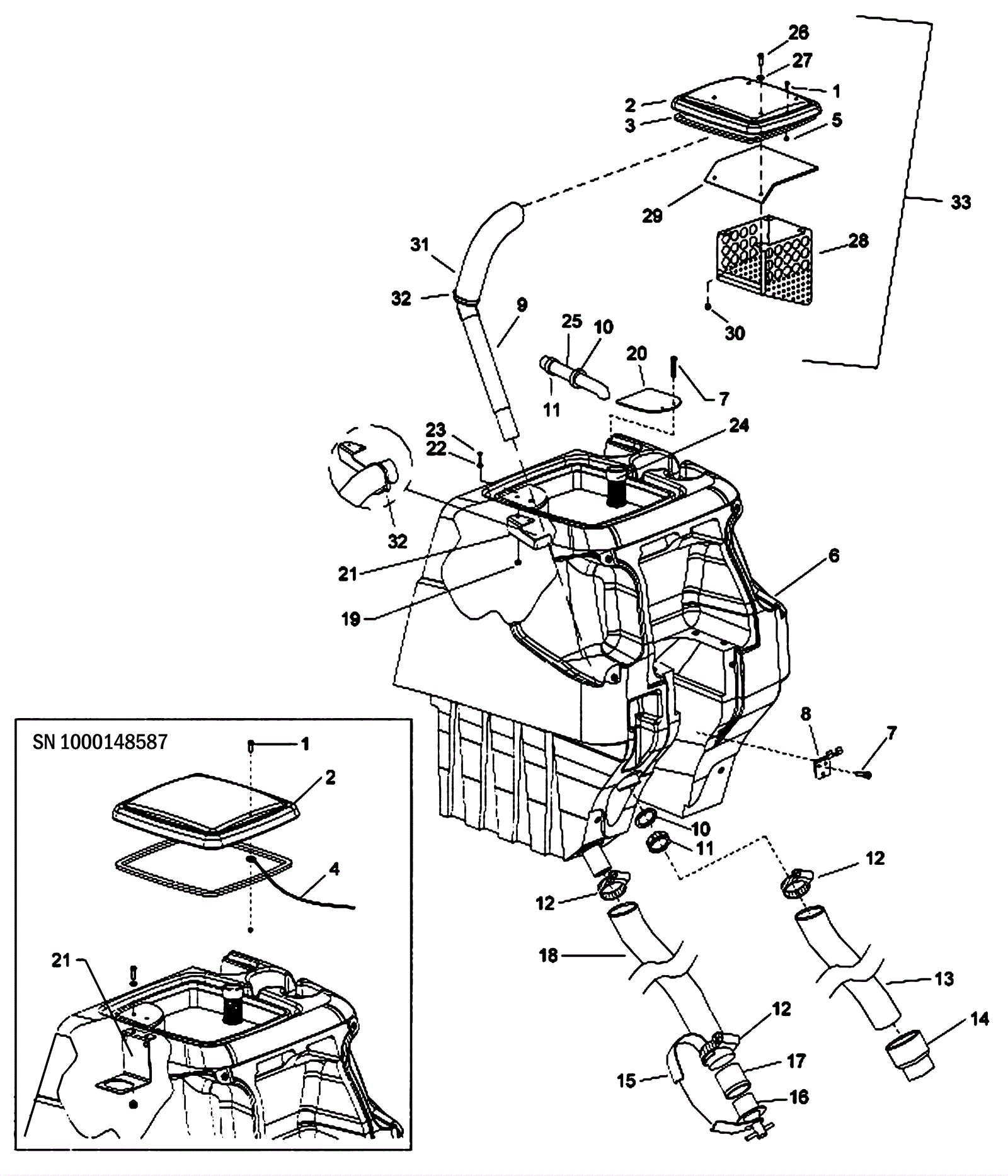

SABER CUTTER SCOX324 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 1 (SN 1000148587) ships same day
2 273-0096 Drilled recovery tank dome $99.00 1 (SN 1000148587) usually ships 7-19 days
3 173-8261 Tank lid gasket $75.91 1 usually ships 7-19 days
4 173-8262 Eye lanyard with loop $41.78 1 usually ships 7-19 days
5 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 1 usually ships 7-19 days
6 273-6290 Recovery tank $971.72 1 usually ships 1-5 days
7 173-2807 Screw 10-32 x 3/4 pan head phillips hi-lo $1.87 5 usually ships 7-19 days
8 189-4135 Hose mounting bracket $90.01 1 usually ships 11-24 days
9 173-9035 Cutter basket tube assembly (OBSOLETE) $66.85 1 (SN 1000148587) usually ships 1-5 days
10 173-1542 1 1/2 compression gasket $3.37 2 usually ships 7-19 days
11 273-6836 Slip joint nut $9.35 2 ships same day
12 189-0329 Hose clamp $31.44 3 usually ships 1-5 days
13 173-2773 Squeegee vacuum hose 1 1/2 x 28 inch $42.13 1 usually ships 7-19 days
14 173-1123 Hose cuff 1 1/2 slip x 1 1/2 inch $28.49 1 ships same day
15 189-4123 Drain plug tether $28.16 1 usually ships 7-19 days
16 173-1213 Drain plug $116.83 1 ships same day
17 189-4130 1/2 inch hosebarb $27.94 1 usually ships 11-24 days
18 173-1216 Drain hose 1 1/2 x 24 inch $104.51 1 usually ships 7-19 days
19 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
20 173-8265 Vacuum hose cover $26.73 1 usually ships 1-5 days
21 173-8266 Vacuum intake bracket $78.10 1 (SN 1000148587) usually ships 1-5 days
22 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
23 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 2 ships same day
24 173-8267 Vacuum shut off float $117.70 1 usually ships 7-19 days
25 173-2307 1 1/2 inch waste tube $35.20 1 usually ships 7-19 days
26 999-0713 Screw 10-32 x 5/8 pan head slotted stainless steel $0.99 4 (SN 1000148587) ships same day
27 173-7263 Washer seal 1/4 x 5/8 stainless steel $1.88 4 (SN 1000148587) usually ships 1-5 days
28 173-5445 Recovery tank basket strainer $359.70 1 (SN 1000148587) usually ships 1-5 days
29 273-6245 Flap basket deflector $22.66 1 (SN 1000148587) usually ships 1-5 days
30 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 (SN 1000148587) ships same day
31 173-9034 90 degree elbow $172.70 1 (SN 1000148587) usually ships 1-5 days
32 997-2003 Hose clamp $2.66 2 (SN 1000148587) ships same day
33 173-6123 Dome assembly $523.60 1 usually ships 7-19 days
