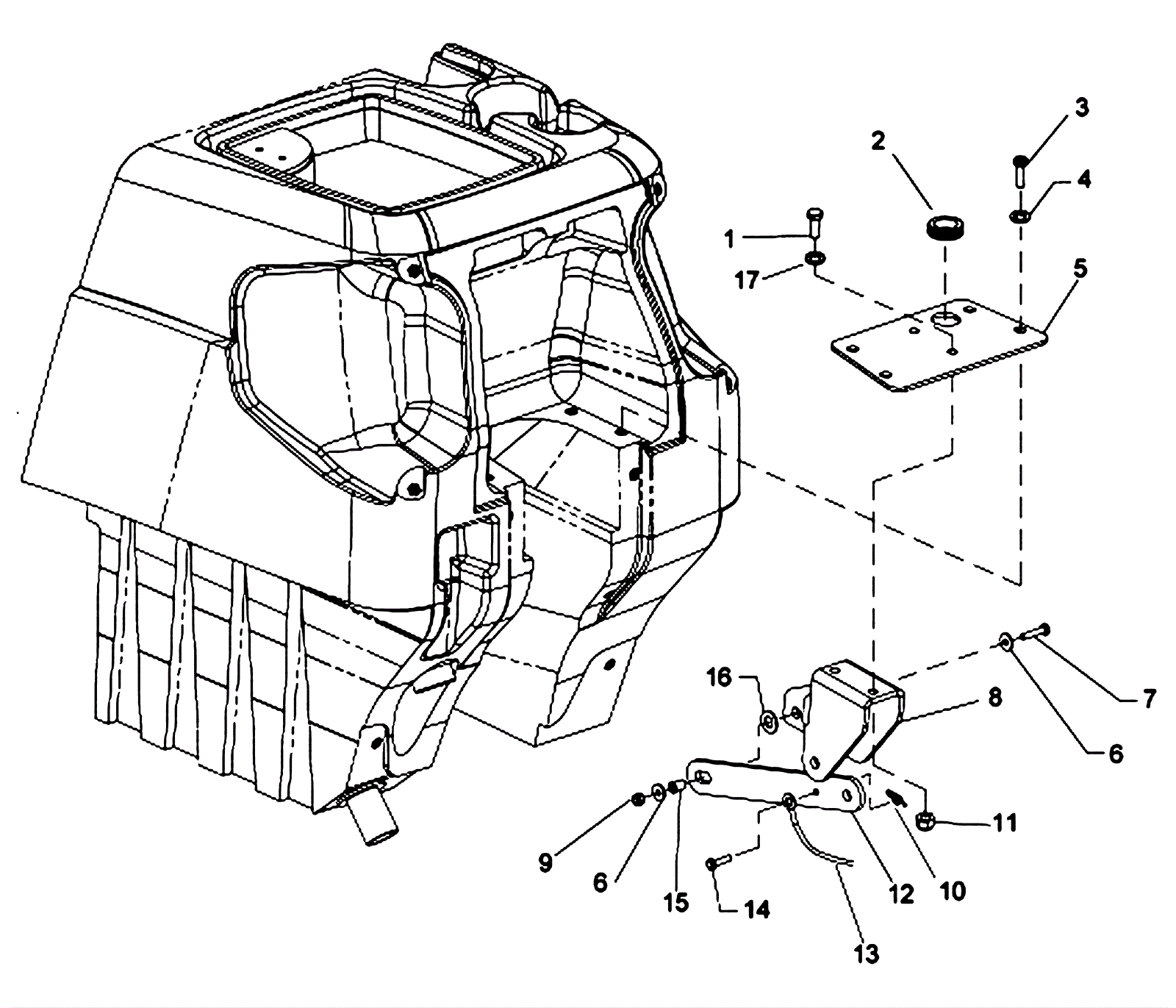

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
|
2 |
173-1681
|
Grommet |
1 |
|
|
3 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
|
|
4 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
5 |
173-8256
|
Pivot plate |
1 |
|
|
6 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
7 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
|
8 |
173-8257
|
Scrub deck pivot bracket |
1 |
|
|
9 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
|
10 |
173-1130
|
Cotter ring |
1 |
|
|
11 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
|
12 |
173-8260
|
Squeegee lift linkage |
1 |
|
|
13 |
173-2848
|
Squeegee lift cable (OBSOLETE) |
1 |
|
|
14 |
173-3153
|
Clevis pin |
1 |
|
|
15 |
173-8258
|
Flanged bearing |
1 |
|
|
16 |
173-3963
|
Washer 1/2 thrust |
1 |
|
|
17 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
