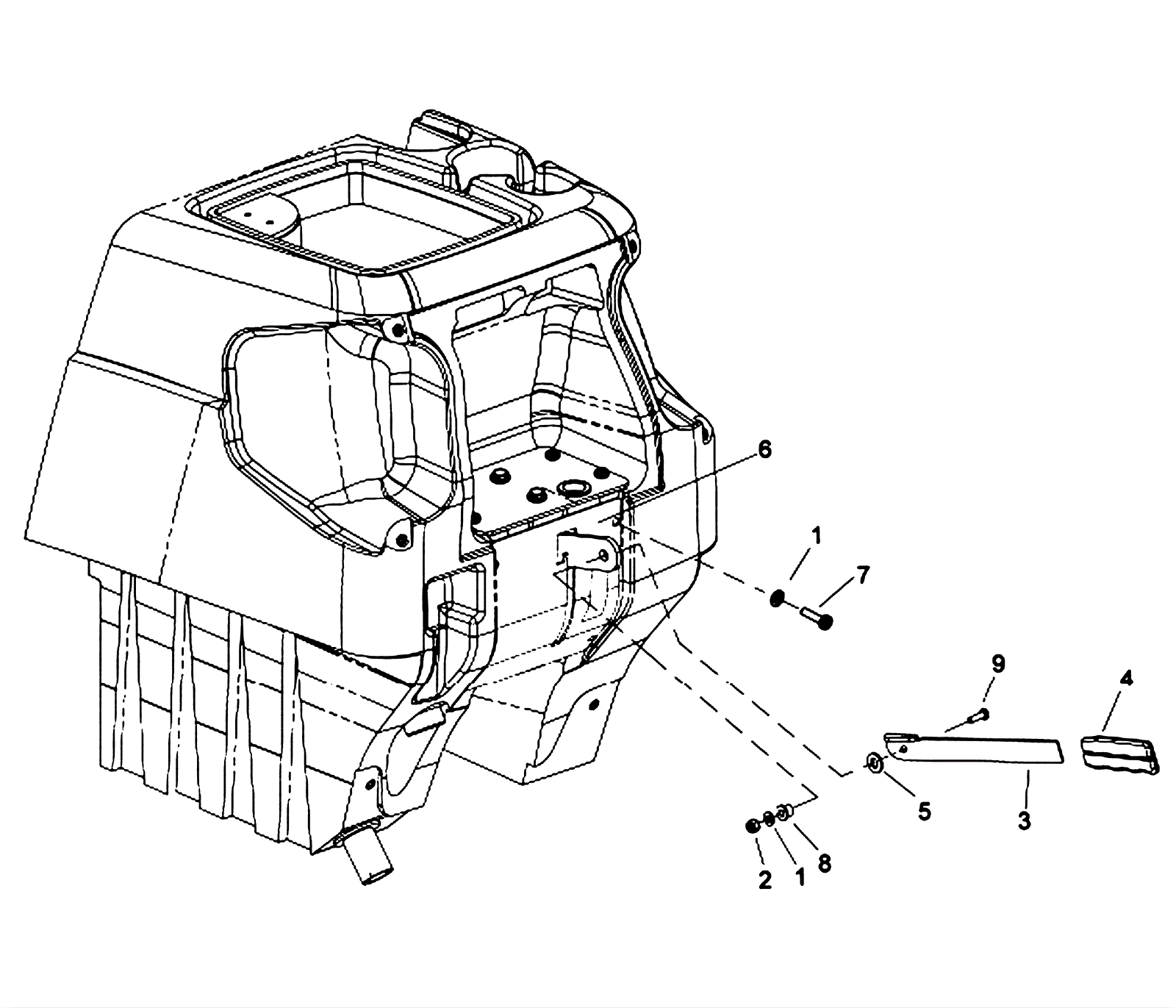

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
|
2 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
3 |
173-8252
|
Squeegee lift swing bar |
1 |
|
|
4 |
173-8253
|
Handle grip (orange) |
1 |
|
|
5 |
173-3963
|
Washer 1/2 thrust |
1 |
|
|
6 |
173-2812
|
Notch lever plate |
1 |
|
|
7 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
|
|
8 |
173-3116
|
Flanged bearing |
1 |
|
|
9 |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
1 |
|
|
