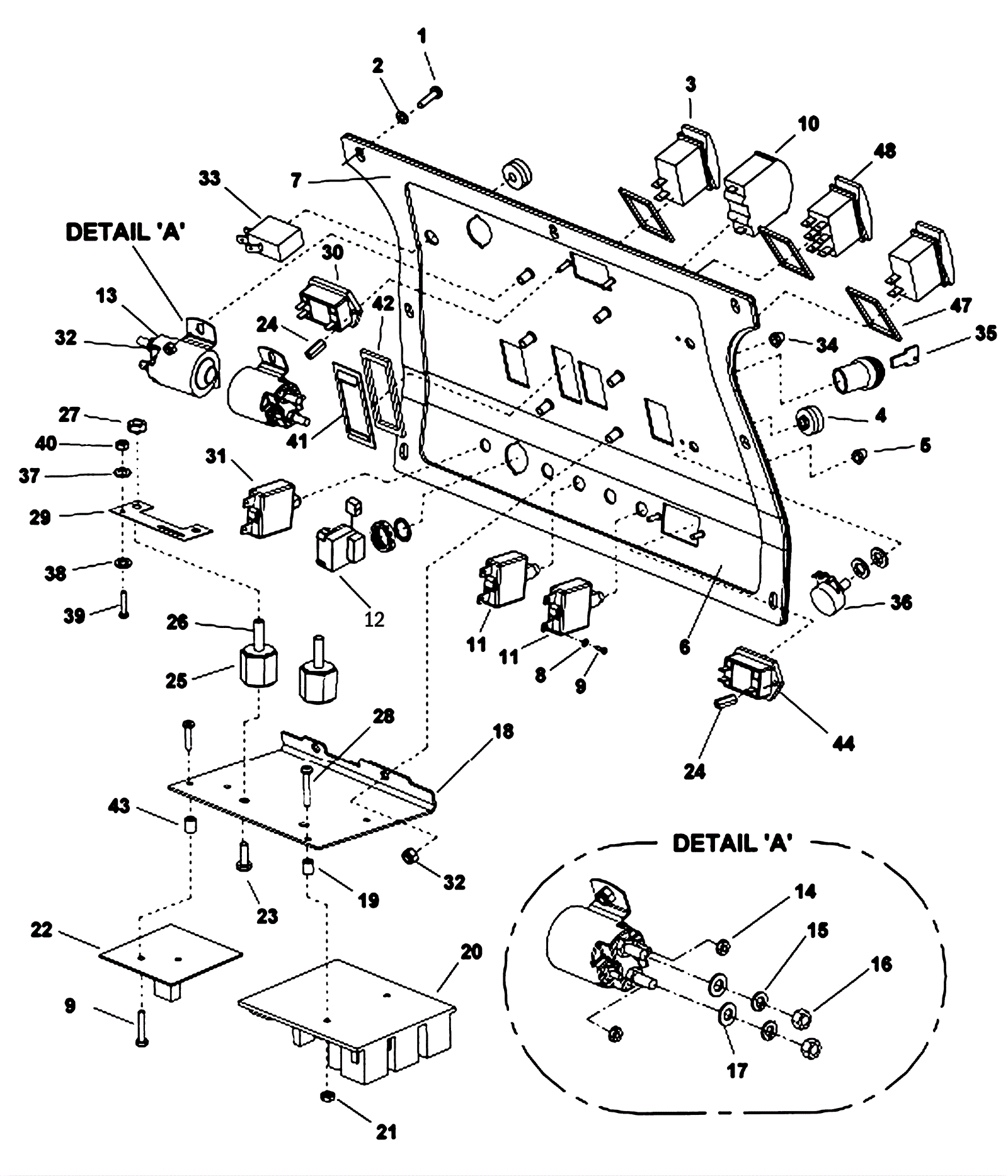

Electrical Panel Assembly

#PartDescription ReqNotesAvailability
1 173-2807 Screw 10-32 x 3/4 pan head phillips hi-lo 7
2 273-5969 Washer .19 thick 7
3 189-0319 2 position rocker switch 2
4 173-8240 Knob 2
5a 173-1522 3/8 inch circuit breaker boot 4
5b 991-5157 3/8 inch circuit breaker boot 4 (NON-OEM)
6 173-2809 Electrical panel plate 1
7 173-8246 Electric plate gasket 1
8 999-0051 Washer #6 medium split lock 8
9 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 12
10 189-0317 50amp meter 1
11 991-1629 35amp circuit breaker 4
12a 189-0320 Key switch 1
12b 273-0073 2 position paddle switch 1
13a 189-0318 24V solenoid 4 post (2 large 2 small) 2
13b 991-1226 24V solenoid 4 post (2 large 2 small) 2 (NON-OEM)
14 173-2472 Nut 10-32 with star washer 4
15 999-0548 Washer 5/16 external star lock stainless steel 4
17 173-3912 Washer .344 x .066 flat head (OBSOLETE) 2
18 173-8247 Electric panel back plate 1
19 173-1521 Spacer 2
20 189-0313 24V motor controller 1
21 999-0151 Nut 8-32 nylon insert lock zinc plated 2
22 173-8361 Circuit board with potentiometer (OBSOLETE) 1
23 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2
24 173-1520 Nylon standoff 4
25 173-1145 Insulated stand-off 2
26 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
27 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 2
28 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
29 173-1519 50amp shunt 1
30 189-0316 24V battery charger meter 1
31 991-1624 3amp circuit breaker 1
32 999-0304 Nut 1/4-20 nylon lock jam stainless steel 6
33 173-0471 Switch (OBSOLETE) 1
34 189-0312 3/8 inch circuit breaker boot 1
35 173-3958 Key (pkg of 2) 1
36 173-1523 Potentiometer 1
37 999-0148 Washer #6 external star lock zinc plated 2
38 999-1158 Washer #6 flat stainless steel 2
39 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 2
40 999-0306 Nut 1/4-20 wing zinc plated 2
41 173-1164 Meter retaining plate 1
42 173-4344 Meter gasket 1
43 173-8248 Spacer 2
44 173-1160 LED hour meter 1
45 173-3132 22 inch wire (red) 2
46 173-3136 14 inch wire 76011 x 76040 (black) 1
47 173-4358 Switch gasket 3
48 189-0321 3 position rocker switch 1
