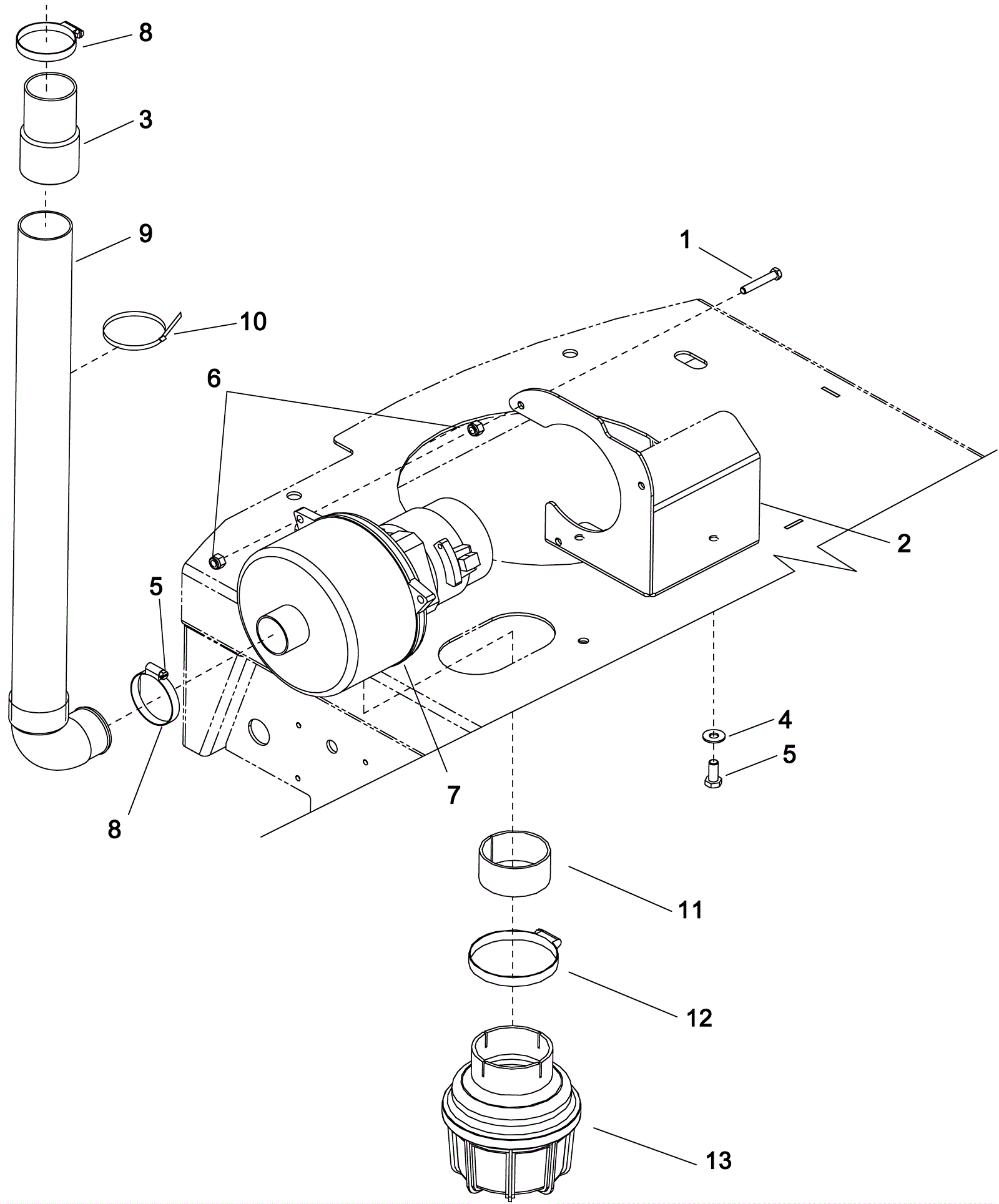

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0748
|
Screw 1/4-20 x 1 1/2 flat head phillips zinc plated |
3 |
|
|
2 |
273-1083
|
Mounting bracket |
1 |
|
|
3 |
993-0014
|
CUFF, HOSE 1.5 inch BLK A 2161 |
1 |
|
|
4 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
5 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
6 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
7a |
173-0402
|
36V 3 stage vacuum motor assembly |
1 |
(Windsor) |
|
7b |
991-1202-P
|
36V 3 stage vacuum motor tangential with Packard plug |
1 |
(NON-OEM) |
|
7c |
173-4347
|
Carbon brush (pkg of 2) (OBSOLETE) |
1 |
|
|
8 |
273-5693
|
Hose clamp |
2 |
|
|
9 |
273-1084
|
Vacuum hose (black) (OBSOLETE) |
1 |
|
|
10 |
173-3169
|
Wire tie |
3 |
|
|
11 |
173-8341
|
Tube |
1 |
|
|
12 |
997-2003
|
Hose clamp |
1 |
|
|
13 |
173-4106
|
Vacuum motor muffler |
1 |
|
|
