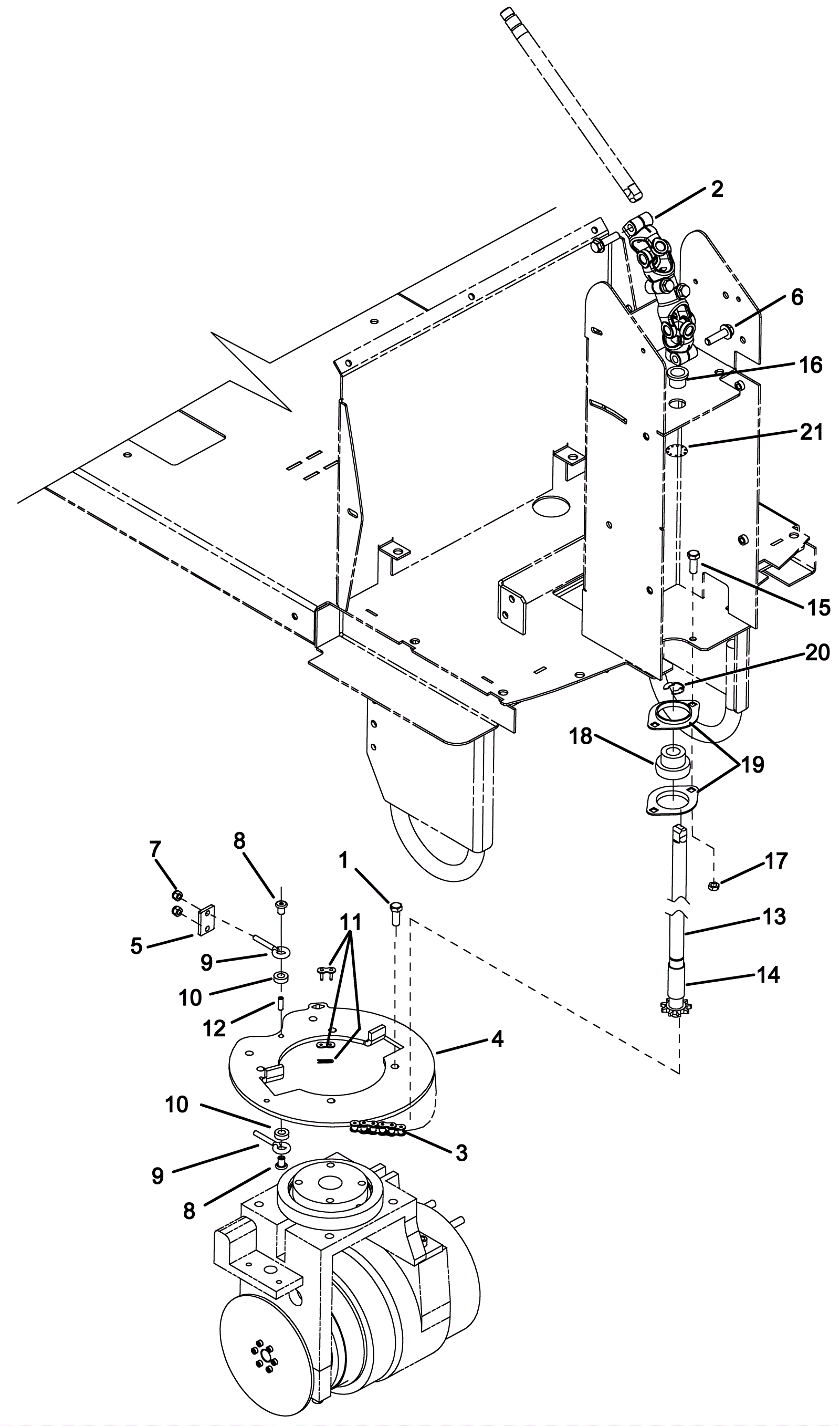

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
4 |
|
|
2 |
273-1062
|
Double joint |
1 |
|
|
3 |
273-1063
|
Chain |
1 |
|
|
4 |
273-1064
|
Steering plate |
1 |
|
|
5 |
273-1065
|
Chain tension plate |
1 |
|
|
6 |
N/A
|
Not available |
4 |
(Screw) |
|
7 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
8 |
173-8380
|
Nut 1/4-20 x 12 hex barrel (OBSOLETE) |
2 |
|
|
9 |
999-1397
|
Bolt 1/4-20 x 2 eye zinc plated |
2 |
|
|
10 |
173-9641
|
Spacer |
2 |
|
|
11 |
173-1065
|
Master link #40 1/2 chain |
2 |
|
|
12 |
999-1398
|
Screw 1/4-20 x 3/4 set stainless steel |
1 |
|
|
13 |
273-1069
|
Lower shaft |
1 |
|
|
14 |
273-1070
|
Spacer |
1 |
|
|
15 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
16 |
173-7161
|
Flanged bearing |
1 |
|
|
17 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
18 |
173-5558
|
3/4 inch ball bearing |
1 |
|
|
19 |
173-3536
|
Flanged bearing |
2 |
|
|
20 |
173-3445
|
Ring clip |
1 |
|
|
21 |
173-0928
|
Nut 7/8 pushlock |
1 |
|
|
