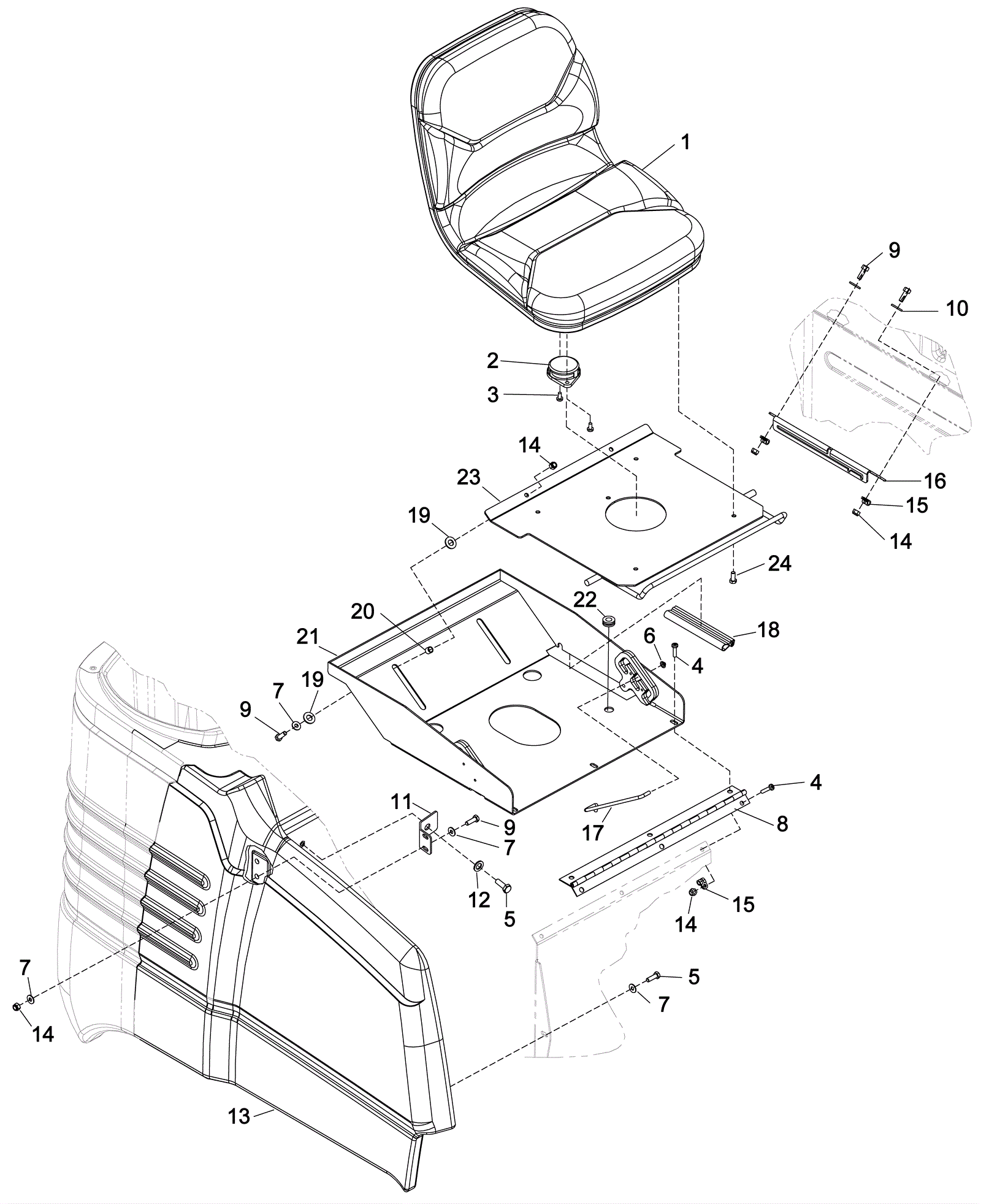

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-3359
|
Super surburban vinyl seat |
1 |
|
|
2 |
273-1039
|
Seat switch (OBSOLETE) |
1 |
|
|
3 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
|
4 |
999-1146
|
Screw 5/16-18 x 3/4 truss head phillips stainless steel |
6 |
|
|
5 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
6 |
173-8413
|
Nut 1/4 cap |
1 |
|
|
7 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
7 |
|
|
8 |
273-1040
|
Hinge |
1 |
|
|
9 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
6 |
|
|
10 |
999-1094
|
Washer 5/16 bonded sealing stainless steel |
2 |
|
|
11 |
273-1041
|
Side cover bracket |
1 |
|
|
12 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
1 |
|
|
13 |
273-1042
|
Side cover |
1 |
|
|
14 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
7 |
|
|
15 |
173-3257
|
1/4 cushioned clamp |
3 |
|
|
16 |
273-1043
|
Prop rod bracket |
1 |
|
|
17 |
173-5235
|
Prop rod |
1 |
|
|
18 |
273-1044
|
Seat deck edging |
1 |
|
|
19 |
999-0566
|
Washer 1/2 flat nylon |
4 |
|
|
20 |
173-1591
|
Spacer |
2 |
|
|
21 |
273-1045
|
Seat slide plate |
1 |
|
|
22 |
173-3550
|
Grommet |
1 |
|
|
23 |
273-1046
|
Rod plate assembly |
1 |
|
|
24 |
999-1207
|
Screw 5/16-18 x 2 1/2 hex head stainless steel |
4 |
|
|
